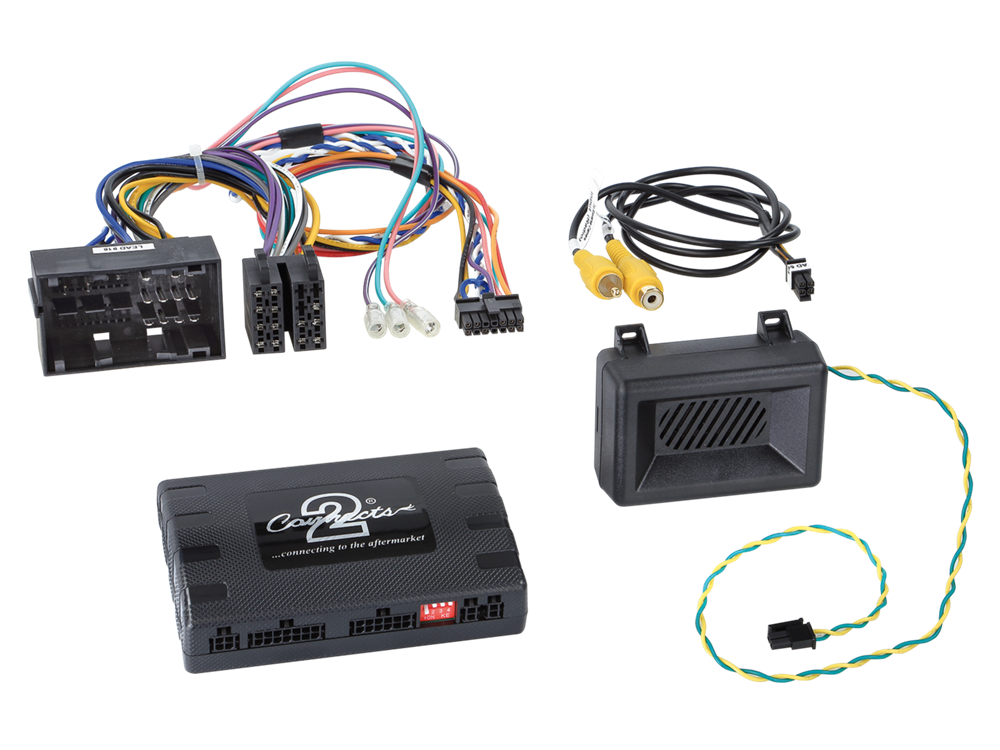

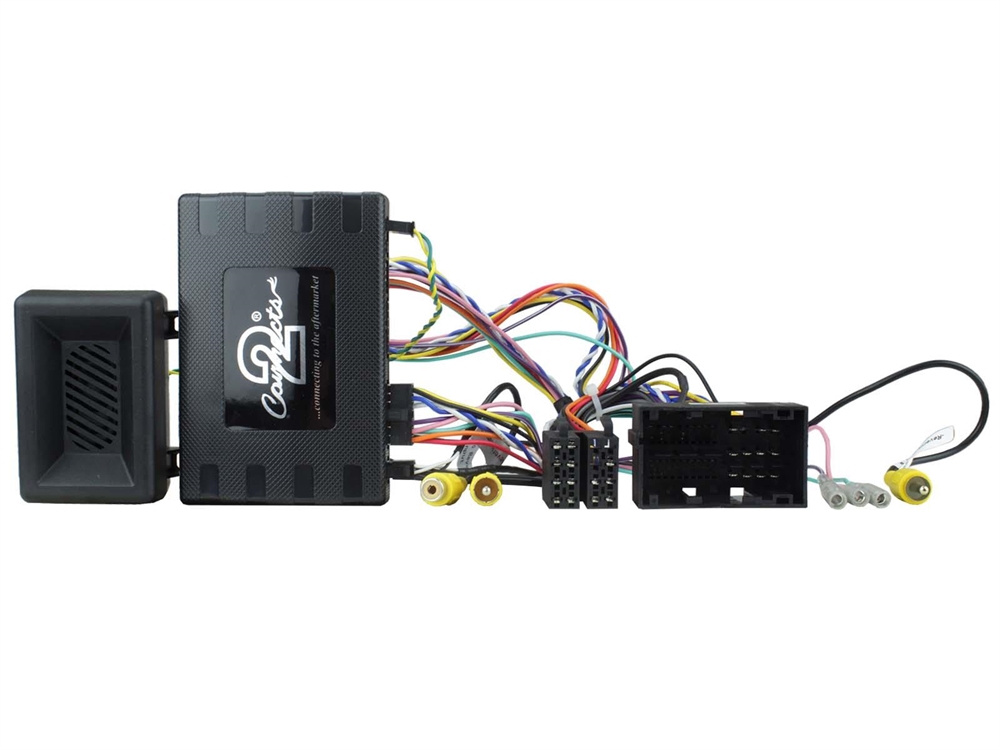

RAT INTERFACE (INFOADAPTER) TIL FIAT 500X 2015 >

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen. Specielt interface til FIAT som både understøtter ratbetjening, samt visning af eventuel originale parkeringssensorer og klimavisning på en eftermarkedsenhed med indgang for bakkamera. Passer til følgende modeller:

Note:

vehicles with SWC

connector: 52 Pin Fiat

vehicles with phone and speech buttom

driver assistance system not supported

to enter settings connect the reverse signal output (purple/white) to HU
for visualisation of the settings connect and configure the rear view camera input of the HU

setting VP1 OEM HU:
when the Odometer is flashing:
you will need to enter the menu of the Infodapter.
press and hold the speech button for a few seconds
from main menue go to Infodapter settings
Preferences
Config Menu
there try several Settings from 0 - 3
(most used Setting 2, please try first)
After changing the setting you need to restart the interface - don't cut the power supply and let the car go to rest for 15 - 20 Minutes. This will allow the interface to sents a fresh command to the vehicle

Vehicle application:

Fiat 500X (ZAF 334) 01/2015 - 08/2018
Fiat 500X (ZAF 334) 09/2018 - 2022

Following signals are provided:

Ignition
Illumination
Reverse
Speedpulse
Parkingbreak

SWC

vehicle settings

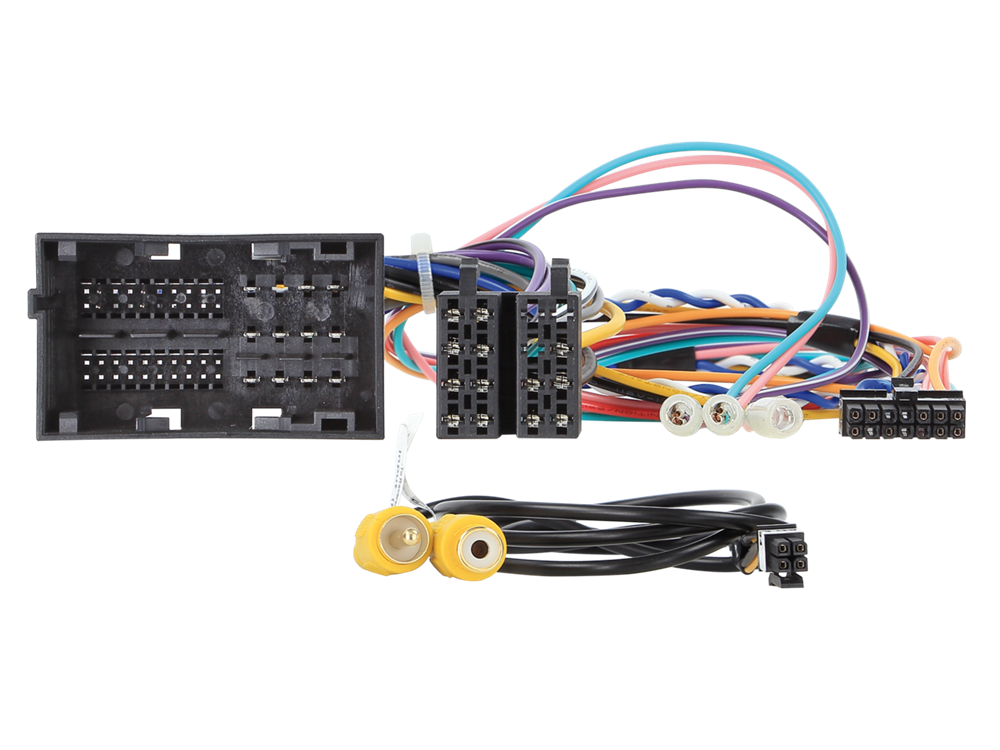

Der skal bruges et af nedennævnte kabler
