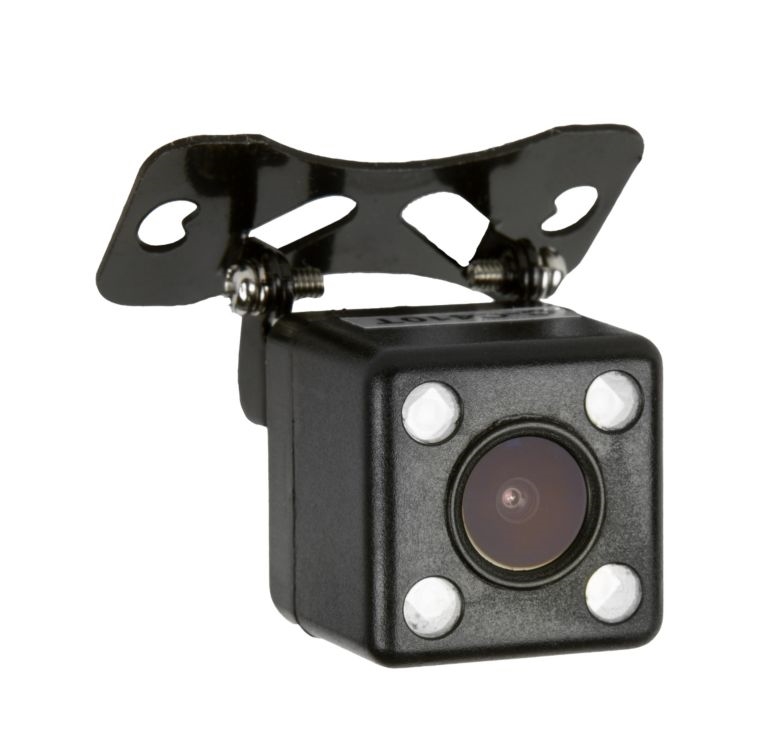

R-C10-RV1 Universal rear view camera
The RADICAL rear view camera R-C10-RV1 is developed for universal use, allowing retrofitting of a great variety of vehicles due to its extremely compact housing shape. The vertical image section can be adjusted manually on the camera body.
The R-C10-RV1 is compatible with a wide variety of 2-DIN A/V receivers of the aftermarket and the RADICAL product line up.
Key features
Compact universal rear view camera
Automatic day and night mode with night vision IR LEDs
Separable 2-part system cable, with cable parts of 6.0 m + 2.0 m length
Manual adjustment of vertical image section on the camera body
12 V Power supply optional on camera or device side
Specifications
Image device
1/4” / 6.4 mm H7440H CMOS sensor
Lens focal length
f1.6
TV system
PAL/NTSC
Viewing angle
130° diagonal, 100° horizontal, 75° vertical
Native sensor resolution
733 (H) x 493 (V) pixels
Resolution of video-out
> 600 TV lines
Frame rate
60 frames/sec.
Signal to noise ratio
> 45 dB
Video output
1.2 Vp-p, 75 ohms CVBS
White balance
Auto
Backlight compensation
Auto
Gain control
Auto
Sync system
Auto
Power supply
DC 12 V
Current consumption
65 mA (DC 12V) / ≤ 780 mW
IP protection rating
IP68
Operating temperature
-15° C ~ +60° C
