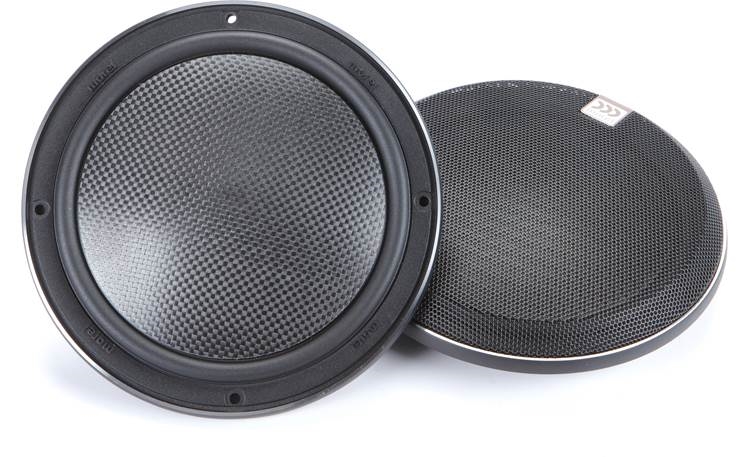

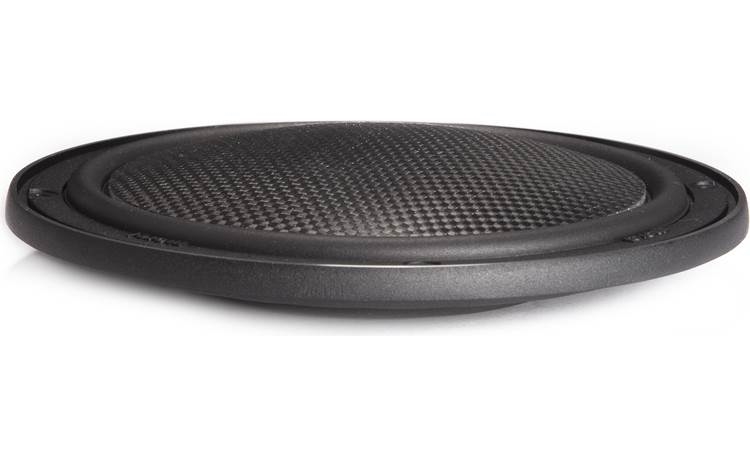

MOREL MW6 VIRTUS NANO CARBON MELLEMTONER

We do not believe in one size fits all approach. This philosophy triggered the development of the Virtus Nano. It represents the essence of our innovative quest to push acoustic and mechanical boundaries and offer practical solutions to car audio enthusiasts. The Virtus nano series offers a new benchmark level in a two, three-way component and point source systems. (Registered U.S Pat. No. 11,057,696)

The Virtus Nano Integra leverages morel’s Integra design concept and the newly developed Nano technology design to offer a point source solution. Its innovative design a great balance of tonality and sound dispersion in very small form factor.

VIRTUS NANO MW6
Nominal Impendance (ohm) 4 4
Power Handling Wrms 100
Max. Trans. Pwr Handling Wrms 300
Sensitivity (2.83 V/1M) dB 87
Frequency response Hz 50 - 5050
Resonant Freq. Fs Hz 68 73
Voice Coil Diameter mm (inch) 54 (2.16)
Voice Coil Height mm (inch) 9.5 (0.4
Voice Coil Type/Former Titanium
Voice Coil Wire Hexatech™ Aluminium
DC Resistance (ohm) 3
Voice Coil Induct. @1 kHz (mH) 0.17
Magnet System Neodymium Vented
HE-Magnetic Gap Height mm (inch) 4 (0.16)
BL Product/BXL 3.85
Max. Linear Ex./Xmax mm (inch) ±3mm (0.12)
Electrical Q Factor QES 0.97
QTS 0.65
QMS 1.98
Moving Mass MMS - gr/ounce 14 (0.49)
Equiv. Can Air Load VAS - L (cu.ft3) 11 (0.38)
Effective Piston Area SD sq.cm (sq.inch) 139 (21.545)
Cone Type Carbon Cone
Cone Material Carbon + Foam Core
Unit Diameter mm(inch) 6.5 (0.216)
Mounting Depth mm (inch) 17 (0.7)
Mounting Cutout 137 (5.48)
Net Wight gr 450
