MOREL MT300 HYBRID DISKANTER

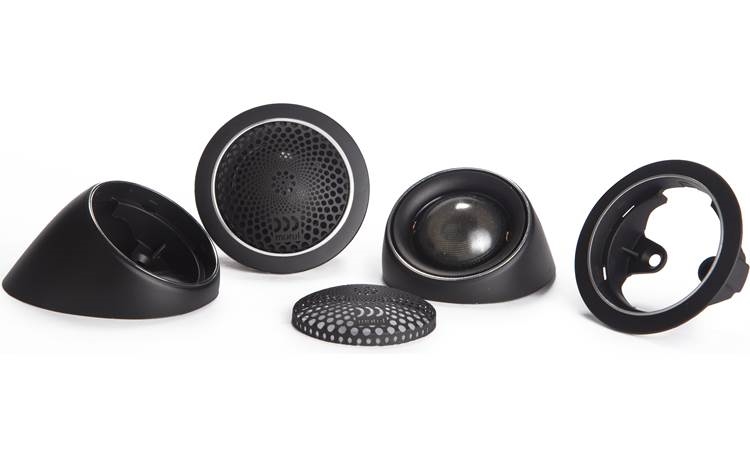

The new generation Hybrid tweeter offers unrivaled high-frequency performance in a compact design with incredible high power handling capabilities at very low distortion levels. Known as the MT300, its design uses Morel’s signature Acuflex hand-coated coated 28mm soft dome, Hexatech aluminum voice coil, and dual neodymium motor technologies. While its size allows it to be fit in most factory locations, surface and flush mount options with a beautiful lotus grille provide an elegant look fitting for modern vehicles.

MT300
Nominal Impendance (ohm) 6
Power Handling Wrms 130
Max. Trans. Pwr Handling Wrms (10ms) 350
Sensitivity (2.83 V/1M) dB 93
Frequency Response Hz 1600-25000
FS Hz 1000
Voice Coil Diameter mm (inch) 28 (1.125)
Voice Coil Former Aluminium
Voice Coil Wire Hexatech™ aluminium
DC Resistance ohm 5.2
Magnet System Double Magnet Neodymium
Dome Type Acuflex™ hand coated soft dome
Dome Material Silk
Unit Diameter mm (inch) 43.00 (1.69)
Mounting Dept mm (inch) 13.20 (0.52)
Mounting Cutout mm (inch) 47.00 (2.00)
Net Weight Kg (lb) 0.067 (0.134)
