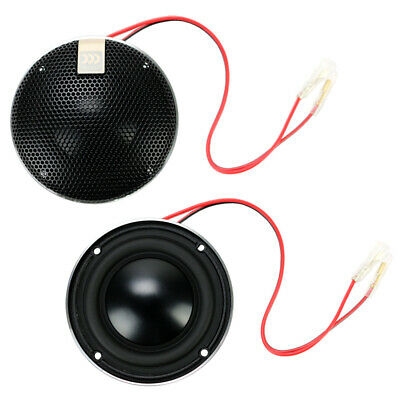

MOREL MM2 VIRTUS NANO MELLEMTONER

The Virtus nano MM2 was engineered following the same design philosophy that makes the shallow Virtus nano Carbon speakers special. Using a dome shape, the anodized space-age aluminum alloy cone offers a great mass-to-stiffness ratio, high damping characteristic, and a consistent on-to-off axis response to ensure a very rich, dynamic midrange at very low distortion levels regardless of the mounting location. The 20mm copper voice coil and the powerful double neodymium EVC motor design give this compact midrange great efficiency and high power handling to keep pace with almost any system. Wrapped up in a compact chassis with a mounting depth of less than 10mm (0.4″), the Virtus nano MM2 is the perfect fit for many factory speaker locations as well as compact, custom speaker applications.

SPECIFICATIONS
MM2
Nominal Impendance (ohm) 4
Power Handling Wrms 60
Max. Trans. Pwr Handling Wrms (10ms) 100
Sensitivity (2.83 V/1M) dB 83
Frequency Response Hz 200-5000
Fs Hz 145
Voice Coil Diameter mm (inch) 20 (0.78)
Voice Coil Former Kapton
Voice Coil Wire Copper
DC Resistance ohm 3.2
Magnet System Double Magnet Neodymium
Dome Type Aluminium Formed Dome
Dome Material Aluminium Anodized
Unit Diameter mm (inch) 76.7 (3.00)
Mounting Depth mm (inch) 9.3 (0.37)
Mounting Cutout mm (inch) 69 (2.7)
Net Weight Kg (lb) 0.7 (1.54)
