MOREL ELATE CARBON MW6

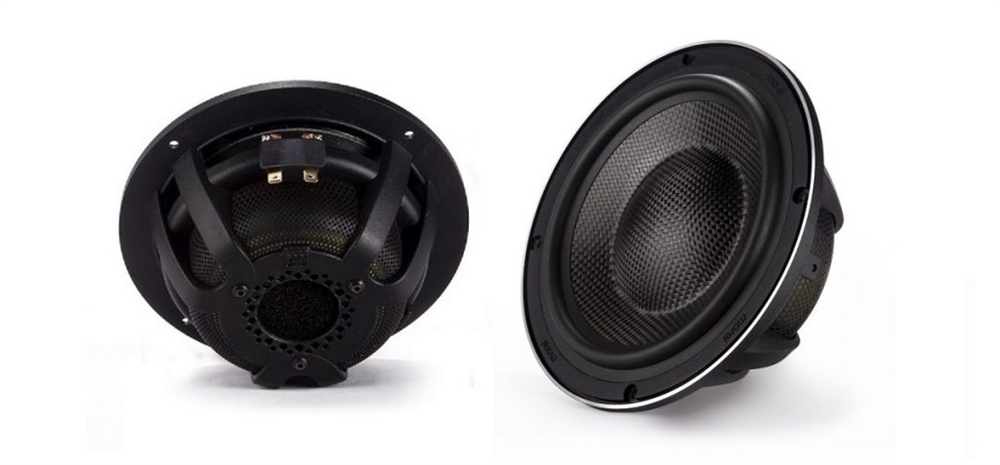

Elate Carbon MW6
Not all drivers are created equal, and the visually inspiring Elate Carbon woofers were developed with next level performance in mind. These new drivers get their Carbon moniker from their triple layer cones from which they are derived, consisting of two layers of carbon fiber sandwiching a Rohacell foam core. These proprietary cones were developed to give them incredible stiffness, high damping and light weight—the trifecta for cone performance.

Paired with a large 3-inch diameter Hexatech aluminum voice coil, titanium former, and Morel’s EVC motor technology, the Elate Carbon achieves remarkable control and low distortion. which translates to highly transparent and bass-rich sound reproduction.

Few speakers can match the midrange purity and rich bass performance of the Elate Carbon Pro woofers.

Specifications
Reference Series MW6
Configuration Midbass Woofer
Power Handling 180 W/RMS Max. 1000 W/RMS
Nominal Impedance 4 ohms
Sensitivity 87 dB
Frequency Resp. 30- 4,000 Hz
Resonant Freq. FS Hz 45
Voice Coil Size 75 mm
Voice Coil Height 14.5 mm
Voice Coil Former Titanium
Voice Coil Wire Hexatech aluminium
DC Resistance 3 6 ohms
Voice Coil Induction 0.615 @ 1 kHz (mH)
Magnet System Double Magnet Rear Vented
HE-Magnetic Gap Height 5 mm
B-Flux Density (T) 0.75
BL Product /BXL 6.51
Max Linear XMax +/- 4.75 mm
Magnet System Neodymium Rear Vented
Suspension Compliance CMS 0.67 mm
Electrical Q Factor QES 0.47
QTS 0.43
QMS 7.19
Mech. Resist.RMS-N.S/M 1
MMS (Grams) 18
Equiv. Can Air Load VAS-L 13.3
Effect. Piston Area SD sq.cm 120
Cone Type One-piece formed
Dome Material DPC
Unit Diameter 165 mm
Mounting Depth 61 mm
Mounting Cutout 141 mm
Net Weight 1.05 Kg
Speaker Grills Lotus Grills Included
