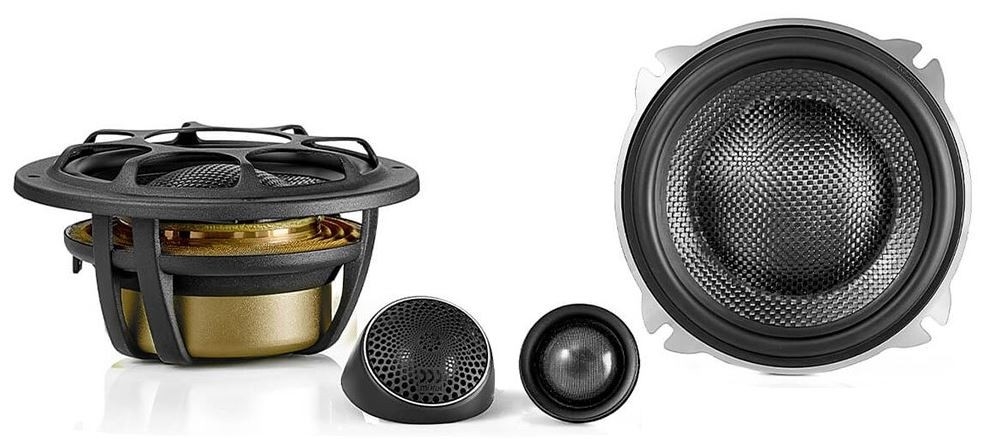

Elate Carbon 52A
The Elate Carbon shares most of its high-end components with its Pro siblings, yet takes a slightly more sensible approach. These 2-way systems were designed for those who want the ultimate performance but are looking for a discreet tweeter. The compact design of the MT450 tweeter allows users the option to place the speaker in most factory locations, or into space-limited areas using the supplied mounts. It may be small in size, but the MT450’s Acuflex coated silk dome, open cavity design and dual neodymium magnet motor give it amazing detail and a silky-smooth, flat frequency response.
The Elate Carbon would not be complete without exercising their power. Whether using a 5.25”, 6.5” or 9-inch system, each of the woofers feature Klipple optimised EVC motors with large 3-inch diameter voice coils and carbon fibre/Rohacell sandwich cones for ultra-low distortion and high power handling levels.
The vast feature set and design of the new Elate Carbon allow them to blow away your every expectation.
Specifications
Reference Series Elate Carbon 52A
Configuration 2-Way Active Split system
Driver Size 133 mm (W), 69 mm (T)
Voice Coil Size 75 mm (W) 28 mm (T)
Frequency Resp. 40 Hz - 25,000 Hz
Crossover MTX 280C Sold Separately
2way, Bi Wire / Amp, with -/+ 2dB T/adj.
Power Handling 160 W/RMS 1000 W/Peak
Sensitivity 85 dB
Impedance 4 ohm
Speaker Grills Lotus Grills Included
