MOREL ELATE CARBON 53A 3-VEJS AKTIV

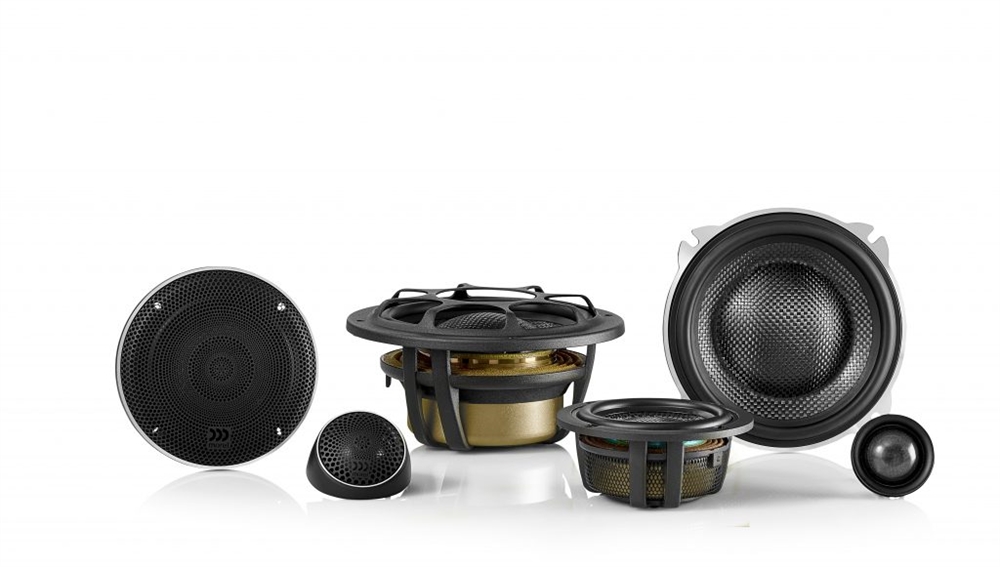

Elate Carbon 53A
The Elate Carbon shares most of its high-end components with its Pro siblings, yet takes a slightly more sensible approach. These 2-way and 3-way systems were designed for those who want the ultimate performance but are looking for a discreet tweeter. The compact design of the MT450 tweeter allows users the option to place the speaker in most factory locations, or into space-limited areas using the supplied mounts. It may be small in size, but the MT450’s Acuflex coated silk dome, open cavity design and dual neodymium magnet motor give it amazing detail and a silky-smooth, flat frequency response.

All Elate Carbon 3-way systems receive the all new MM3 3.5″ cone midrange. This small midrange uses the best of Morel’s technology, including EVC motor, high power 2.1” diameter voice coil, and highly damped carbon- fibre/Rohacell cone, allowing it to play lower in frequency and with greater control than most 4.5” speakers. It also handles some serious power. These attributes drastically improve system performance while enabling them to fit in most factory midrange locations.

The Elate Carbon would not be complete without exercising their power. Each of the woofers feature Klipple optimized EVC motors with large 3-inch diameter voice coils and carbon fiber/Rohacell sandwich cones for ultra-low distortion and high power handling levels.

The vast feature set and design of the new Elate Carbon allow them to blow away your every expectation.

Specifications
Reference Series Elate Carbon 53A
Configuration 3-Way Split system
Driver Size 133 mm (W) 100 mm (M), 43 mm (T)
Voice Coil Size 75 mm (W) 54 mm (M) 28 mm (T)
Frequency Resp. 40 Hz - 25,000 Hz
Crossover Active system - MTX 380C Sold Separately
MTX 380C - 3-way, Bi Wire / Amp, Tweeter & Mid adj.
Power Handling 160 W/RMS 1000 W/Peak
Sensitivity 87 dB
Impedance 4 ohm
Speaker Grills Lotus Grills Included
