MOREL ELATE CARBON ALTO

Elate Alto

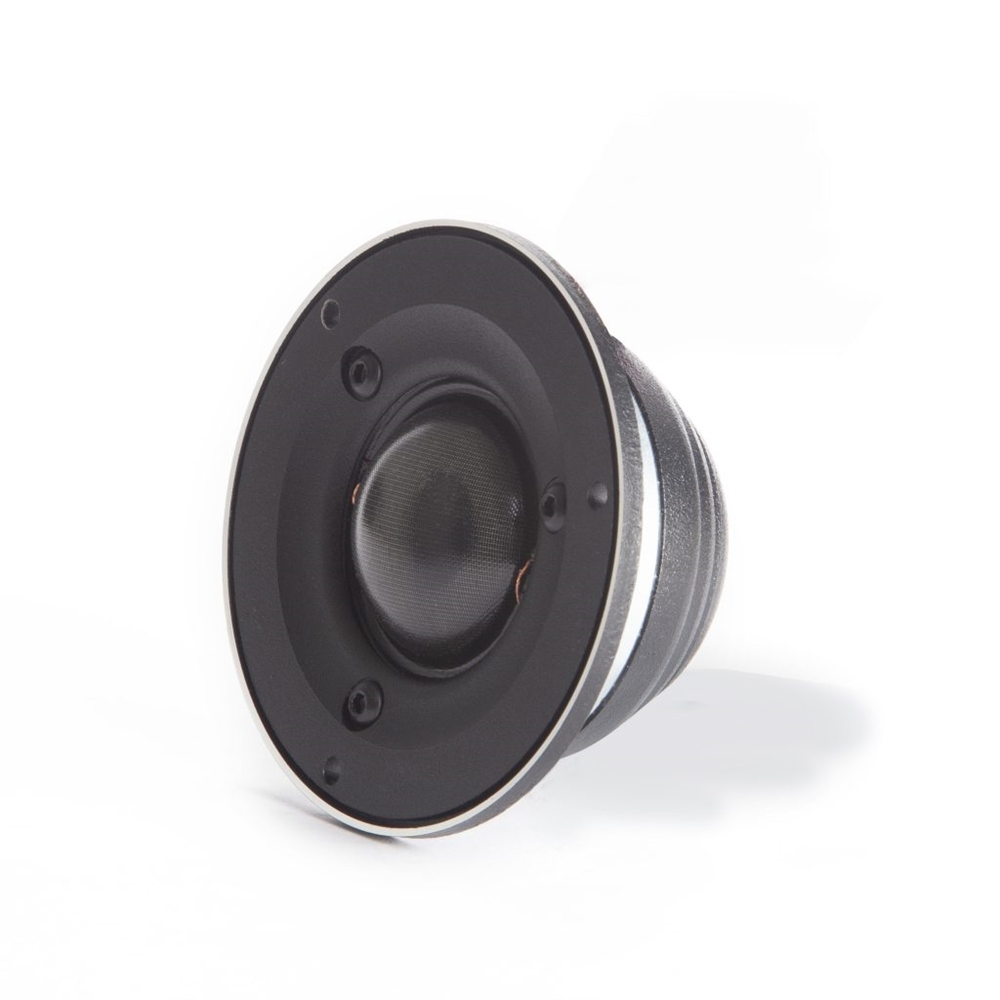

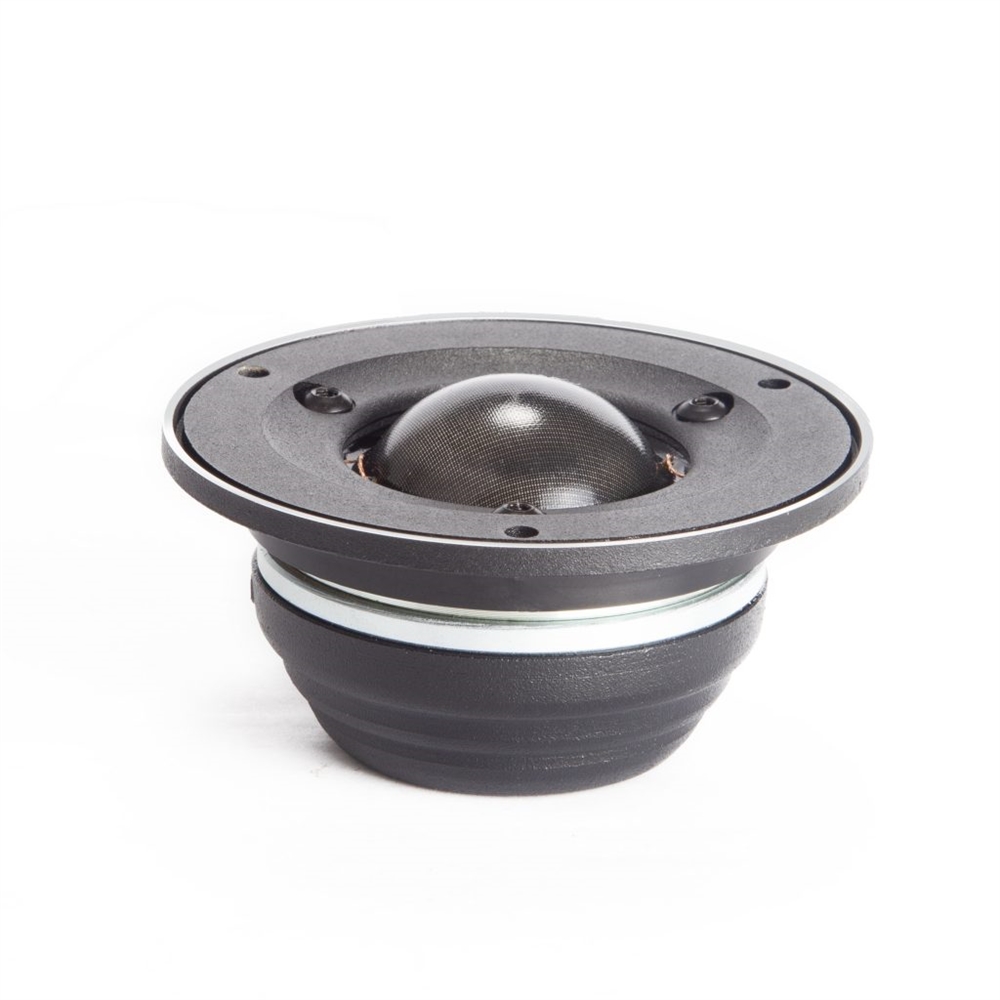

Sharing its mechanics with the Supremo Piccolo, the new Elate Alto tweeter embodies the best of Morel’s technologies giving a higher level of performance to the Elate Carbon Pro systems. The hand-coated Acuflex 28 mm diameter soft dome, Hexatech aluminium voice coil, and a powerful neodymium magnet with a specially designed damped rear chamber allow it to achieve a staggeringly low 800 Hz resonance point and flat response. The Elate Alto can be used with a very low crossover point while obtaining incredible realism and transparency for a highly accurate sound-stage.

Specifications
Reference Series Alto
Configuration Tweeter
Power Handling 220 W/RMS
1000 W/RMS Max. Trans. Pwr. (10 ms)
Nominal Impedance 6 ohms
Power Handling 130 W/RMS
Sensitivity 91 dB
Frequency Resp. 1400-25,000 Hz
FS Hz 900
Voice Coil Size 28 mm
Voice Coil Former Aluminium
Voice Coil Wire Hexatech aluminium
DC Resistance 5.2 ohms
Magnet System Neodymium Rear Vented
Dome Type Acuflex - Hand coated soft dome
Dome Material Silk
Unit Diameter 67 mm
Mounting Depth 32 mm
Mounting Cutout 55 mm
Net Weight 0.35 Kg

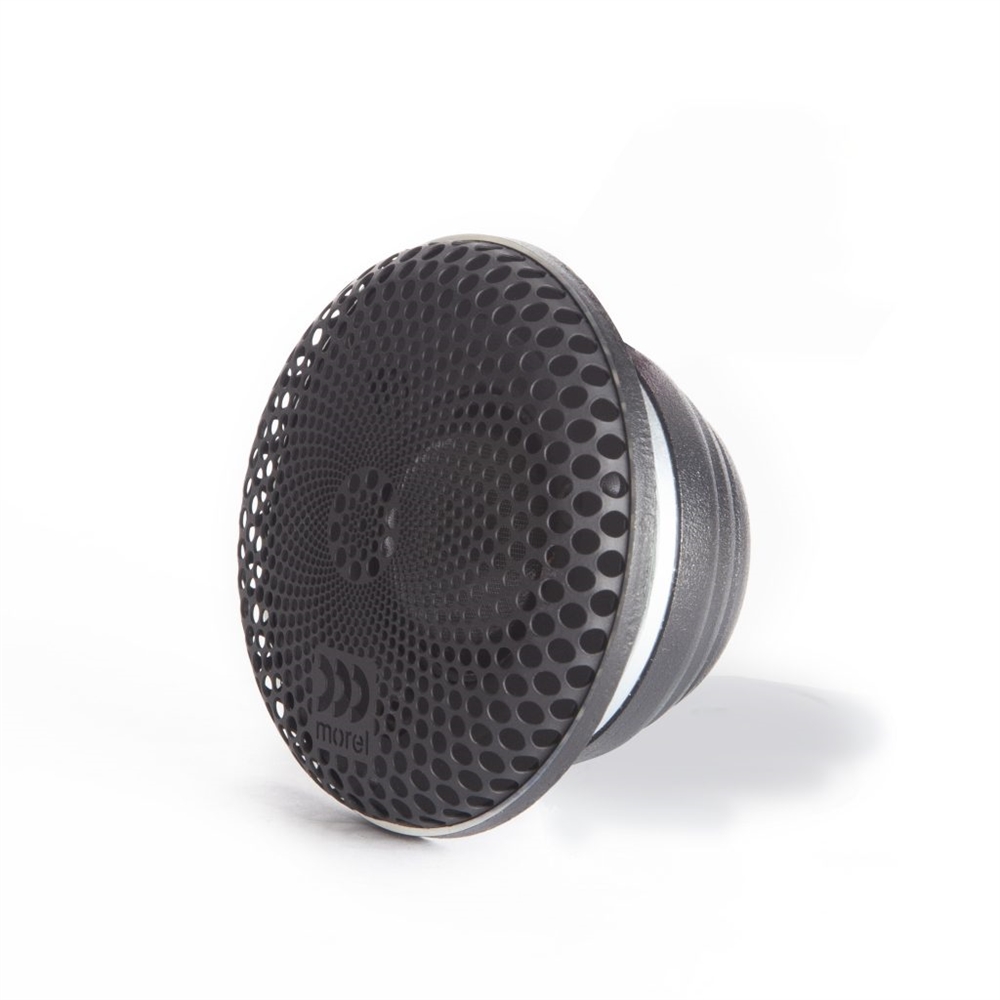

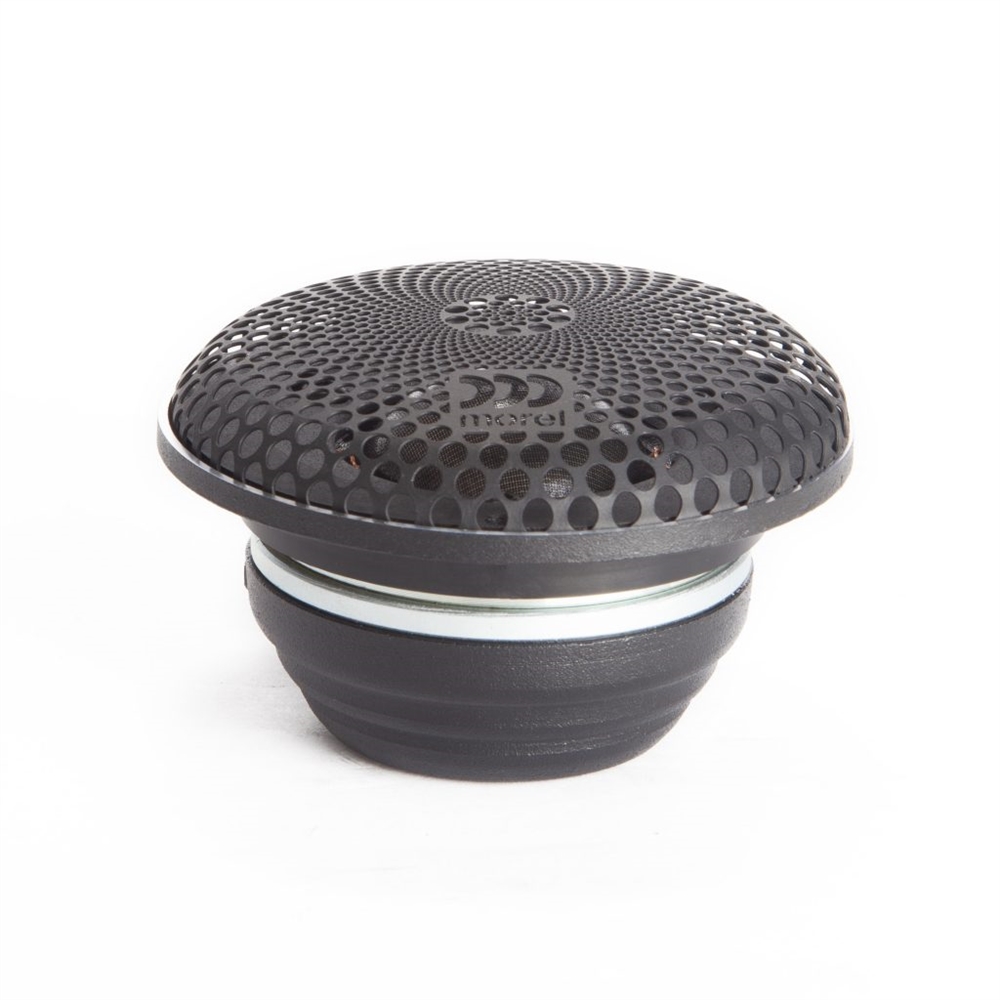

Speaker Grills Lotus Grills Included
