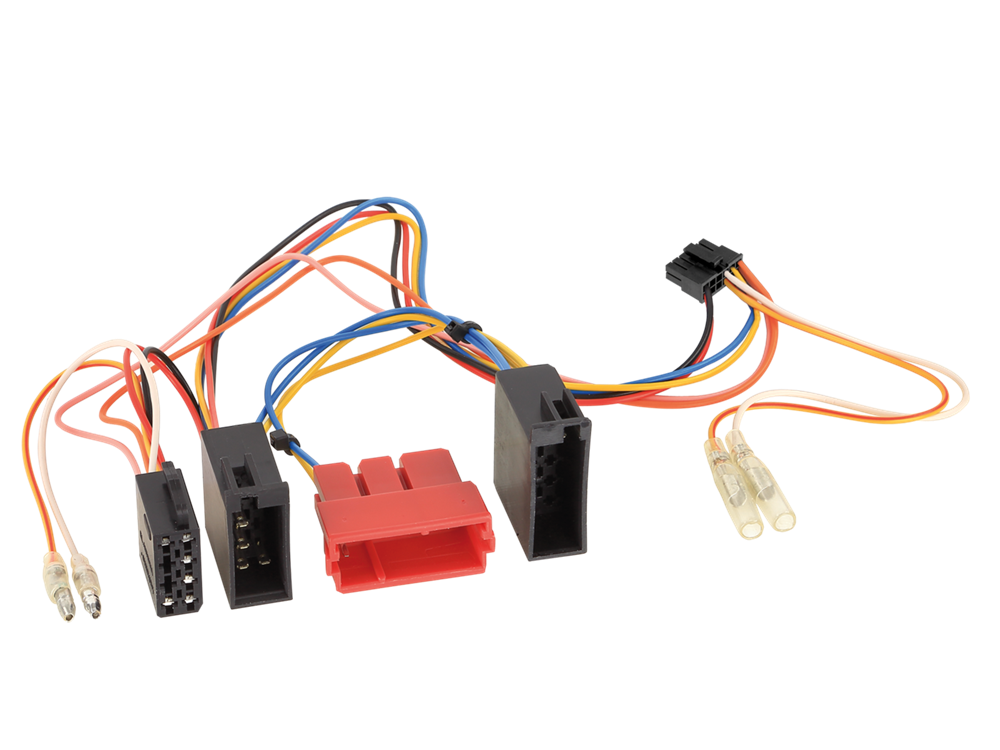

Varenr.: 42cx26
På lager hos os Download manual
connector: Mercedes Iso og 10 samt 20 pin iso
Note:
harness: 42cx401/42cx402/can-uni 01
vehicles with Audio 5 / Audio 10 1-DIN OEM HU
vehicles with Audio 30 APS 1-DIN OEM Sat Nav
vehicles VW Crafter with RCD 2001 1-DIN OEM HU
vehicles Mercedes / VW with open dash > check connection and assignment before installation with OEM HU:
brown-red twisted: CAN high
brown twisted: CAN low
CAN Bus in CAN Bus distributor under sill cover
CAN Bus at climatronic
CAN Bus in Mini ISO connector: Pin 1 Can low / Pin 2 Can high
CAN Bus in 8 Pin power connector: Pin 7 CAN High / Pin 6 CAN low
CAN Bus in 18 Pin AMP connector: Pin 8 CAN low / Pin 9 CAN high / not Robert Bosch CAN
OEM HU with ISO block connector:
ISO extension harness speaker 10cm> iitem: 1322-02
Vehicle application:
Mercedes A-class (W169) 10/2004 - 04/2012
Mercedes A-class (C169) 11/2004 - 07/2011
Mercedes B-class (T245) 06/2005 - 06/2011
Mercedes C-class (W203) 03/2000 - 01/2005
Mercedes CLK-class (C208) 07/1999 - 03/2003
Mercedes CLK-class (C209) 03/2002 - 05/2005
Mercedes E-class (W210) 06/1999 - 12/2002
Mercedes SL-class (R230) 08/2001 - 02/2006
Mercedes SLR (C199) 13/2003 - 12/2009
Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018
Mercedes Vito/Viano (W639) 07/2003 - 08/2010
Mercedes Vito/Viano (W639) 09/2010 - 03/2014
VW
VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016
