Varenr.: 42cx27
På lager hos os
Download manual

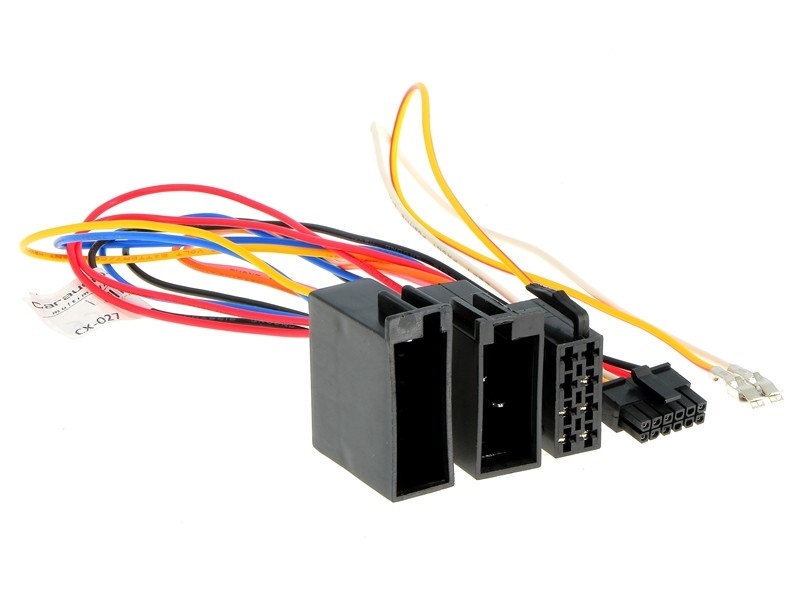

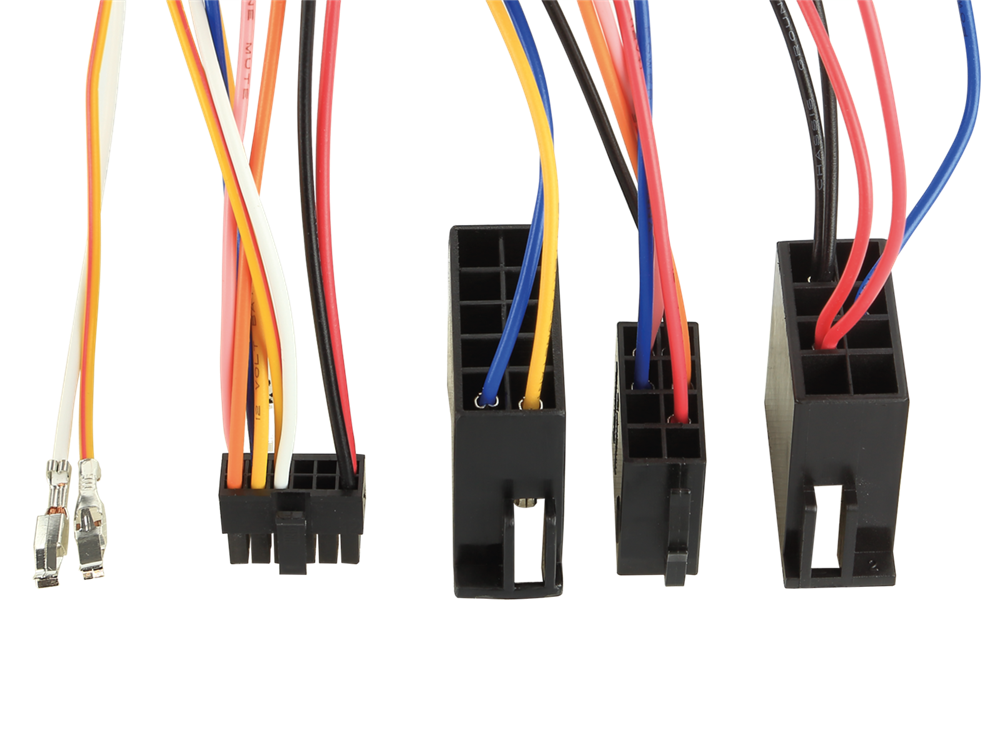

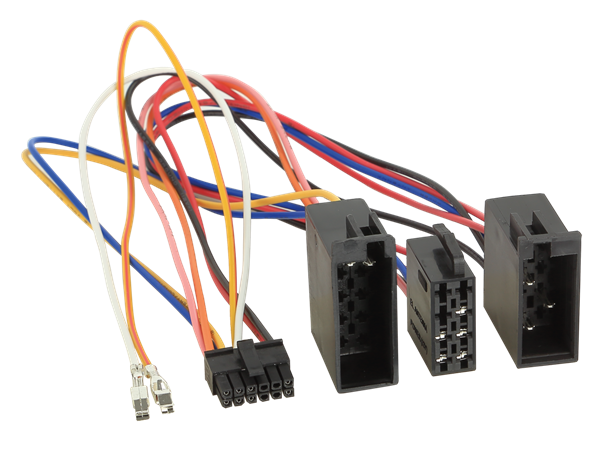

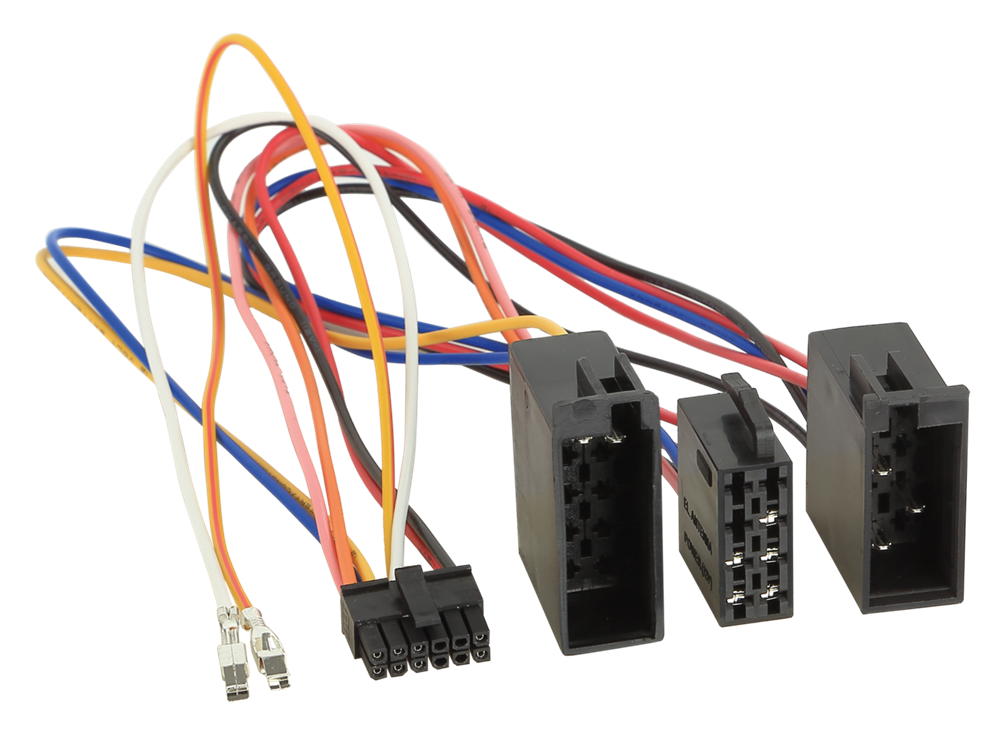

connector: Mercedes Iso og 10 pin iso
connector: ISO / 10 Pin ISO
white: +12V reverse gear signal 1,5A max.
yellow/green yellow/red: speed pulse signal
vehicles with different comfort interior CAN bus connection:
yellow: CAN high
blue: CAN low
brown-red twisted: CAN high
brown twisted: CAN low
CAN Bus in CAN Bus distributor under sill cover
CAN Bus at climatronic
CAN Bus in Mini ISO connector: Pin 2 CAN high / Pin 1 CAN low
CAN Bus in 8 Pin power connector: Pin 7 CAN high / Pin 6 CAN low
vehicles with Comand 2.0 OEM Sat Nav:
CAN Bus in 18 Pin AMP connector: Pin 9 CAN high / Pin 8 CAN low / not Robert Bosch CAN
OEM HU with ISO block connector:
ISO extension harness speaker 10cm> item: 1322-02
vehicles with 10 Pin ISO / ISO speaker connector OEM amplified system without B2B optical system OEM amplified system:
Active system adapter different vehicles ISO>ISO > item: 13-1190-50
Use case:
vehicle-specific wiring harness
Vehicle application:
Mercedes A-class (C169/W169) 10/2004 - 04/2008
Mercedes A-class (C169/W169) 06/2008 - 06/2012
Mercedes B-Klasse (T245) 07/2005 - 04/2008
Mercedes B-Klasse (T245) 04/2008 - 09/2011
Mercedes C-class (CL203/S203/W203) 03/2000 - 01/2005
Mercedes CLK-class (W208) 07/1999 - 03/2003
Mercedes CLK-class (W209) 03/2002 - 05/2005
Mercedes E-class (S210/W210) 06/1999 - 02/2002
Mercedes SL-class (R230) 08/2001 - 02/2006
Mercedes SLR (C199) 12/2003 - 12/2009
Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018
Mercedes Vito/Viano (W639) 07/2003 - 08/2010
Mercedes Vito/Viano (W639) 09/2010 - 03/2014
