MERCEDES AUDIO GATEWAY TIL ISO FORLÆNGER 2,5 M

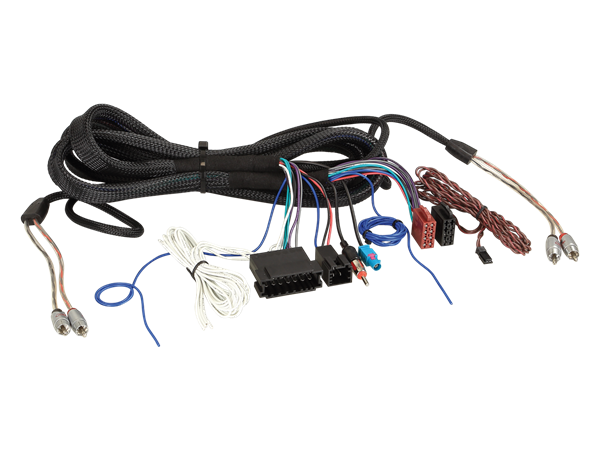

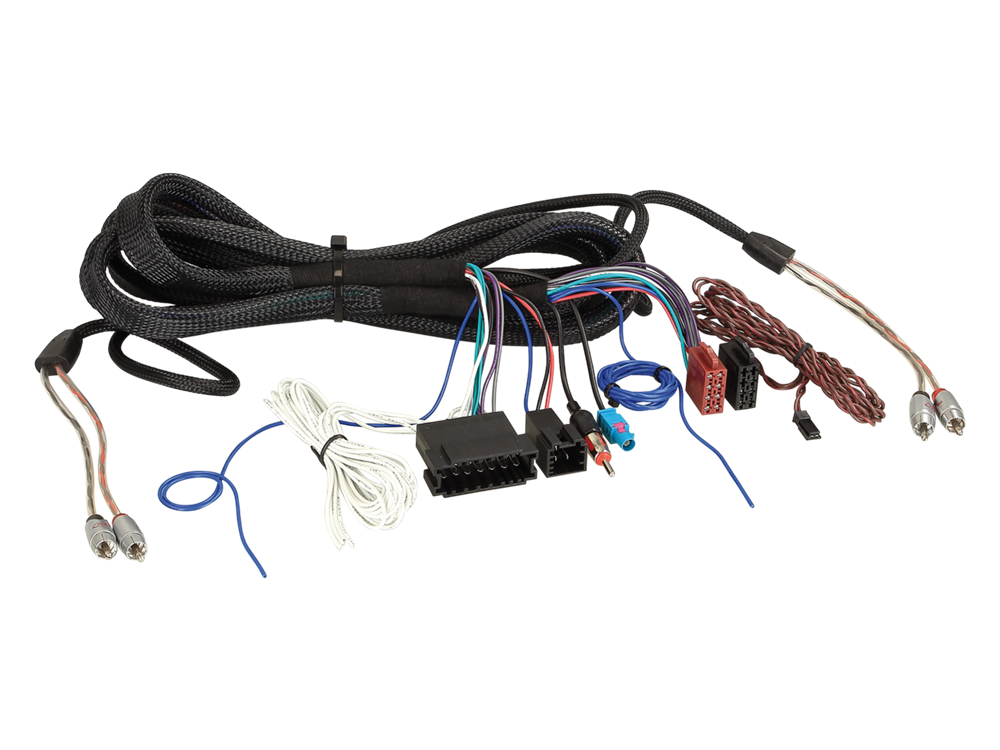

Harness Extension Kit Mercedes Audio Gateway 2.5m

including DIN antenna cable extension, antenna remote cable,
CAN-Bus, Cinch and amplifier remote cable.

Harness Extension Kit to retrofit vehicles with an OEM Mercedes Audio Gateway to a universal aftermarket head unit.
Allows you to relocate the connector of the OEM head unit (Audio Gateway) into the dashboard where the aftermarket radio will be located.
The complete pinning of the Extension Harness including CAN-Bus and the antenna remote wire makes it easy to retrofit the head unit by using the original steering wheel remote control functions (if OEM equipped).
Retention of the OEM subwoofers (if OEM equipped) will be accomplished via Cinch and amplifier remote cables.

Note:

Please always check if there is an OEM MOST Sound System installed in the vehicle before placing your order!
Not compatible with the OEM Mercedes Harman Kardon (MOST) Sound System

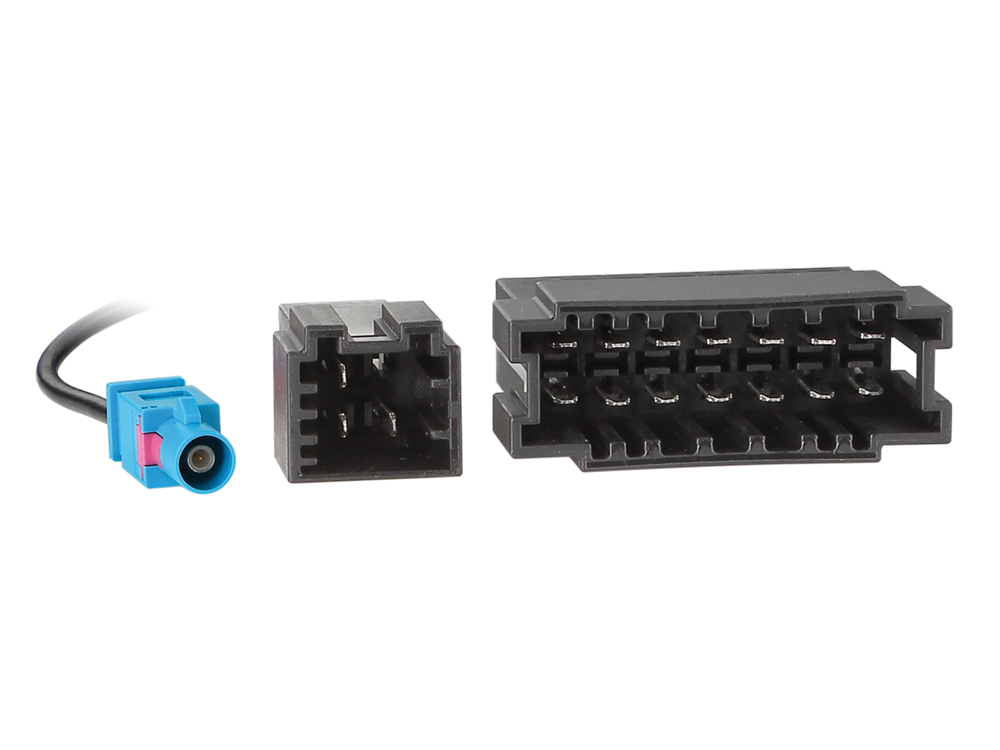

The extension cable is prepared for ISO plugs in the radio shaft.
The fitting stalk adapter/ steering wheel remote control for allocation at the ISO plug 42smc002.

In case of malfunktion please check the CAN-wire

Vehicle applicatio:

Mercedes SLK (R171) 03/2004-03/2011
Mercedes SL (R230) 12/2005-11/2011
