KOMPLET MONT. KIT NISSAN QASHQAI/X-TRAIL 2014 > 2017 MED 360° KAMERA

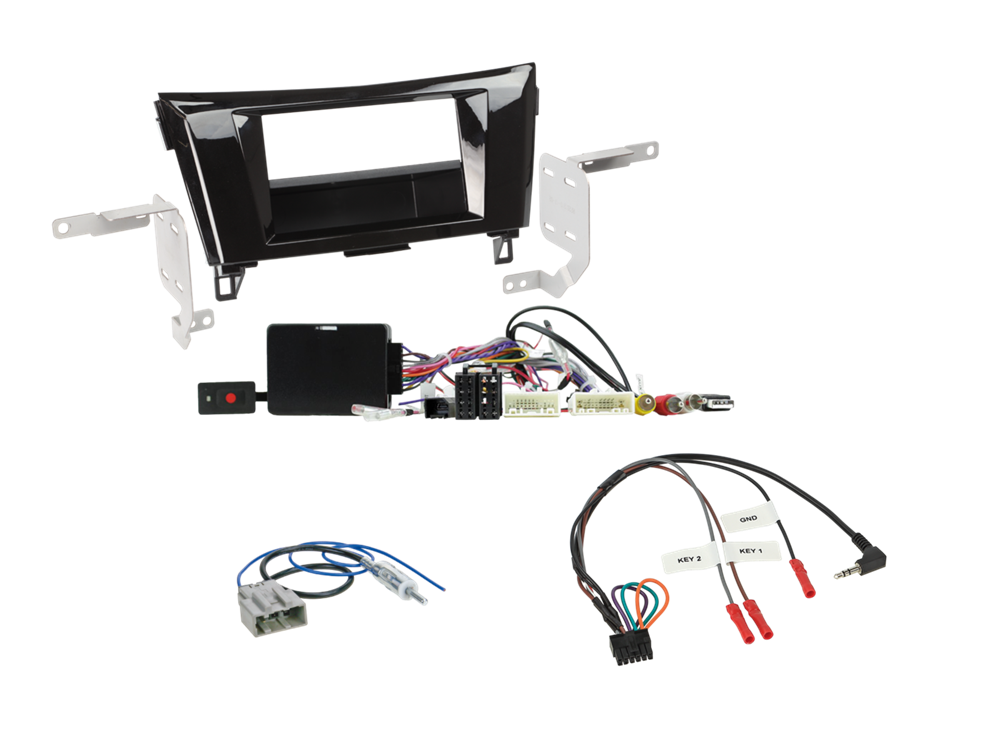

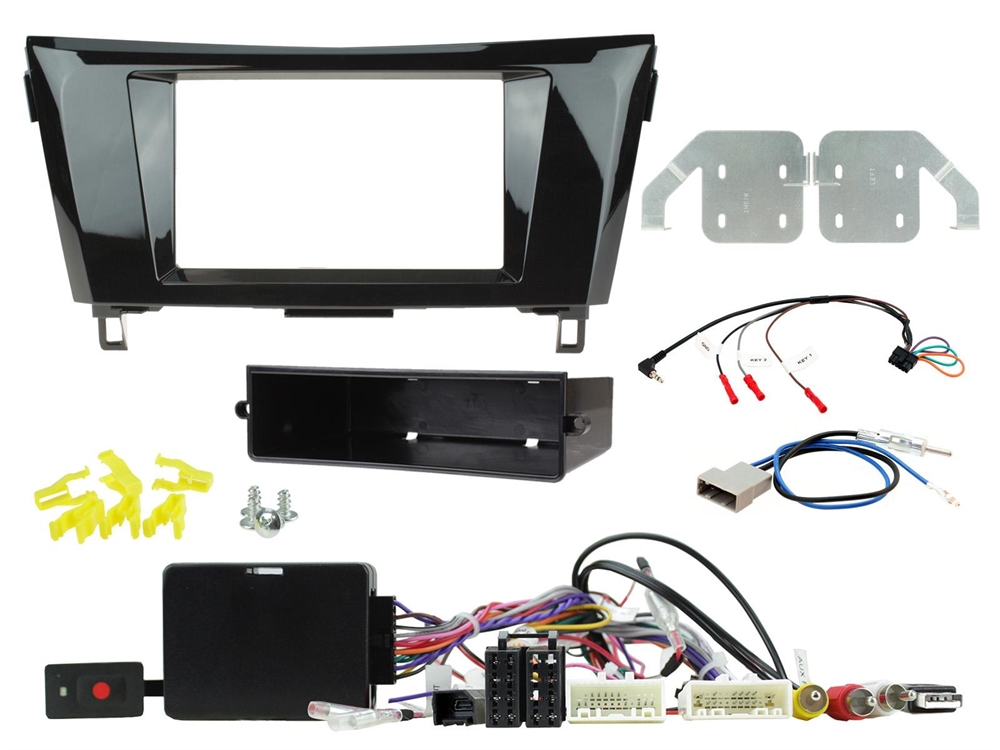

Nissan Qashqai/X-Trail 14> Installation Kit. Supplied With CAN-Bus Steering Wheel Control Interface, Black Double DIN Fascia, Antenna Adapter & Universal Patchlead. Retains OEM USB/AUX Socket (If Feature Is Available)
Note:

CAN Bus

connector: 20 Pin / 24 Pin Nissan
connector: OEM AUX > RCA(m) red/white
connector: OEM USB > USB-A
connector: OEM 360° camera system > RCA(m) yellow

vehicles with OEM Navigation
vehicles with OEM 360° camera system
vehicles with model equipment N-Connecta
vehicles with model equipment N-Vision

vehicles with model equipment Tekna > Nissan Savety Shield not supported:
motion detection
parking assistant
drowsiness detection
blind spot assist

date/time setting > BC display in AUX position

BC reset factory settings and reconfiguration required if AUX menu is missing
track forward / track back > function can be swapped


Vehicle application:

Nissan X-Trail (T32) 07/2014 - 07/2017
Nissan Qashqai (J11) 03/2014 - 07/2017

Following signals are provided:

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse signal
pink: speed pulse signal

load capacity total outputs: 100 mA max.

current requirement more than 100 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC
Retain the vehicle's steering wheel compatibility with aftermarket head unit. This includes: Volume, Track/Seek, Phone Pick Up and Hang Up.

Setting of the vehicle’s time is retained through the use of the steering wheel controls.

Retains BOSE / Amplified systems if the vehicle is equipped.

Retains the 360-degree camera functionality via the original four factory-fitted camera feeds.

Additional button controller for manual selection of the 360 camera function.

Retains the original USB and Aux of the vehicle.

The interface has been designed so that it doesn’t affect the control and usability of the MFD screen.

Multi-lingual software available in English, French, German, Italian, Swedish, Norwegian, Portuguese, Spanish and Dutch.

The universal patchlead allows the vehicle to recognise the new technology as if it were the factory system.
