KOMPLET MONT. KIT PORSCHE PANAMERA 2009 > 2016 MED INFO OG MOST FORSTÆRKER

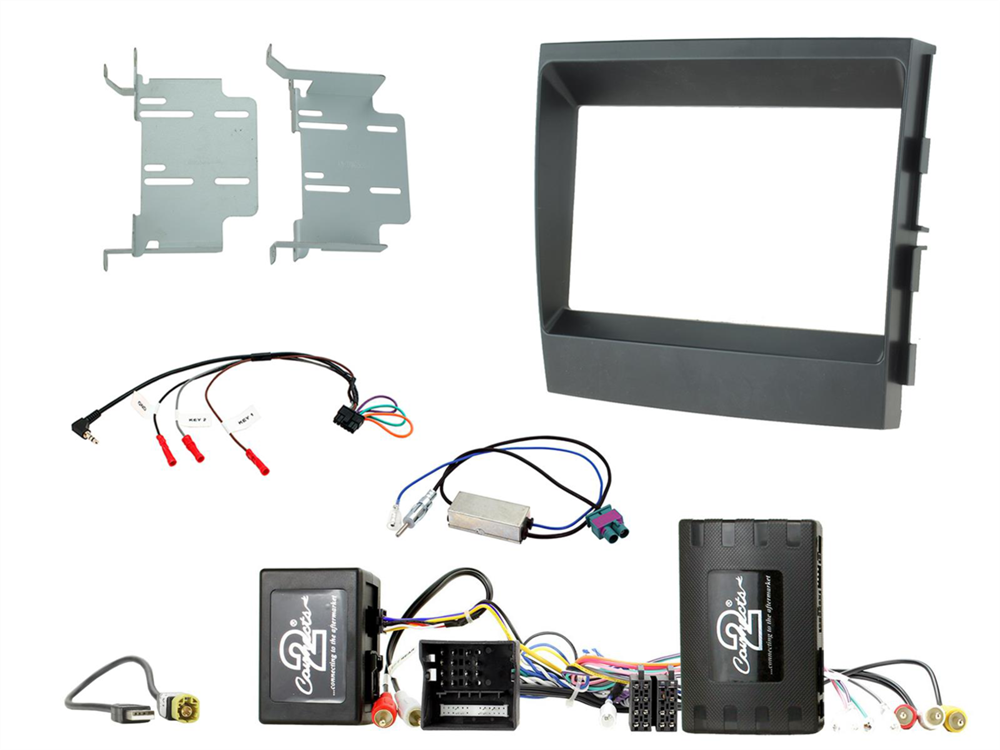

Facia plate 2-DIN and HU Adapter Kit Porsche

Many car manufacturers install car specific head units to fit the optical
picture of the dashboard.

Installation kits include all components for replacing an OEM HU.
Depending on the vehicle's equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the scope of delivery.

Please check the installation recommendations for the individual components.
In some cases, not all vehicle functions are supported.
For example, Trailer Assist, E Call, or other driver assistance systems.

Please check the OEM HU and vehicle settings for available settings bevore installation.
Please check all functions bevor final installation.
Also check our listed OEM head units and compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.

Note:

vehicles with SWC

CAN Bus

connector: 40 Pin Quadlock Porsche
connector: Fakra(m) > DIN(m)
connector: RCA yellow > rear viev camera input
connector: RCA red/white > AUX input
connector: RCA red/white > ampliefied system (no fader)
connector: LVDS > USB input

vehicles with PCM 3.1 OEM HU
vehicles with Most OEM amplified system
vehicles without Burmester 3 D High End Surround OEM amplified system

blue/white: +12V Amp switched remote

to enter settings connect the reverse signal output (purple/white) to HU
for visualisation of the settings connect and configure the rear view camera input of the HU

Vehicle application:

Porsche Panamera 2009 - 2016

Colour: black

Following signals are provided:

Park brake
Reverse
Ignition
Speed pulse

SWC
visualisation OPS
PDC chimes
