Varenr.: 621323-07-1
På lager hos vores leverandør

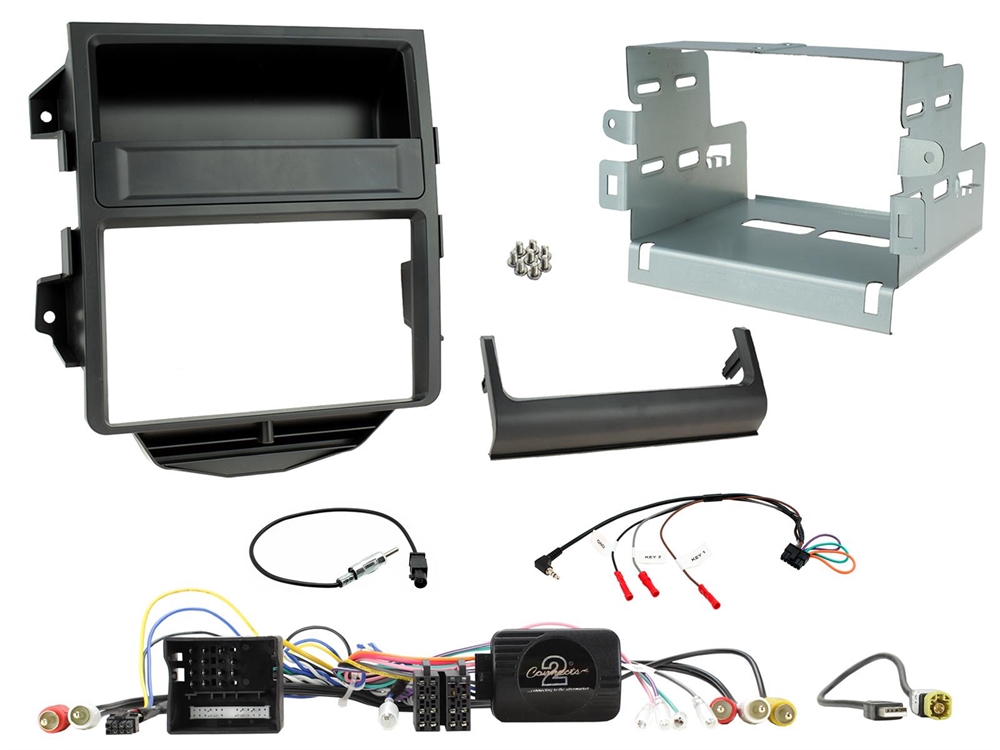

Facia plate 2-DIN and HU Adapter Kit Porsche
Many car manufacturers install car specific head units to fit the optical picture of the dashboard.
Installation kits include all components for replacing an OEM HU.
Depending on the vehicle's equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the scope of delivery.
Please check the installation recommendations for the individual components.
In some cases, not all vehicle functions are supported.
For example, Trailer Assist, E Call, or other driver assistance systems.
Please check the OEM HU and vehicle settings for available settings bevore installation.
Please check all functions bevor final installation.
Also check our listed OEM head units and compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.
Note:
CAN Bus
connector: 40 Pin Quadlock Porsche
connector: Fakra(m) > DIN(m)
connector: RCA yellow > rear viev camera input
connector: RCA red/white > AUX input
connector: RCA red/white > ampliefied system (not connected)
connector: LVDS > USB input
vehicles with PCM 3.1 OEM HU
vehicles with OEM analog amplified system*
vehicles without OEM Burmester 3 D High End Surround OEM amplified system
blue/white: +12V Amp remote
Vehicle application:
Porsche Macan 2014 - 2016
Following signals are provided:
Park brake
Reverse
Ignition
Speed pulse
SWC
PDC chimes
