KOMPLET MONT. KIT C2, C3, 207, 307, EXPERT 2005 > 2009

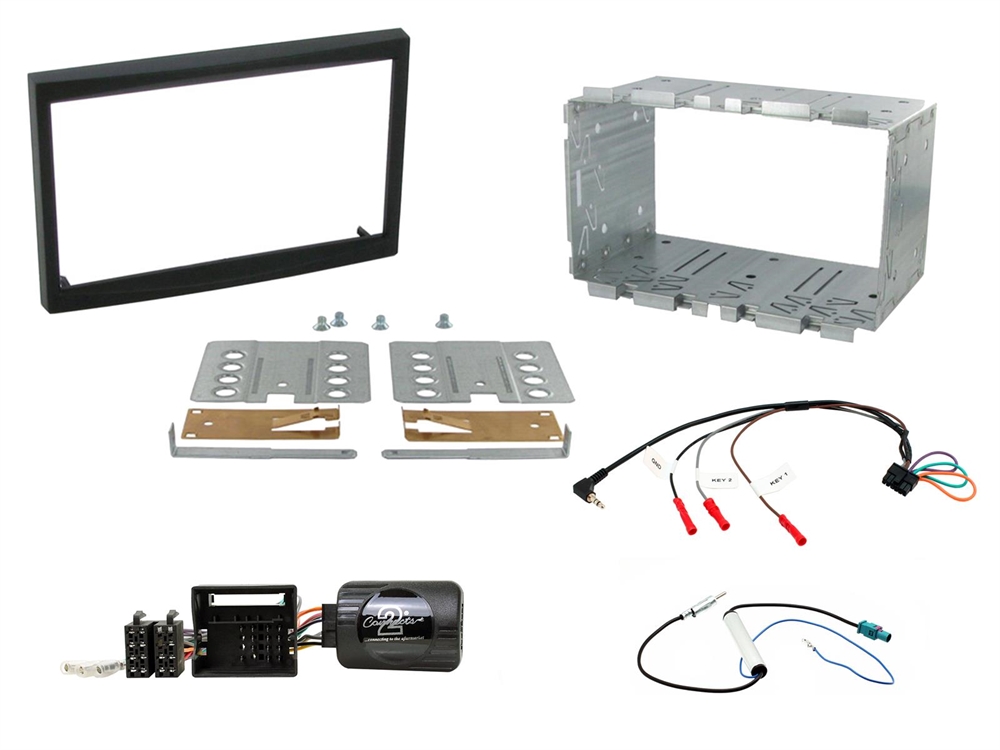

Citroen C2/C3 Installation Kit. Supplied With Black Double DIN Fascia Kit, CAN-Bus Steering Wheel Control Interface, FAKRA Antenna Adapter & Universal Patchlead

Note:

vehicles with automatic climate control

vehicles witn manual climate control adaption work required

adjustment work wiht workshop tools the seat heating switch mount necessary

Vehicle application:

Citroen
Citroen Berlingo (7) 06/2008 - 03/2012
Citroen Berlingo (7) 04/2012 - 05/2015
Citroen Berlingo (7) 06/2015 - 06/2018
Citroën C2 (J) 12/2004 - 12/2009
Citroën C3 (F) 10/2005 - 01/2010
Citroen C3 Pluriel (H) 01/2003 - 04/2008
Citroen C3 Pluriel (H) 04/2008 - 02/2010
Citroen Jumpy (X) 02/2007 - 03/2012
Citroen Jumpy (X) 03/2012 - 05/2016

Fiat
Fiat Scudo (ZAF 270) 02/2007 -07/2016

Peugeot
Peugeot 207 (W) 06/2006 - 06/2009
Peugeot 207 (W) 06/2009 - 07/2015
Peugeot 307 (3) 02/2001 - 06/2005
Peugeot 307 (3) 06/2005 - 03/2009
Peugeot Expert (X) 02/2007 - 03/2012
Peugeot Expert (X) 03/2012 - 08/2016
Peugeot Partner/Partner Tepee (7) 05/2008 - 03/2012
Peugeot Partner/Partner Tepee (7) 03/2012 - 04/2015

Toyota
Toyota ProAce 06/2013 - 07/2016

Colour: black

Note:

CAN Bus

connector: 40 Pin Quadlock Citroen / Peugeot

vehicles with Blaupunkt / Continental / Siemens VDO RD4 OEM HU with volume control knob

vehicles without Continental RD5 OEM CD-Tuner Silverbox
vehicles without Continental RD45 OEM HU with volume control knob**
vehicles without Magneti Marelli RT3 / RT6 /Harman Becker OEM Sat Nav
vehicles without JBL OEM amplified system

vehicle settings supported (look into the manual)

vehicles with rear PDC additional> item: can-pdc*
vehicles with ECO-mode > +12V continuous current clamp 30 batterie fused


Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse signal
pink: speed pulse signal
