KOMPLET MONT. KIT CHRYSLER/DODGE/JEEP 2007 > 2018

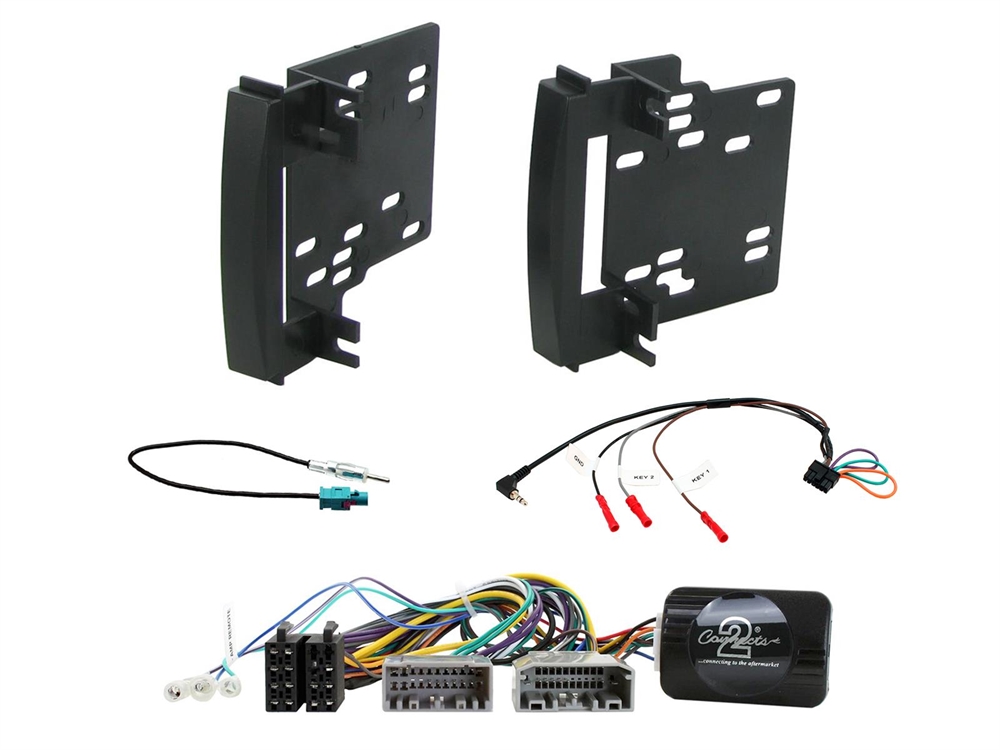

Facia plate 2-DIN and HU Adapter Kit Chrysler / Dodge / Jeep / Lancia / Mitsubishi / VW

Many car manufacturers install car specific head units to match the optic of the dashboard.

Installation kits include all components for replacing an OEM HU.

Depending on the vehicle's equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the scope of delivery.

Please check the installation recommendations for the individual components.

In some cases, not all vehicle functions are supported.
For example, Trailer Assist, E Call or other driver assistance systems.

Please check the OEM HU and vehicle settings for available settings bevore installation.

Please check all functions bevor final installation.

Also check our listed OEM head units and compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.

Note:

CAN Bus

connector: 22 Pin Chrysler // 24 Pin Chrysler

blue/white: +12V switched amp remote

vehicles with CAN Bus without +12V switched ignition clamp15
vehicles with/without OEM amplified system

vehicles without Infinity OEM amplified system*
vehicles without blind spot

blind spot not supported
PDC not supported
speed pulse not supported
OEM amplified system fader not supported

check telephone audio/Sat Nav Audio change front/rear connection

Vehicle application:

Chrysler
Chrysler 200 2011 - 2014
Chrysler 300C (LX) 11/2007 - 12/2010
Chrysler Aspen 2008 - 2009
Chrysler Sebring (RJ) 05/2007 - 08/2010
Chrysler Town&Country 2008 - 2016**

Dodge
Dodge Avenger 2008 - 2014
Dodge Caliber (PK) 10/2008 - 12/2010
Dodge Challenger 2008 - 2014
Dodge Charger 2009 - 2010
Dodge Dakota 2008 - 2011
Dodge Durango 2008 - 2009
Dodge Grand Caravan 2008 - 2017
Dodge Journey (JC) 06/2008 - 12/2010*/**
Dodge Magnum 2008 - 2009
Dodge Nitro 2007 - 2011
Dodge RAM 1500 2009 - 2011
Dodge RAM 2500/3500 2010 - 2012**
Dodge RAM Chassis CAB 2011 - 2012**
Dodge RAM C/V Tradesman 2012 - 2015**

Jeep
Jeep Commander (WH) 2008 - 2010
Jeep Compass (PK) 2009 - 06/2010
Jeep Compass (PK) 05/2011 - 12/2016
Jeep Grand Cherokee (WH) 10/2007 - 12/2010
Jeep Patriot (PK) 2009 - 2017
Jeep Liberty 2008 - 2012
Jeep Wrangler (JK) 04/2007 - 02/2011*
Jeep Wrangler (JK) 02/2011 - 07/2018*

Lancia
Lancia Voyager (RT) 11/2011 - 08/2015

Mitsubishi
Mitsubishi Raider 2008 - 2009

VW
VW Routan 2009 - 2015

Colour: black

Following signals are provided:

Ignition
Illumination
Reverse

SWC

OEM amplified system fader not supported

*modifications to radio cavity required
