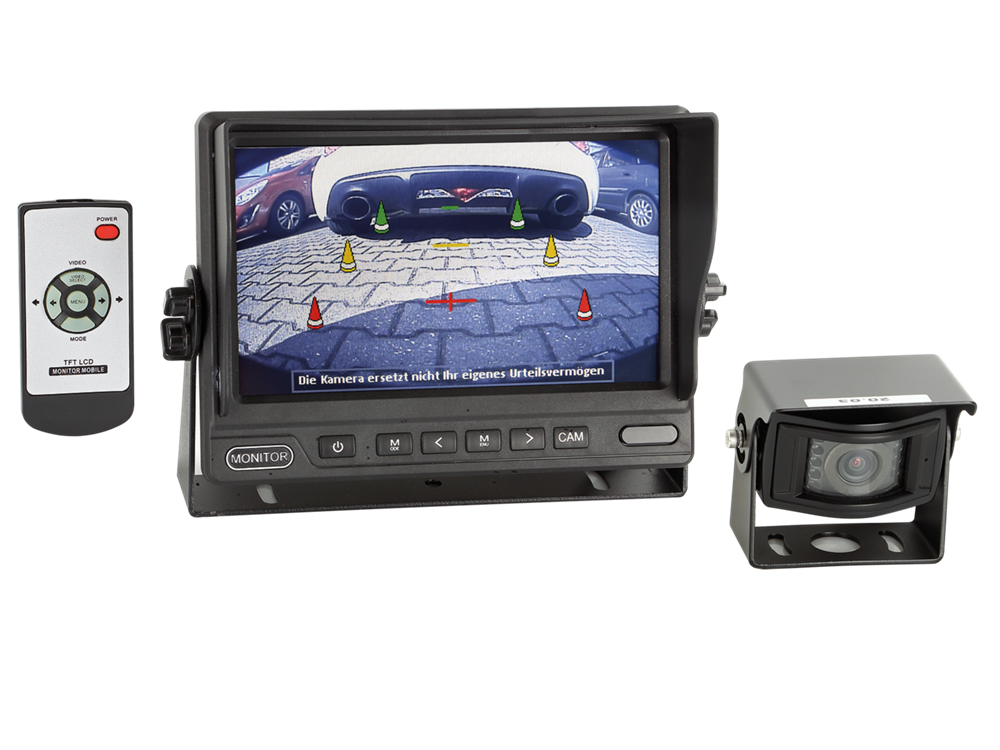

KAMERA KIT TIL KASSE ELLER CAMPER 7" DAG/NAT

Rear view camera monitor kit

Rear view camera universal

Design: Transporter / Motor Home
Installation: build-up-construction / roof system

Kamera Sony Analog HD 1080 Pixel
with nightview

Note:

all acv cameras are suitable for +12V continuous operation

connection monitor:
red +12V / +24V switched load-stable (fused)
black ground car body direct
green +12V / +24V switched trigger camera

connection camera:
+12V systemoutput monitor*

Product characteristic camera:

Design: metal
Color: black
Extras: guiding lines via jumper, mirror function and nightview
Image sensor: 1/3" AHD
TV system: NTSC color
Effective pixels: 1280 x 720
Min.Lux: 0 Lux with active nightview
Resolution: AHD (analog HD)
Lens angle: 150° (diagonal)
View angle: horizontal 105° vertical 60° + 5°
IP Rating: IP 68
Terminal: 4-pin mini-plug ( male ) 5,2mm
Power supply: DC 12Volt + 10% DC
Current consumption: 200mA during active nightview function
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 85°C
Measurements: (with brackets) L / W / H - 76 mm / 60,39 mm / 73,8 mm

Product characteristic Monitor:

Design: Plastic with metal bracket
Color: black
Extras: glare protection, automatic power on with signal input via trigger function,
remote control, guiding lines and mirror function
2 Video inputs
2 12V DC outputs
Resolution: 16:9 with 1024 x 600 Pixel (RGB)
TV System: PAL / NTSC
Power supply: 12-24V DC + 10%
Measurements: L / W / H - mm / mm / mm

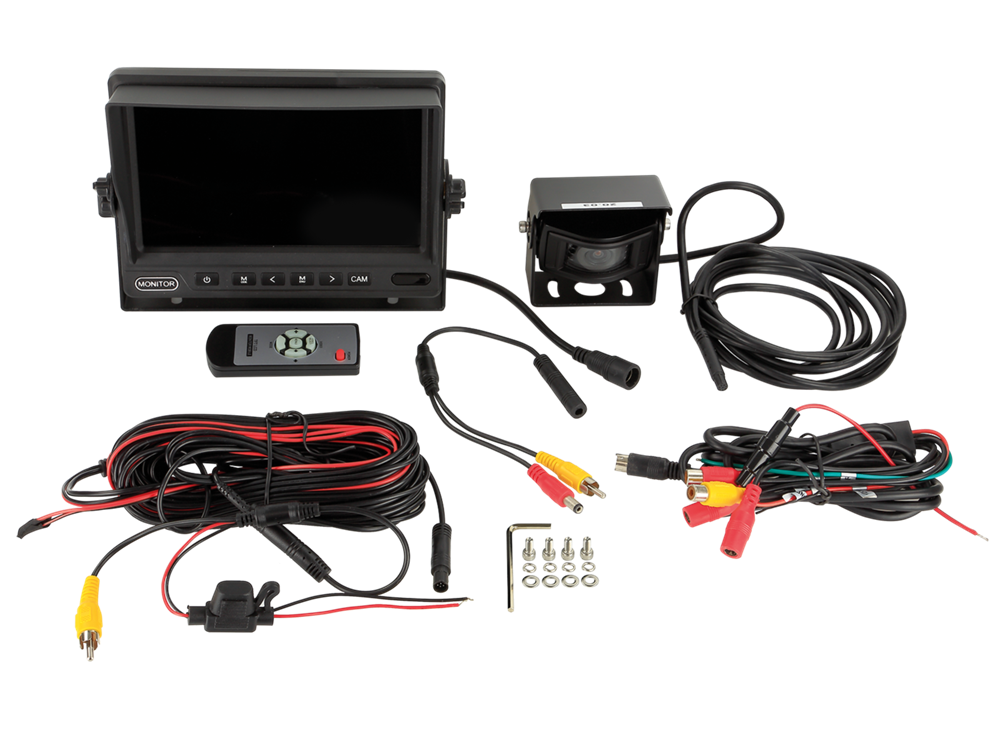

Pigtail at the camera:

3 Meter cable with 8-pin mini plug ( male ) 7 mm incl. 1 jumper
Adapter harness 8-pin plug -> 4-pin mini plug

15 Meter extension cable incl. 3 meter power wire to connect at the reverse light
and inlay cable to connect at the power from the device
4-pin mini plug ( female ) 10 mm and plug ( male ) 5,2 mm

0,2 Meter power wire harness incl. fuse and video connector (RCA)
