KAMERA INDGANG SUZUKI ORIGINAL RADIO

Rear view camera adapter Suzuki

Rear view camera adapters, image feeds and interfaces are required to connect an NTSC aftermarket rear view camera to an OEM device or an OEM Sat Nav, alternatively to replace a factory-fitted rear view camera.

Depending on the vehicle, equipment and the connection variant used, the vehicle must also be coded for a rear view camera and this entered in the installation list in order to prepare the image reproduction.

It may also be necessary to connect an additional +12V reversing signal, a ground contact or other additional cables to the OEM device for image switching.

Note:

The error-free image reproduction of the reverse view camera must be checked after completing the necessary vehicle preparations before installing the camera.

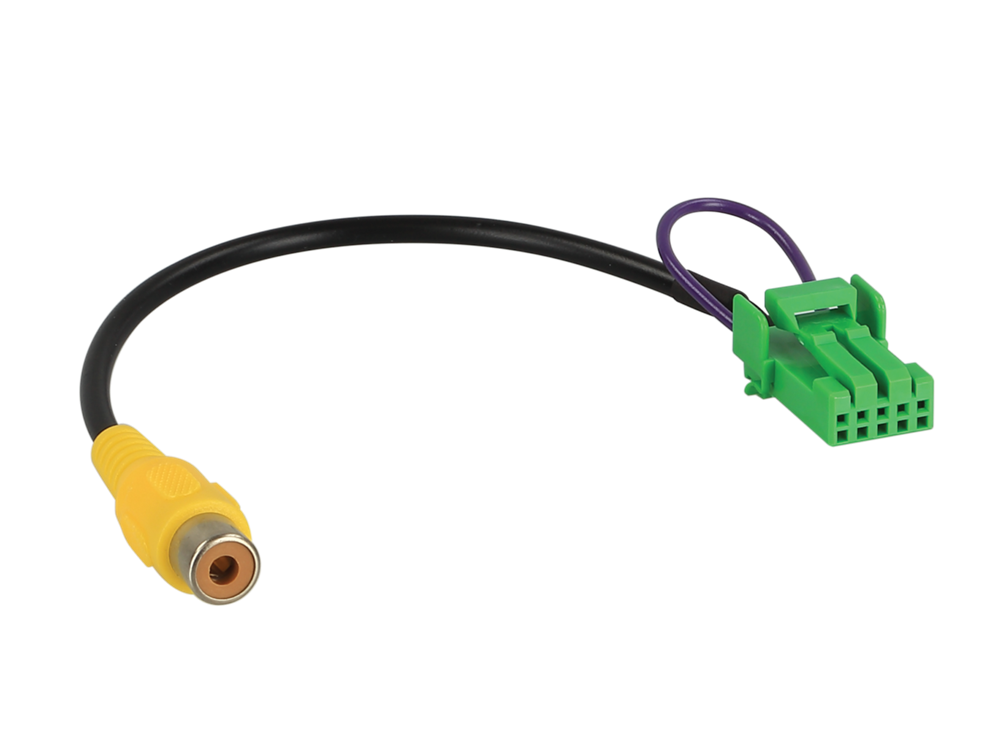

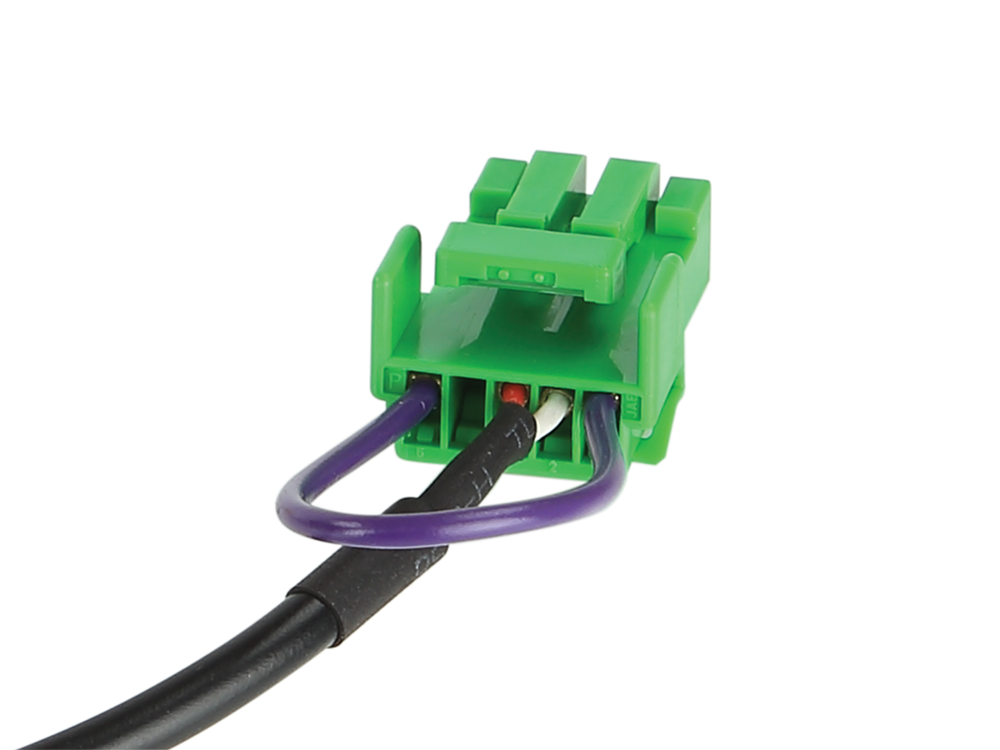

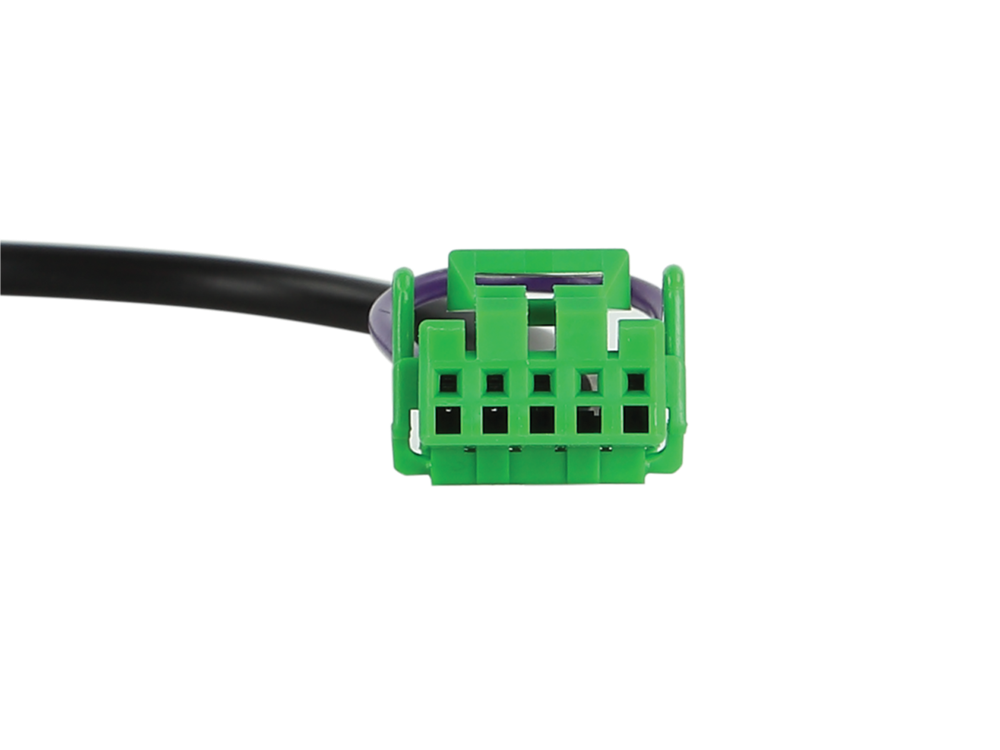

connector: 5 Pin Suzuki OEM HU reverse view camera input
connector: NTSC rear view camera RCA(f) yellow

Use case:

aftermarket camera NTSC > OEM rear view camera input

Vehicle application:

Suzuki Ignis (MF) 01/2017 - 04/2021
Suzuki Ignis (MF) 04/2021 - 2023
Suzuki Jimny (GJ) 10/2018 - 09/2020
Suzuki Jimny NFZ (GJ) 04/2021 - 2023
Suzuki Swift (AZ) 04/2017 - 2023
Suzuki SX4 S-Cross (JY) 10/2013 - 10/2016*
Suzuki SX4 S-Cross (JY) 10/2016 - 12/2021
Suzuki Vitara (LY) 04/2015 - 08/2018
Suzuki Vitara (LY) 10/2018 - 2023

*vehicles with Garmin OEM Sat Nav 1 control dial left
