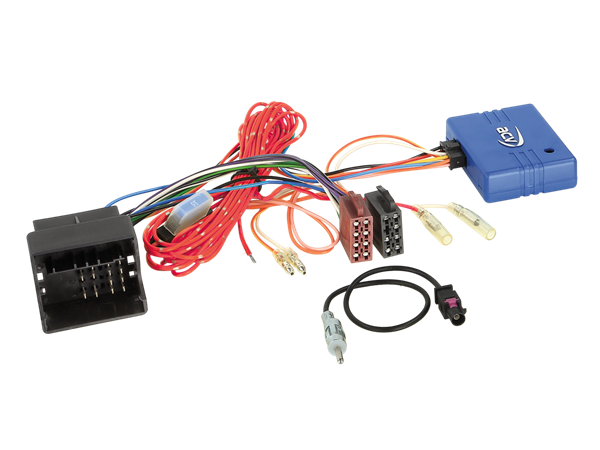

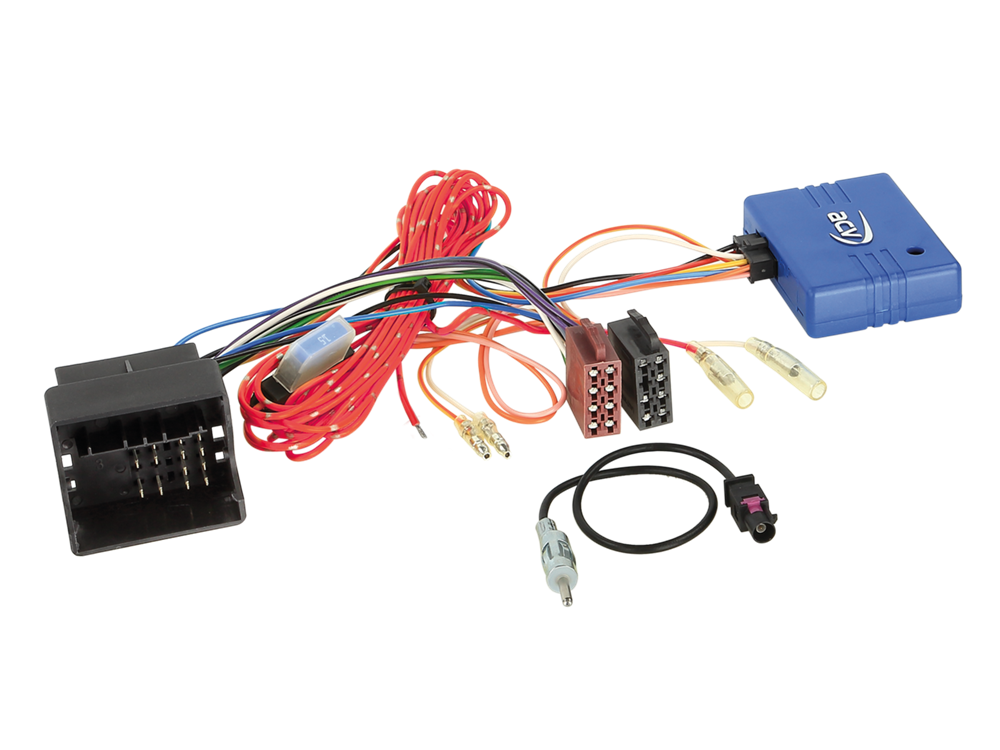

Varenr.: 12-1024-46-15
På lager hos vores leverandør
Note:
CAN Bus
connector: 40 Pin Quadlock BMW
connector: Fakra(m) > ISO(m)
SWC function not supported
Interfaces with SWC function > item 42a-xxx-xxx
outputs:
pink: +12V ignition clamp 15 1,5A max.
orange: +12V illumination clamp 58 0,1A max.
white: +12V reverse 1,5A max.
red: +12V continuous current clamp 30 batterie fused
Vehicle application:
BMW 1er (E81/82/87/88) 03/2004 - 10/2013
BMW 3er (E90/91/92) 03/2005 - 10/2013
The following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
pink: +12V ignition clamp 15 1,5A max.
orange: +12V illumination clamp 58 0,1A max.
white: +12V reverse gear signal 1,5A max.
yellow/green yellow/red: speed pulse signal
