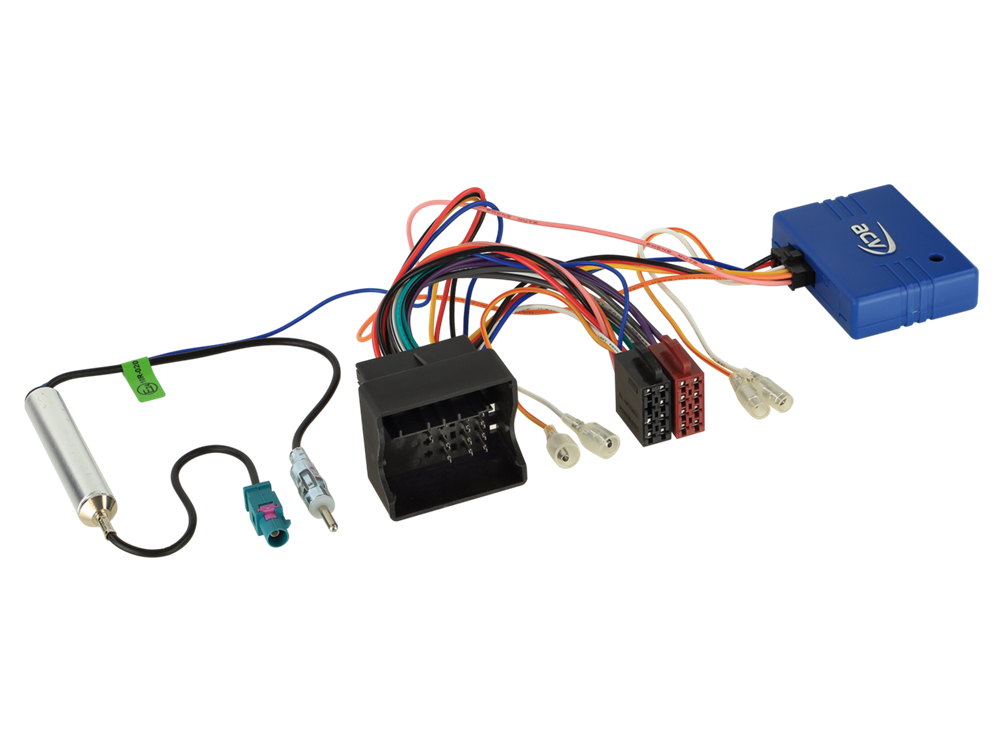

ISO/CAN-BUS KIT OPEL (FM-RADIO/TÆNDNING/LYS/BAK-GEAR/SPEED)

Note:

CAN-Bus

connector: Quadlock
Antenna: Fakra phantom power > DIN

vehicles with CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD 90 OEM HU

vehicle settings not supported
vehicles with interface failure after longer period of operation:

1: OEM HU must be reconnect
2: CAN Bus must shut down
3: CAN Bus alternative tap > 32 pin OEM display connector Can High / Can Low > Pin 20 / Pin 23
4: CAN Bus alternative tap > Comfort CAN at climate control system

Vehicle application:

Opel Agila 2004 - 2007
Opel Antara 2006 - 2017
Opel Astra H 2004 - 2010
Opel Combo 2004 - 2011
Opel Corsa C 2004 - 2007
Opel Meriva A 2006 - 2010
Opel Signum 2005 - 2008
Opel Tigra Twin Top 2004 - 2009
Opel Vectra C 2004 - 2008
Opel Vivaro 2006 - 2010
Opel Zafira B 2005 - 2015

Nissan Primastar 2006 - 2010**

Renault Trafic 2006 - 2010**

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

pink: +12V ignition clamp 15 1,5A max.
orange: +12V illumination clamp 58 0,1A max.
white: +12V reverse gear signal 1,5A max.
yellow/green yellow/red: speed pulse signal
grey: n.c.

*vehicles with trapezoid OEM HU
