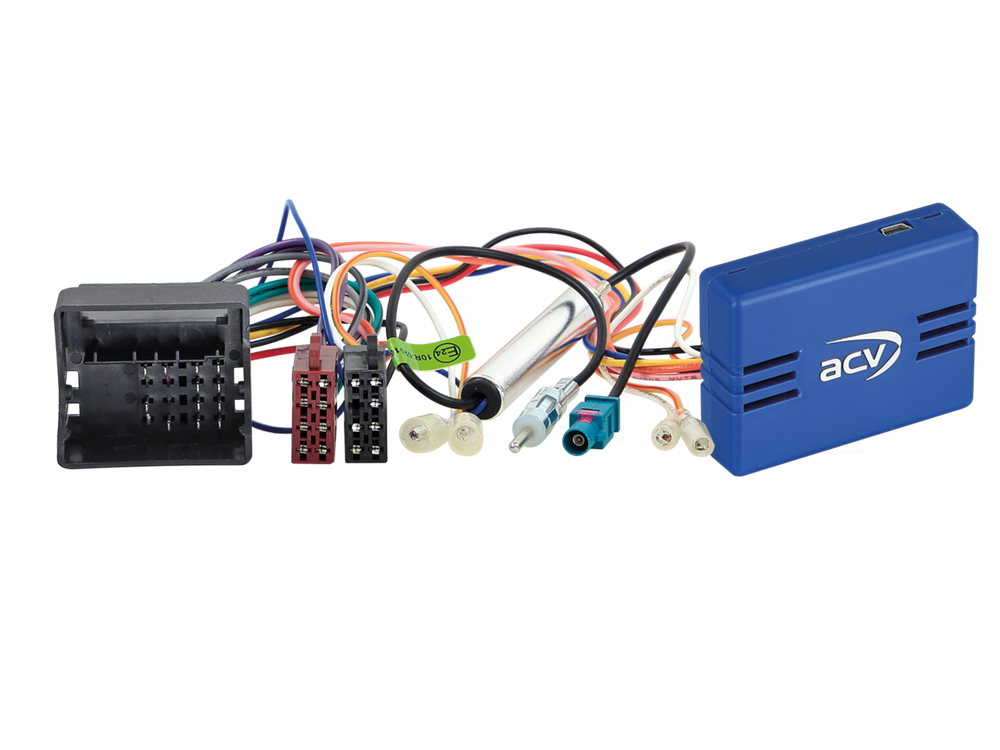

Varenr.: 12-1041-46-15
På lager hos vores leverandør
Note: Ikke til modeller med ratbetjening
CAN Bus
connector: 40 Pin Quadlock Citroen
connector: Fakra(m) phantom supply > DIN(m)
vehicles with RD4 / RT4 / RD45 OEM 1-DIN HU
vehicles without Bosch OEM HU
vehicles without Magneti Marelli RT3 / Harman Becker OEM Sat Nav
vehicles without JBL OEM amplified system
vehicle settings with SWC supported (look into the manual)
vehicles with ECO-mode > +12V continuous current clamp 30 batterie fused
SWC function not supported
Interfaces with SWC function > item 42a-xxx-xxx
outputs:
pink: +12V ignition clamp 15 1,5A max.
orange: +12V illumination clamp 58 0,1A max.
white: +12V reverse 1,5A max.
Vehicle application:*
Citroën C1 (1G) 2012 - 6/2014
Citroën C2 2005 - 2010
Citroën C3 2005 - 2016
Citroën C4 2004 -2010
Citroën C5 09/2004 - 2008
Citroën C6 9/2004 - 2012
Citroën C8 2008 - 2014
Citroën Berlingo II 2008 - 2018
Citroën DS3 2010 - 2016
Citroën DS4 2011 - 2015
Citroën Jumpy 2007 - 2016
Fiat Scudo (IIGen) 2007 - 2016
Peugeot 207 2006 - 2013**
Peugeot 207CC 2007 - 2015**
Peugeot 307 2005 - 2009
Peugeot 308 2009 -2013**
Peugeot 407 2005 - 2011
Peugeot 807 2008 - 2014
Peugeot Expert 2007 -2016
Peugeot Partner 2008 - 2015
Peugeot RCZ 2010 - 2013
Toyota Proace 2013 - 2016
The following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
pink: +12V ignition clamp 15 1,5A max.
orange: +12V illumination clamp 58 0,1A max.
white: +12V reverse gear signal 1,5A max.
yellow/green yellow/red: speed pulse signal
vehicle settings
