Varenr.: 241000-10-1
På lager hos os
Download manual
DIN hul fylder bruges til install kit som skal være til 1 din montering. denne monteres med skruer i siden
Bruges hvor der ikke er pynteramme på radio efter endt montering

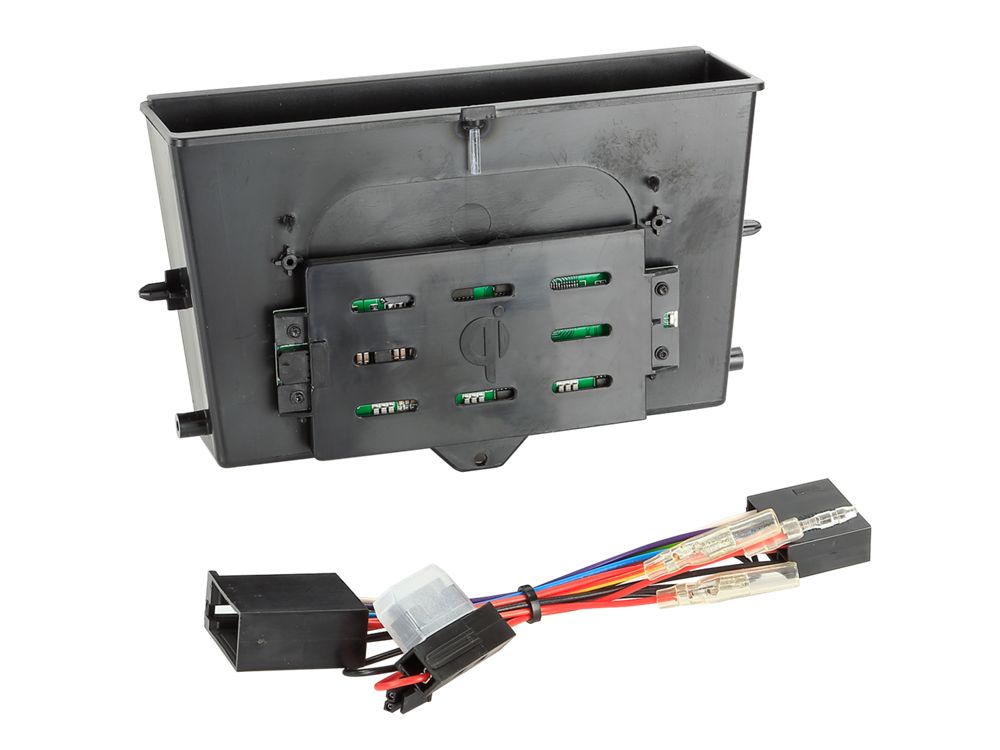

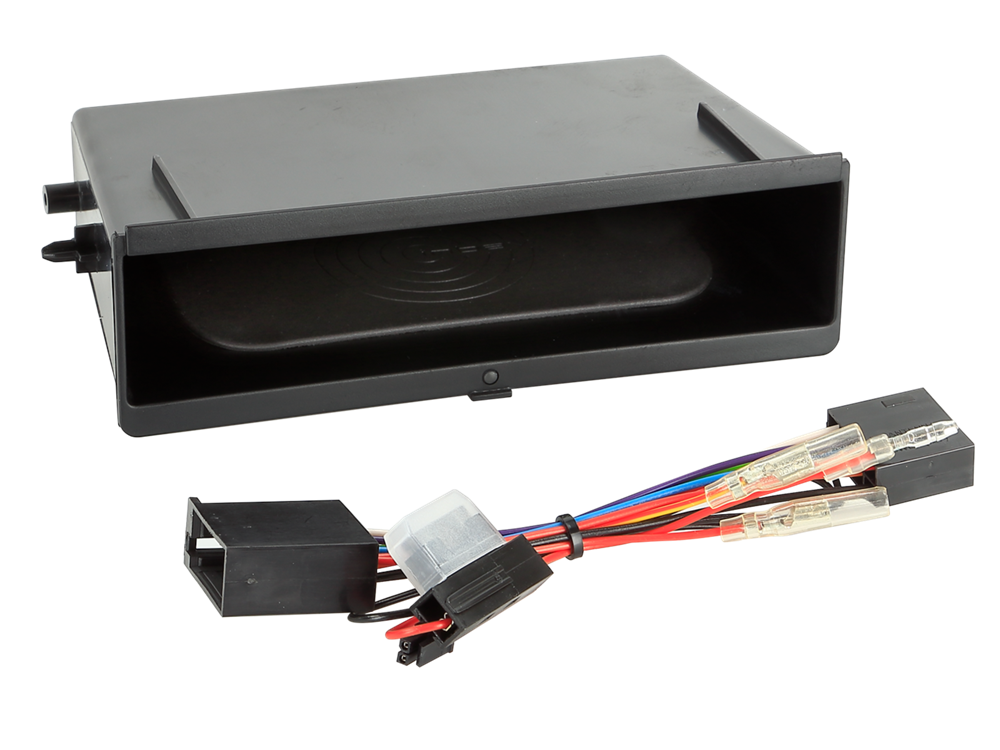

Pocket INBAY® for 2-DIN facia plates
This pocket supports the inductive charging with Inbay®
pocket for converting a 2-DIN facia plate with with metal sheet holder for screwing the HU and with front cover.
Note:
short rim
Use case:
2-DIN facia plates with metal angle sheet holder screw fixing
Made in Germany 5 Watt*
This pocket supports wireless inductive charging of smartphones using INBAY®
All INBAY® products work with the worldwide established Qi-standard for wireless charging.
All smartphones certified by the international Wireless Power Consortium are compatible with INBAY®.
Compatible smartphones with charging power at the following link:
https://www.wirelesspowerconsortium.com/products
INBAY® meets the following technical specification:
QI-certification
ECE mark of conformity 10R - 05 14145
EMV Norm VW80000 / TL-965
FOD - "foreign object detection"
INBAY® in the vehicle:
No interferences with the vehicle bus system
No inteferences with the vehicle electronics
No interferences with audio reception AM/FM/DAB+
Note:
connector: ISO(m) > ISO(f)
by using a CAN Bus Interface > connection: +12V switched power ignition clamp15 to fusebox fused
there must be no metallic objects between the charging unit and the smartphone
protective covers must not contain any metallic components
Charging current:
DC5V/1A
*in the case of smartphones with a quick charge function, depending on the apps used parallel with charging, it may only be possible to maintain the charge status
