INBAY DIN HUL FYLDER MED 5W TRÅDLØS OPLADNING TIL INSTALLER KITT

DIN hul fylder bruges til install kit som skal være til 1 din montering. denne monteres med skruer i siden
Bruges hvor der bruges pynteramme på radio

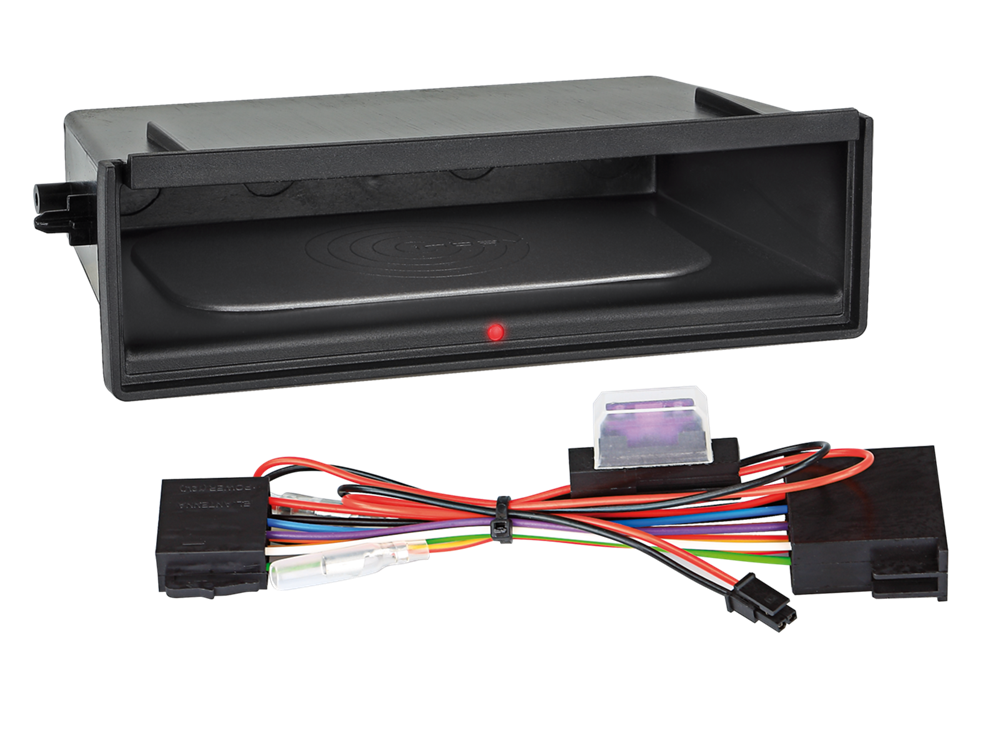

Pocket INBAY® for 2-DIN facia plates

This pocket supports the inductive charging with Inbay®

pocket for converting a 2-DIN facia plate with with metal sheet holder for screwing the HU and with front cover.

Note:

deep rim

Use case:

2-DIN facia plates with metal angle sheet holder screw fixing

Made in Germany 5 Watt*

This pocket supports wireless inductive charging of smartphones using INBAY®

All INBAY® products work with the worldwide established Qi-standard for wireless charging.

All smartphones certified by the international Wireless Power Consortium are compatible with INBAY®.

Compatible smartphones with charging power at the following link:

https://www.wirelesspowerconsortium.com/products

INBAY® meets the following technical specification:

QI-certification
ECE mark of conformity 10R - 05 14145
EMV Norm VW80000 / TL-965
FOD - "foreign object detection"

INBAY® in the vehicle:

No interferences with the vehicle bus system
No inteferences with the vehicle electronics
No interferences with audio reception AM/FM/DAB+

Note:

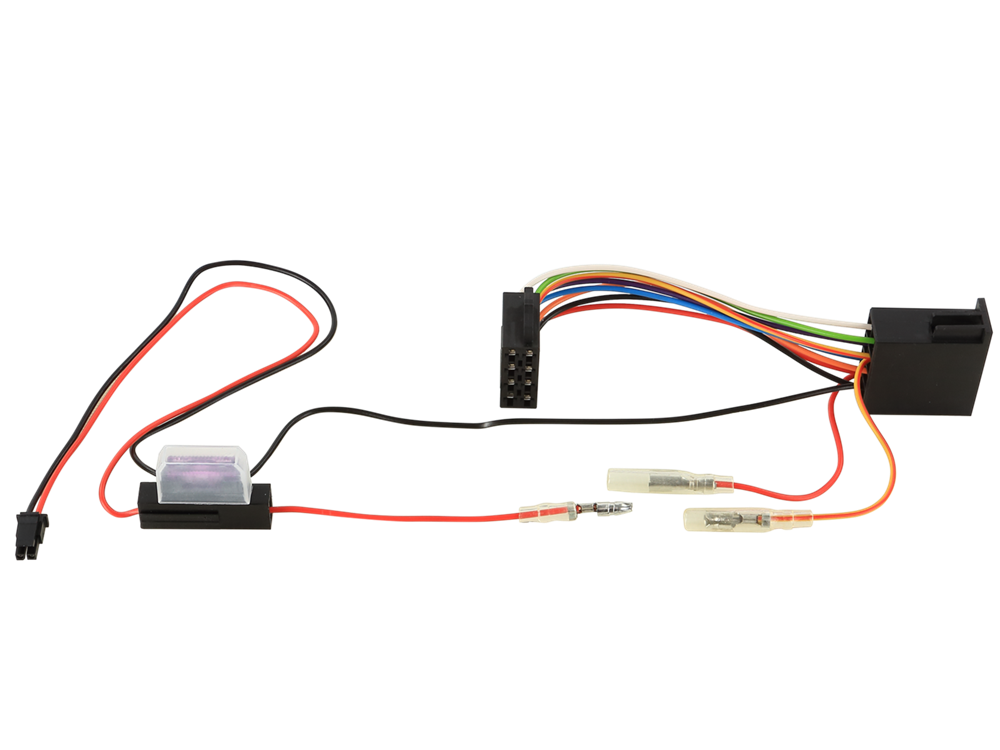

connector: ISO(m) > ISO(f)

by using a CAN Bus Interface > connection: +12V switched power ignition clamp15 to fusebox fused

there must be no metallic objects between the charging unit and the smartphone

protective covers must not contain any metallic components

Charging current:

DC5V/1A

*in the case of smartphones with a quick charge function, depending on the apps used parallel with charging, it may only be possible to maintain the charge status
