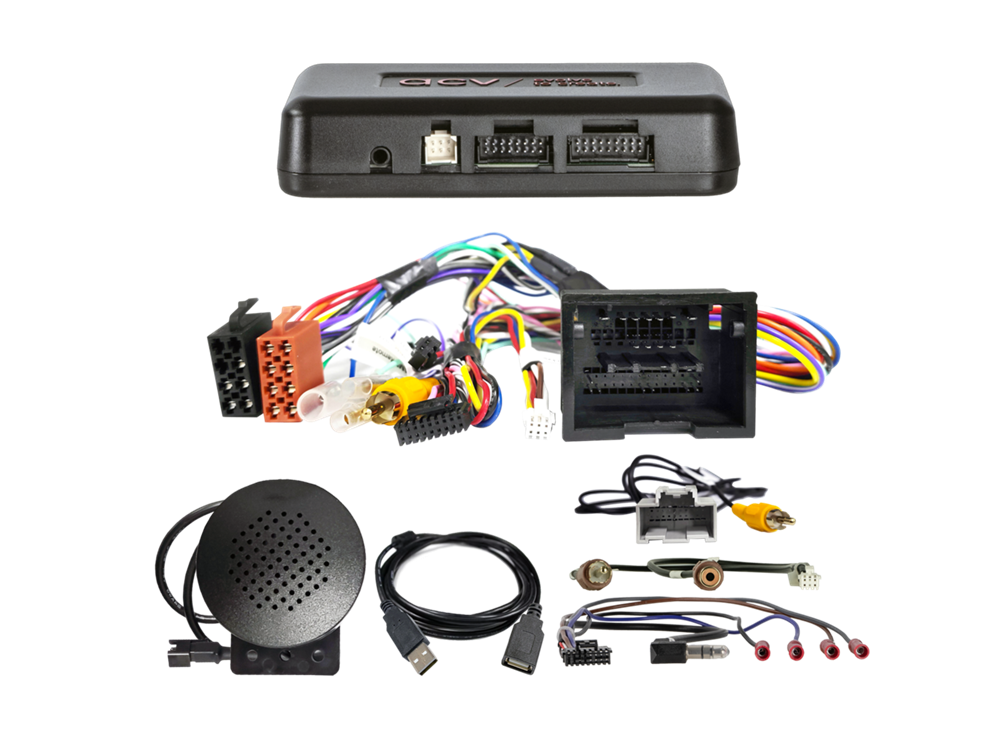

I-ADAPTER/RATBETJENING OPEL DIV MED GM-STIK (ALL INKL)

vehicles with colour OEM monitor > monitor without funktion

Note:

CAN Bus

connector: 48 Pin Opel
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM camera RCA(m) yellow > RCA(m) ochre*

blue: +12V AMP remote

connection i-dapter:
purple/white: +12V reverse gear signal
RCA(m) ochre: rear view camera input retrofit HU

visualisation i-adapter settings > retrofit HU rear view camera input
visualisation OPS > retrofit HU rear view camera input
visualisation Klinatronik > retrofit HU rear view camera input

vehicles with SWC i-dapter settings:
press and hold track up SWC buttom
alternatively with item: 43x-remote

vehicles without SWC required accessories:
i-dapter accessories remote control > item: 43x-remote

camera image or i-dapter settings and visualisation not available:
connect additional GND signal to the RCA outer conductor of the camera and HU connection

i-dapter settings:
press and hold track up or down SWC button

vehicles with colour OEM monitor > monitor without funktion

depending on the vehicle equipment and software:
not all vehicle settings are supported
not all vehicle functions are supported
not all vehicle information is visualised

temperature information is not displayed
date information is not displayed
time information is not displayed
driver assistance systems are omitted

incorrect SWC button mapping after initial installation:
press Track Down 5 times in quick succession to switch the SWC mode

DIP switch settings without the power connection
reconnect the interface once the settings have been made

dip switch settings for the OEM device (look into the manual)

Vehicle application:

Opel Adam (M-A) 01/2013 - 06/2017
Opel Astra J (P-J) 12/2009 - 06/2012
Opel Astra J (P-J) 06/2011 - 08/2018*
Opel Corsa E (X15) 12/2014 - 06/2017
Opel Insignia A (G9) 11/2008 - 06/2013
Opel Meriva B (S10) 05/2010 - 11/2013
Opel Meriva B (S10) 01/2014 - 07/2017*
Opel Mokka (J-A) 10/2012 - 12/2014
Opel Mokka (J-A) 12/2014 - 06/2016*
Opel Zafira Tourer (P12) 01/2012 - 06/2016*

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

visualisation climate control
visualisation OPS
vehicle settings supported

*OEM camera connection alternatively > 20 pin connector grey Pin 5 Vido - ochre / Pin 15 Video + white/blue check with OEM HU
