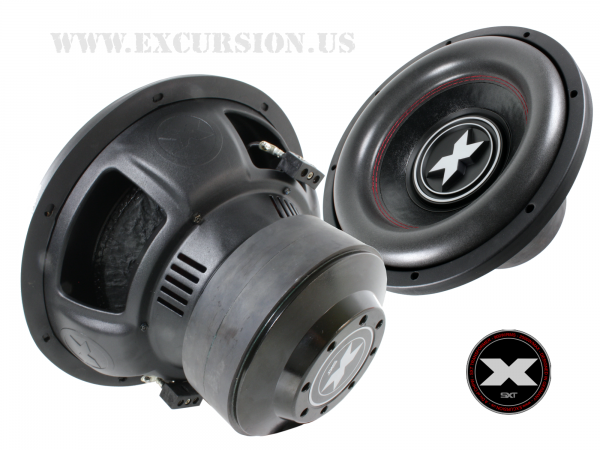

EXCURSION TRANSFORMER 12" DOBBELT 4 OHM

12" / 30cm - 2x4Ohm - 3" BASV 4layer OFC
900 RMS / 2500 W - 300oz Y30 Dual Stack
MD=185mm ID=285mm OD=318mm 11.5kg
Dual Composite red linear Spider + Rings
Dual 8GA Terminals, 12GA wooven Tinseal
Red stiched HDR Surrounds, 3D Dustcap

VC Roll Range Height 45 mm
XMAX linear 17.5 mm
BL @ Series 7.92 Parallel
Suspension Compliance Cms 0.072
Mechanical Q Factor Qms 6.14
Electrical Q Factor Qes 1.23
Total Q Factor Qts 1.02
Moving Mass Mms 228.3 g
Eq.Cas Air Load( liters) VAS Liter 22.9
Resonant Frequency Fs Hz 39
Effective Piston Area SD 471.4

TRANSFORMER ... often discussed, often rejected, always difficult, always unreachable. But time does not stop. The time in which ever greater amplifier performance is always offered cheaper and thus make new demands on entry-level and mid-size subwoofer is not only at EXCURSION today the present. Today calls for a new category of subwoofers that takes into account and builds new demands for more affordable performance. Subwoofers that are similar inexpensive and affordable can perform what was previously the upper class and thus follow up with the same technical development of the amplifiers. It's time and demand for a new generation and we present this T Generation of 8/10/12 "SXT TRANSFORMERS between our well known REFERENCE and EXCELLENCE series columns.
The key to Generation T was to go beyond the limits of steel sheet basket geometry to reliably fix beyond 350oz engines for the first time, opening the door to superclass performance with larger 3 "coils. The goal was immediately set on this new cost-saving platform without further compromises but with economic calculation to dominate these new borders.
So we wind our proven and ventilated aluminum coil former with pure OFC copper up to a winding height of 45mm and result with this generation SXT already an outperform parameters of the several more expensive first generation SXE and SXX series and with comparably large motors. New requirements for centering are here in double execution with reinforced linear NOMEX centering perfectly locked in multiple screwed rings and blood red design. Color accents that repeat in the seams of the oversized high-density surrounds and lettering. Of course, all other known EXCURSION standards can be found in the SXT like our massive double 8GA/10mm² high current terminals and here with a 300oz dual stack motor which with a necessarily extended pole plate which oversized ventilation openings have the charm of a revolver that just wants to be charged.
TRANSFORMER or Generation T stands for a motto and the transformation into a new era of subwoofer production. With dimensions of die cast baskets, we have exceeded the limits with our T steel basket. With powerfully punched EXCURSION brand logos and high efficient vent structure we use T basket across the overall 2020 concept as our platform for our SXR REFERENCE, SXT TRANSFORMER and SXE EXCELLENCE subwoofer. Follows us, but note our warning SXT could missunderstand their motto and can also transform the shape of your car.


Since 2014 EXCURSION offer a praxis born range of Loudspeaker, Subwoofer and Amplifiers based on 30years of experience and engineering. Design, Innovation and Improvements are sourced from all those Challenges of the Car Audio Competition Associations all over the world. This selection of leading and winning high technology route direct into our product lines in order to offer a wide range of consumers Know How and Value which they could usually not access. With german leadership in the global production our authorizied EXCURSION factory partners leave no doubt to meet standards we as german brand are expected for.

Next to an unbeatable Price Performance the praxis form follow function philosophy mirror the prior target motivation of EXCURSION. Everything of past and presence is taken into doubt first, in order to get rethought with all its Details again for a further improve in result. Those results like compact mini sized high technology SMD or CHIP built car audio amplifiers who can meet military standards in caftmansship or new age Plug & Play concepts going through all steps in the line of amplifier till speaker, keeping always flexbile ENERGETIC upgrade improvements or optional upgrade with professional multichannel DSP or BlueTooth connection for a lossless High End streaming via your personal Smart Phone.

With selection of the highest technology global factory partners we at EXCURSION follow and guarantee a tradition of value and exellence for our products. This without mark ups to our car audio customer for horrible marketing and lobby pampering expenses or any half naked women in order to attract more than the value or performance those products mostly can have. We believe or challenge start after you have closed your eyes, after installation & purchase and be asured we love to get compared .... and even more if you comment and let us know about your judging.

EXCURSION …is all you need
