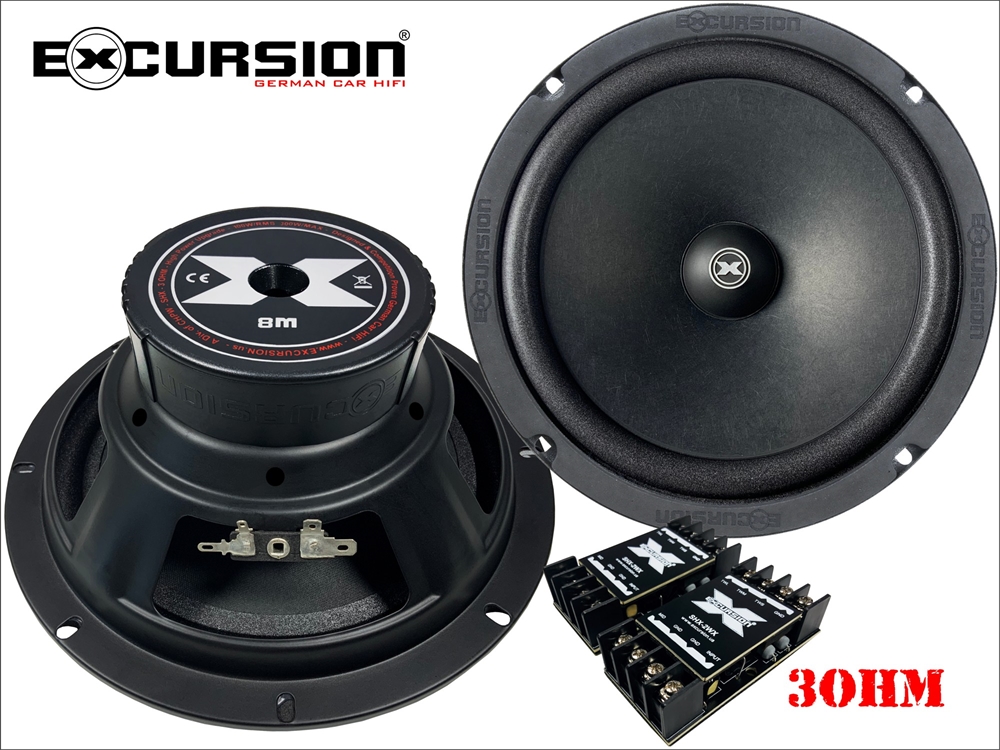

EXCURSION SHX 8M 3 OHM HIGH POWER

EXCURSION HIGH POWER SERIES - 3Ohm
20cm DIN, 100RMS / 300W @ 92dB 1W/m
80mm Install Depth (OEM Replacement)
40 Hz to 10 Khz Frequency Range - Pair

SHX 8M 3Ohm
VC: 1" ASV
RDC: 3.0 ohms
Sens: 92dB 1W/1M
FQR: 40Hz-10KHz
Fs: 45.0 Hz
SD: 216.4 sqCM
Vas: 37.0 Ltr
Cms: 56.0 µM/N
Mms: 21.2 g
Bl™: 4.40
Qms: 4.86
Qes: 0.95
Qts: 0.79

* 2-layer 10% lightweighted natural vital Woolfibre Cone with ADC cone (Activ Damping Coating)
* Double pressed, UV threated foam surround, asure the longlife of the Loudspeaker.
* Carefully crafted 3 Ohm copper wire Voice Coil wound on top vented aluminium former.
* 25% stronger EFF motor structure (Efficient Flux Field) for high efficiency at less power (radio).
* Rigid tooled and stiffened and vented Excursion Design steel basket
