EXCURSION SHX 5C, 3 OHM HIGH POWER

EXCURSION HIGH POWER SERIES - 3Ohm
13cm DIN, 75RMS / 200W @ 91dB 1W/m
57mm Install Depth (OEM Replacement)
55 Hz to 20 Khz Frequency Range - Pair
* 20mm high resolution silk dome Tweeter.
* 2-layer 10% lightweighted natural vital Woolfibre Cone with ADC cone (Activ Damping Coating)
* Double pressed, UV threated foam surround, asure the longlife of the Loudspeaker.
* Carefully crafted 3 Ohm copper wire Voice Coil wound on top vented aluminium former.
* 25% stronger EFF motor structure (Efficient Flux Field) for high efficiency at less power (radio).
* Rigid tooled and stiffened and vented Excursion Design steel basket.
Brand-typical technologies with rear-ventilated baskets, pole core bores and coil carriers with, of course, the highest quality materials and an efficient drive design thought out in the smallest detail make our component systems with their dust protection caps in phase plug design by far the first choice for a high-quality replacement of your original car speakers. The combination with our first-class 25mm silk dome tweeters explains why our EXCURSION loudspeakers are one of the most popular loudspeaker series in Europe

In our SHX - STREET HIGH POWER series, however, there are various other improvements that make a clear difference. First we lowered the weight with an extravagant and vital membrane which is based on a combination of natural wool and glass fibers. This alone results in an improved resolution in the mid-range and after a certain break-in period ensures a proper attack in the foundation. Next, we increased the motor power through size and magnet material while expanding the magnetic field in parallel for improved controlled displacement. Since only "more power" is better than power, the voice coil impedance has also been reduced to 3 ohms. This is close to the limit of what good original radio systems can do in practice, but every type of amplifier also get requested a HIGHER of POWER, which our SHX then brings to the STREET in more audio. Finally, with our newly designed 2-way installer crossover with 3-stage tweeter level adjustment, we can refer to another innovative new feature in the currently revised SHX 2-way version. In accordance with practice with the smallest possible size, an adult 2-way passiv crossover can be installed in the area of ​​the cable passages to the doors or, if necessary, inside the doors.

Shipping:

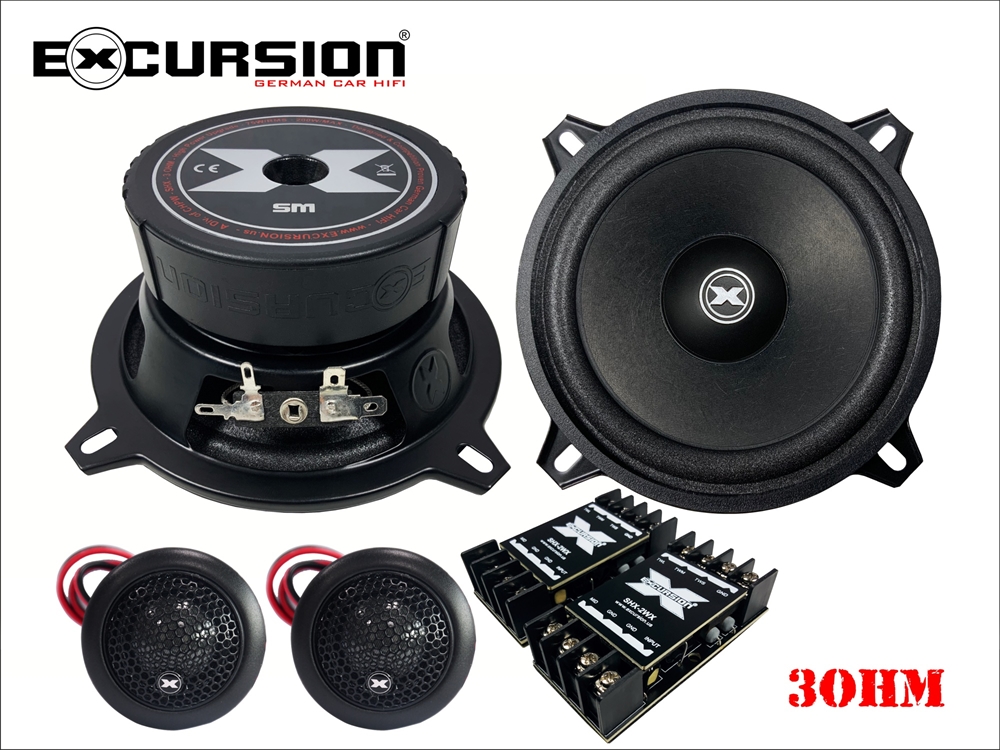

- 2x 1" Silk Dome Tweeter
- 2x Midrange Loudspeaker
- 2x 2Way 6dB/Oct. Install X-over
- Mounting Screw Set, Installation hardware
- Owner Manual, Sticker
