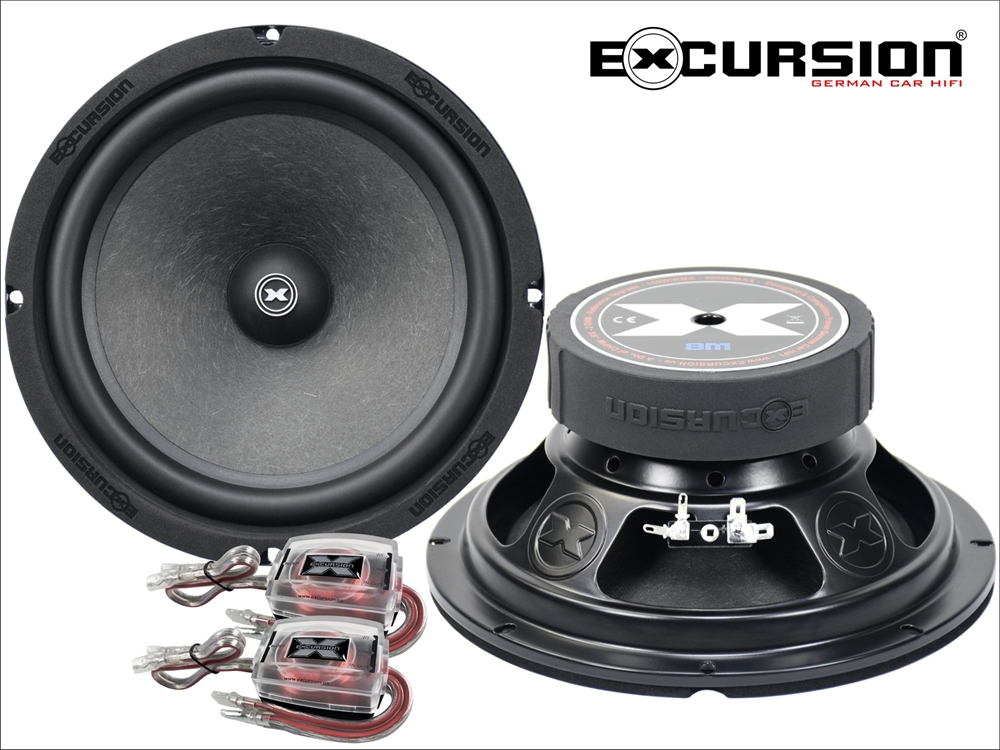

EXCURSION RX 8M REFERENCE SERIE 2 OHM

EXCURSION REFERENCE SERIE - 2Ohm
1.2" VC / RDC 2Ohm @ FS 40Hz
20cm DIN, 150 RMS / 400 Watt @ 95dB 1W/m
35 Hz - 12.000 Hz Frequency Response
88mm Mounting Depth @ 186mm Install Cutt Out Dia.

* 1.2" / 30.5 mm Copper VC @ top vented Kapton Former
* 60 Oz Motor Structure w. high grade Y35 Ferrite Magnet
* Dual Layer natural vital Wool Cone with Glasfibre stripe reinforcments and ADC Coating
* HDR (High Density & High Roll ) Rubytec Surrounds
* Phase Plugged Excursion Dustcap Design
* Pole Piece and bottom vented Excursion Steel Basket
* Selective high extension handcrafted NOMEX Spider
* PX-LPF Plug Crossover w. 14GA tinned OFC speaker cable.

Fs: 40Hz
SD: 216,8 sqCM
Vas: 38,55 Ltr
Cms: 590 µM/N
Mms: 18,5 g
Bl™: 5.64
Qms: 2.55
Qes: 0.35
Qts: 0.3
