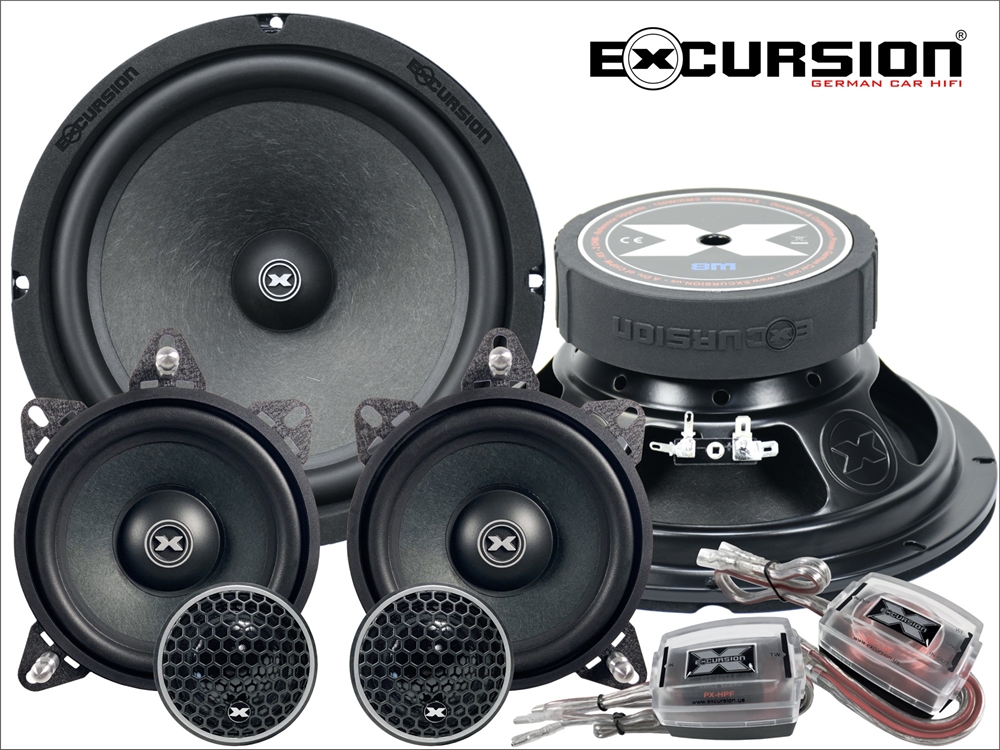

EXCURSION RX 8.3C 8" REFERENCE COMPOSÆT 3-VEJS 2 OHM

EXCURSION REFERENCE SERIE - 2Ohm
20cm, 150 RMS / 400 Watt @ 92dB 1W/m
88mm ET (OEM Upgrade Speaker)
35 Hz - 21 KHz Frequency Response - SET

PX 1S - 26mm Silk Dome Competition Tweeter
* finest selected japanese Silk Dome Tweeter with ADC (Activ Damping Coating).
* Air Chamber design for low FS and efficient cooling of the Neodym Motor system.
* 50cm presoldered high grade tinned OFC (Oxygen Free Copper) Speakercable. Plug&Play
* high grade Dual parallel switched MKP Audio Capicator for flexible modification on demands.
* optional 2/4/6/8/10dB per Oct. Resistor Module, XLR2 / XLR4 / XLR6 / XLR8 / XLR10.
* optional available aluminium Globe Set for the demanding Car Audio Competition.

PX 4M - 10cm DIN/BMW/MB Full Range Loudspeaker
* 1"/25.9mm CCAW Voice Coil on top vented Kapton Former
* exklusiv EXCURSION PX N38 Neodymium Motor Design.
* handmade and selected NOMEX Spider
* longlife low resistant rubberfoam surrounds
* Wool with Glasfibre Stripes Composite Cone
* 3D Dustcap with improved Flattop Design
* FIT ALL CARS - Exclusive Multi Nose vented 4"DIN PX Basket Design.
* Double sprinkle basket painting for elimanation unwanted resonances
* BMW and Mercedes Benz Cable and Mounting Adapters included
* Soft Foam sealing for improved installation included

Fs: 125Hz
SD: 55.4 sqCM
Vas: 1.01 Ltr
Cms: 230 µM/N
Mms: 6.03 g
Bl™: 3.07
Qms: 3.87
Qes: 1.61
Qts: 1.13

RX 8M - 20cm High End Midbass Loudspeaker
* 1.2" / 30.5 mm Copper VC @ top vented Kapton Former
* 60 Oz Motor Structure w. high grade Y35 Ferrite Magnet
* Dual Layer natural vital Wool Cone with Glasfibre stripe reinforcments and ADC Coating
* HDR (High Density & High Roll ) Rubytec Surrounds
* Phase Plugged Excursion Dustcap Design
* Pole Piece and bottom vented Excursion Steel Basket
* Selective high extension handcrafted NOMEX Spider
* PX-LPF Plug Crossover w. 14GA tinned OFC speaker cable.

Fs: 40Hz
SD: 216,8 sqCM
Vas: 33.24 Ltr
Cms: 510 µM/N
Mms: 23,09 g
Bl™: 6,82
Qms: 3.6
Qes: 0.47
Qts: 0.42

* praxis born Inline passiv Filter with 3M Sticker and minimized Dimension (50x37x24mm).

Shipping:
- 2 pc PX-1S
- 2 pc PX-4M
- 2 pc RX-8M
- 2 pc PX-HPF
- 2 pc PX-LPF
- 2 pc PX-WFA (80cm 14GA tinned OFC Speakercable with PX Connectors)
- Owner Manual
