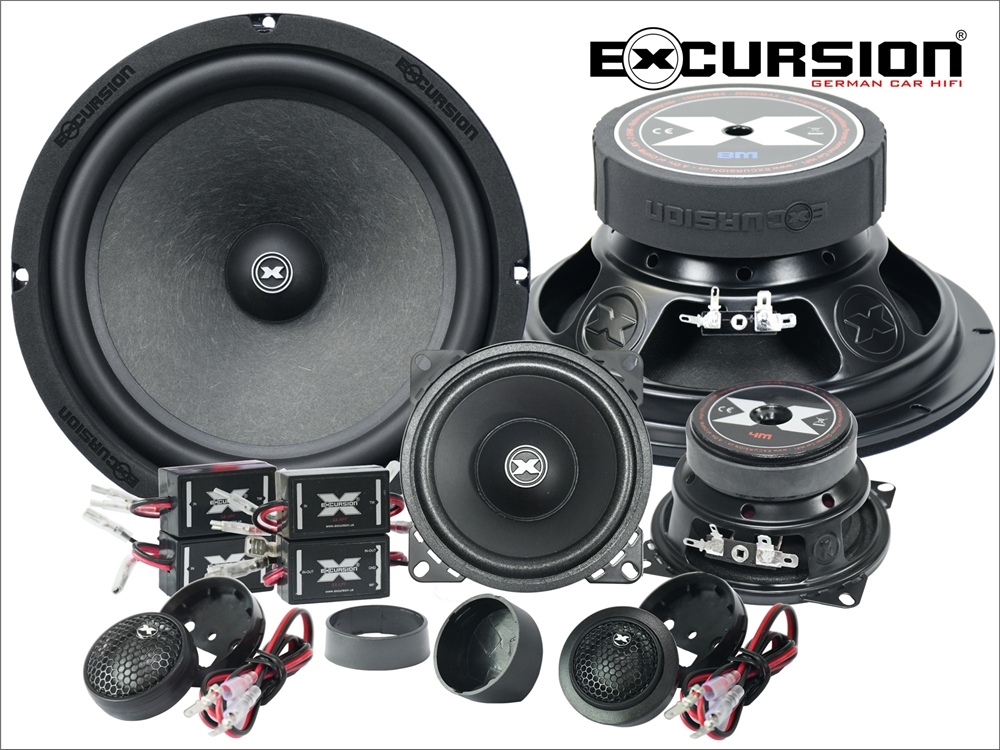

EXCURSION RX 8.3C ECO 8" REFERENCE COMPOSÆT 3-VEJS 2 OHM

EXCURSION REFERENCE SERIE ECO - 2Ohm
20cm, 150 RMS / 400 Watt @ 95dB 1W/m
88mm ET (OEM Upgrade Speaker)
35 Hz - 21 KHz Frequency Response - SET

SX 4C - 10cm DIN 2Wege Component System
* 20mm high resolution Silk Dome Tweeter
* 2-layer paper ADC cone (Activ Damping Coating) decrease resonance and improve stiffness
* Double pressed, UV threated foam surround, asure the longlife of the Loudspeaker.
* EFF motor structure (Efficient Flux Field) for high efficiency at less power (radio).
* Carefully crafted copper wire Voice Coil wound on top vented aluminium former.
* Rigid tooled and stiffened and bottom vented Excursion Design steel basket.
* Continous pole piece drilling suppot once more cooling and avoid compression behavior.

RX 8M - 20cm High End Midbass Loudspeaker
* 1.2" / 30.5 mm Copper VC @ top vented Kapton Former
* 60 Oz Motor Structure w. high grade Y35 Ferrite Magnet
* Dual Layer natural vital Wool Cone with Glasfibre stripe reinforcments and ADC Coating
* HDR (High Density & High Roll ) Rubytec Surrounds
* Phase Plugged Excursion Dustcap Design
* Pole Piece and bottom vented Excursion Steel Basket
* Selective high extension handcrafted NOMEX Spider
* PX-LPF Plug Crossover w. 14GA tinned OFC speaker cable.

Fs: 40Hz
SD: 216,8 sqCM
Vas: 38,55 Ltr
Cms: 590 µM/N
Mms: 18,5 g
Bl™: 5.64
Qms: 2.55
Qes: 0.35
Qts: 0.3

* praxis born Inline passiv Filter with 3M Sticker and minimized Dimension (50x37x24mm).

Shipping:
- 2 pc SX-2S
- 2 pc SX-4M
- 2 pc RX-8M
- 2 pc SX-HPF
- 2 pc SX-LPF
- 2 pc PX-LPF
- 2 pc PX-WFA (80cm 14GA tinned OFC Speakercable with PX Connectors)
- Owner Manual
