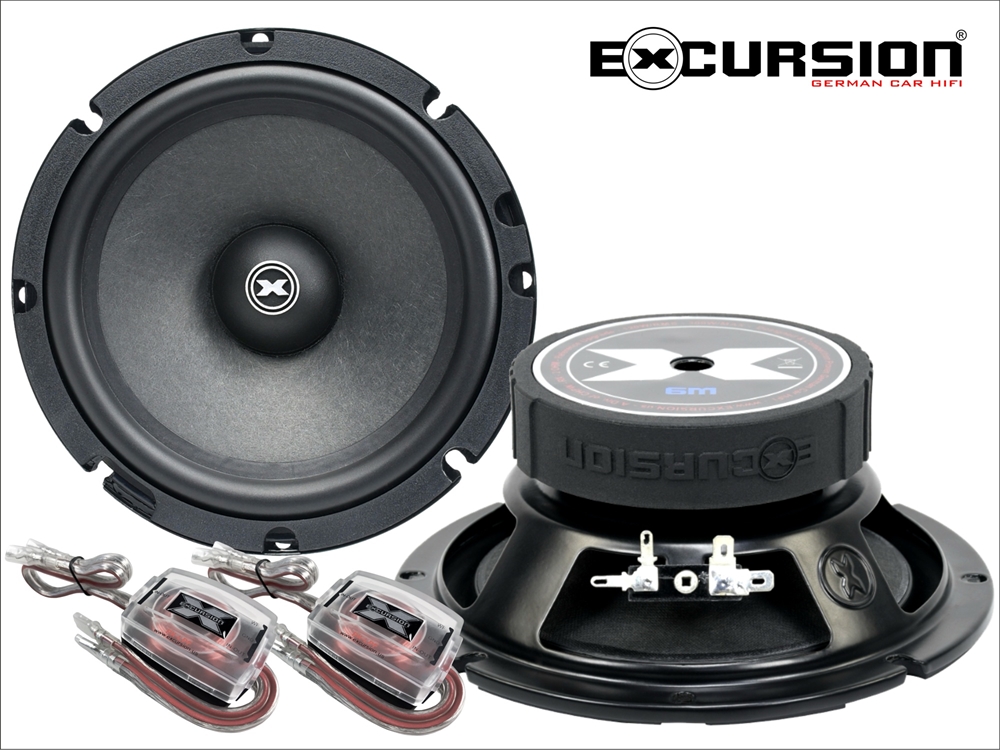

EXCURSION RX 6M REFERENCE SERIE 2 OHM

EXCURSION REFERENCE SERIE - 2Ohm
1" VC / RDC 2Ohm @ FS 58Hz
16.5cm DIN, 120 RMS / 300 Watt @ 92dB 1W/m
50 Hz - 12.000 Hz Frequency Response
63mm Mounting Depth @ 145mm Install Cutt Out Dia.

* 1" / 25.9 mm Copper VC @ top vented Kapton Former
* 30 Oz Motor Structure w. high grade Y35 Ferrite Magnet
* Dual Layer natural vital Wool Cone with Glasfibre stripe reinforcments and ADC Coating
* HDR (High Density & High Roll ) Rubytec Surrounds
* Phase Plugged Excursion Dustcap Design
* Pole Piece and bottom vented Excursion Steel Basket
* Selective high extension handcrafted NOMEX Spider
* PX-LPF Plug Crossover w. 14GA tinned OFC speaker cable.

Fs: 58Hz
SD: 132.7 sqCM
Vas: 10.57 Ltr
Cms: 380 µM/N
Mms: 16.3 g
Bl™: 4.53
Qms: 3.25
Qes: 0.63
Qts: 0.52
