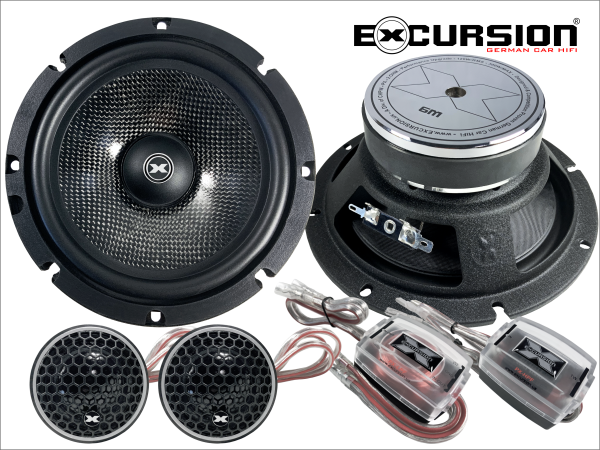

EXCURSION PX 6C 165MM PERFORMANCE 2-VEJS COMPO SÆT

EXCURSION PERFORMANCE SERIE - 2Ohm
16,5cm DIN, 120 RMS / 300 Watt @ 88dB 1W/m
63mm ET (OEM Upgradespeaker)
40 Hz - 20 KHz Frequency Response - SET

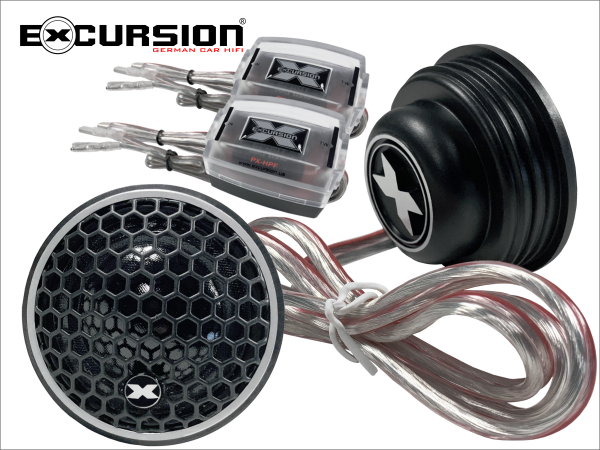

PX 1S - 26mm Silk Dome Competition Tweeter
* finest selected japanese Silk Dome Tweeter with ADC (Activ Damping Coating).
* Air Chamber design for low FS and efficient cooling of the Neodym Motor system.
* 50cm presoldered high grade tinned OFC (Oxygen Free Copper) Speakercable. Plug&Play
* high grade Dual parallel switched MKP Audio Capicator for flexible modification on demands.
* optional 2/4/6/8/10dB per Oct. Resistor Module, XLR2 / XLR4 / XLR6 / XLR8 / XLR10.
* optional available aluminium Globe Set for the demanding Car Audio Competition.

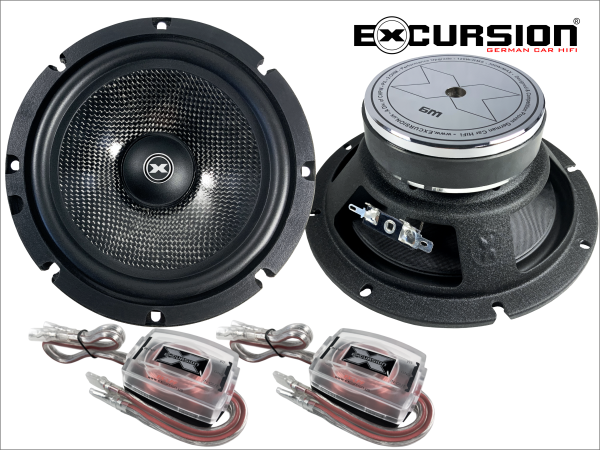

PX 6M - High End Midbass Loudspeaker
* 1" / 25.9 mm Copper VC @ top vented Kapton Former
* 30 Oz Motor Structure w. high grade Y35 Ferrite Magnet
* Tripple Layer Full Carbon / PMI / Glasfibre Cone Construction
* HDR (High Density & High Roll ) Rubytec Surrounds
* Phase Plugged Excursion Dustcap Design
* Pole Piece and bottom vented Excursion Steel Basket
* Selective high extension handcrafted NOMEX Spider
* PX-LPF Plug Crossover w. 14GA tinned OFC speaker cable.

Fs: 50Hz
SD: 132.7 sqCM
Vas: 10.48 Ltr
Cms: 410 µM/N
Mms: 19.29 g
Bl™: 4.24
Qms: 4.86
Qes: 0.75
Qts: 0.65

* praxis born Inline passiv Filter with 3M Sticker and minimized Dimension (50x37x24mm).
