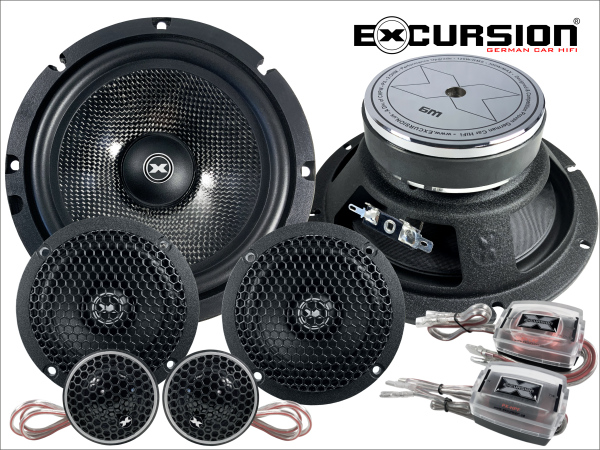

EXCURSION PX 6.3C 165MM PERFORMANCE 3-VEJS COMPO SÆT

EXCURSION PERFORMANCE SERIE - 2Ohm
3-Way, 120 RMS / 300 Watt @ 88dB 1W/m
40 Hz - 20 KHz Frequency Response - SET

PX 1S - 26mm Silk Dome Competition Tweeter
* finest selected japanese Silk Dome Tweeter with ADC (Activ Damping Coating).
* Air Chamber design for low FS and efficient cooling of the Neodym Motor system.
* 50cm presoldered high grade tinned OFC (Oxygen Free Copper) Speakercable. Plug&Play
* high grade Dual parallel switched MKP Audio Capicator for flexible modification on demands.
* optional 2/4/6/8/10dB per Oct. Resistor Module, XLR2 / XLR4 / XLR6 / XLR8 / XLR10.
* optional available aluminium Globe Set for the demanding Car Audio Competition.

PX 3M - 80mm Full Range Loudspeaker
* 1"/25.5mm CCAW Voice Coil on top vented Kapton Former
* exklusiv EXCURSION PX N38 Neodymium Motor Design.
* handmade and selected NOMEX Spider
* handmade low resistant CLOTH surrounds
* Wool Glasfibre Composite Cone with 3D Dustcap
* Fully open massiv diecast Frame with Hexagon Top Grill
* Optional available aluminium Decor for the Car Audio Competition
* PX-LPF Plug Crossover w. 14GA tinned OFC speaker cable.

Fs: 175Hz
SD: 30.1 sqCM
Vas: 0.44 Ltr
Cms: 340 µM/N
Mms: 2.45 g
Bl™: 2.79
Qms: 2.88
Qes: 1.16
Qts: 0.82

PX 6M - High End Midbass Loudspeaker
* 1" / 25.9 mm Copper VC @ top vented Kapton Former
* 30 Oz Motor Structure w. high grade Y35 Ferrite Magnet
* Tripple Layer Full Carbon / PMI / Glasfibre Cone Construction
* HDR (High Density & High Roll ) Rubytec Surrounds
* Phase Plugged Excursion Dustcap Design
* Pole Piece and bottom vented Excursion Steel Basket
* Selective high extension handcrafted NOMEX Spider

Fs: 50Hz
SD: 132.7 sqCM
Vas: 10.48 Ltr
Cms: 410 µM/N
Mms: 19.29 g
Bl™: 4.24
Qms: 4.86
Qes: 0.75
Qts: 0.65

* praxis born Inline passiv Filter with 3M Sticker and minimized Dimension (50x37x24mm).

Shipping:
- 2 pc PX-1S
- 2pc PX-3M
- 2 pc PX-6M
- 2 pc PX-HPF
- 2 pc PX-LPF
- 2 pc PX-WFA (80cm 14GA tinned OFC Speakercable with PX Connectors)
- Owner Manual

Optional:
- 2x PXI AG (Aluminium Globes for the PX-1S)
- 2x PXI AD (polished Aluminium Deco Ring for the PX-3M in visual combination with PXI AG aluminium Globes of the PX-1S)
- 1x PXI SC (10m 14GA tinned OFC orign quality PX System Speakercable with PX Connectors)
- 2x PXI GR6 (Hexagon Protection Grill)
