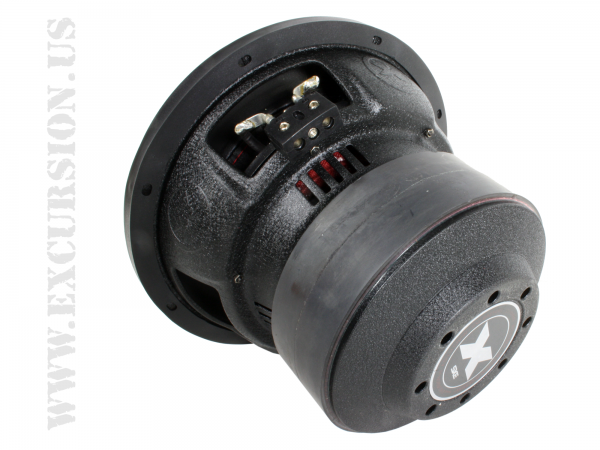

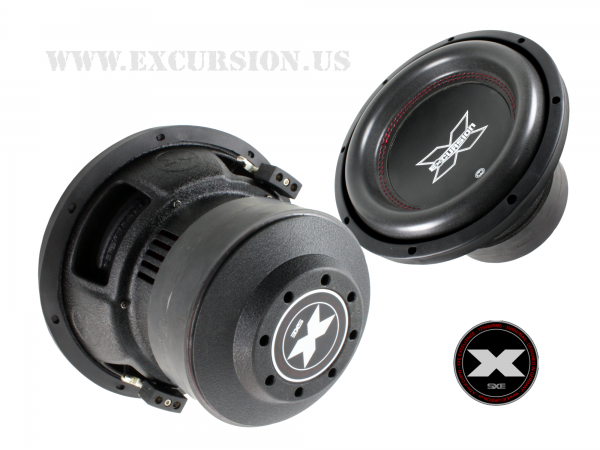

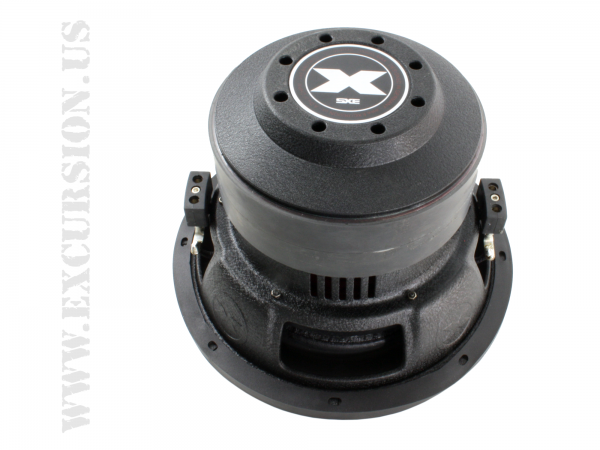

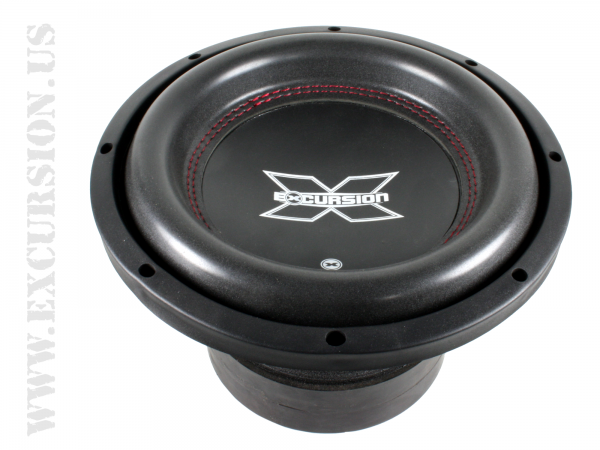

EXCURSION EXCELLENCE 10" DOBBELT 4 OHM

Varenr.: SXE.v2 10 D4
  • PRIS ER PR. Stk
    Pris ved køb af 1 Stk,2.249,00  DKK
Vælg svingspole
På lager hos os

Download manual
10" / 25cm - 2x4Ohm - 3"CCAW 4layer USA
1200 RMS / 3500 W - 350oz Y30 Dual Stack
MD=170mm ID=232mm OD=262mm 11.5kg
Dual Composite red linear Spiders + Rings
Dual 8GA Terminals - 12 GA Dual Tinseal
Red stiched HDR Surround, inverse DC

VC Roll Range Height 60 mm
XMAX linear 24 mm
BL @ Series 9.13
Suspension Compliance Cms 0.046
Mechanical Q Factor Qms 6.32
Electrical Q Factor Qes 0.69
Total Q Factor Qts 0.62
Moving Mass Mms 204.03 g
Eq.Cas Air Load( liters) VAS Liter 9.13
Resonant Frequency Fs Hz 49
Effective Piston Area SD 314.1

EXCELLENCE ... what is excellent in the T generation when new materials have moved all boundaries? Where, on the dark side of the TRANSFORMERS, one encounters set maximized price / performance limits, in the light of the EXCELLENCE development, this T platform is brought to its final feasible technical limits. SXE in the small T chassis clearly takes its bigger brothers as its role model and this "super" lightweight Bastard makes it extremely good and sees itself as the still unknown underdog in the EXCURSION world.
So it is primarily the inner values ​​which make this excellent difference and a knowing eye that exposes the wolf in sheep's clothing. Deep researched in the tuning box we have here with a purebred american aluminum round wire coil used which equal to 1/3 more winding height of 60mm meet XMAX parameters of the bigger brothers. Carefully wrapped on our proven ventilated aluminum former, we clearly save on sluggishly moving mass, but only with an additional spacer are these upper class values ​​of the US machine at least in our 12 "EXCURSION T basket also practically possible.
Conceptual reserves of the centering are here in duplicate with reinforced linear NOMEX centering available and perfectly locked with multiple screwed rings in blood red design. Accents that repeat in the seams of the oversized high-density surrounds and lettering. Now in the version.2 with visible seams which reduces the EXCELLENT face of the inverse dust cap and thus visually with more depth and area receives the ventilated intermediate chamber to the pulp cone. Important for the popular Fat sound character of this famous sandwich construction.
Of course you can find all known further EXCURSION standards but at SXE we finally go with a 350oz Dual Stack engine structure to the final mechanical limit of the EXCURSION T basket. With the much longer pole plate and its oversized ventilation holes, SXE retains the charm of a revolver, but the black hammered paint not only visually enhances the caliber with which SXE wants to be charged is MAGNUM.

Our Terminals accept as standard up to 8GA power speaker cables, but are even designed for some optionial Dual Hollywood ENERGETIC Terminals (HPST8) to step from 4x 8GA up to 8x 8GA INPUT. SXE.v2 continue truely a very long history of value and excellence according our all you need philosophy. We are proud to have it done and able to serve with those Bastards for your trunk.Go with your Underdogs into your challenge and shake all the sleepy big boys up.


Since 2014 EXCURSION offer a praxis born range of Loudspeaker, Subwoofer and Amplifiers based on 30years of experience and engineering. Design, Innovation and Improvements are sourced from all those Challenges of the Car Audio Competition Associations all over the world. This selection of leading and winning high technology route direct into our product lines in order to offer a wide range of consumers Know How and Value which they could usually not access. With german leadership in the global production our authorizied EXCURSION factory partners leave no doubt to meet standards we as german brand are expected for.

Next to an unbeatable Price Performance the praxis form follow function philosophy mirror the prior target motivation of EXCURSION. Everything of past and presence is taken into doubt first, in order to get rethought with all its Details again for a further improve in result. Those results like compact mini sized high technology SMD or CHIP built car audio amplifiers who can meet military standards in caftmansship or new age Plug & Play concepts going through all steps in the line of amplifier till speaker, keeping always flexbile ENERGETIC upgrade improvements or optional upgrade with professional multichannel DSP or BlueTooth connection for a lossless High End streaming via your personal Smart Phone.

With selection of the highest technology global factory partners we at EXCURSION follow and guarantee a tradition of value and exellence for our products. This without mark ups to our car audio customer for horrible marketing and lobby pampering expenses or any half naked women in order to attract more than the value or performance those products mostly can have. We believe or challenge start after you have closed your eyes, after installation & purchase and be asured we love to get compared .... and even more if you comment and let us know about your judging.

EXCURSION …is all you need
