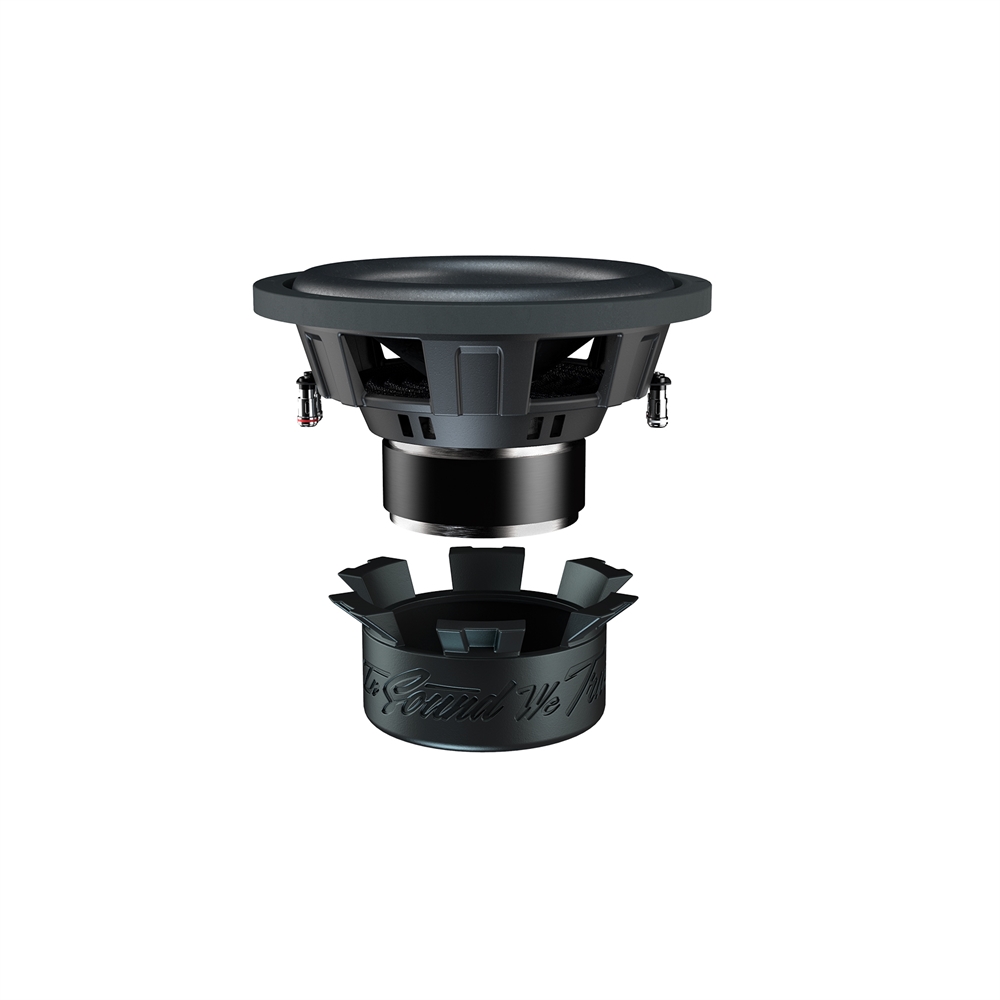

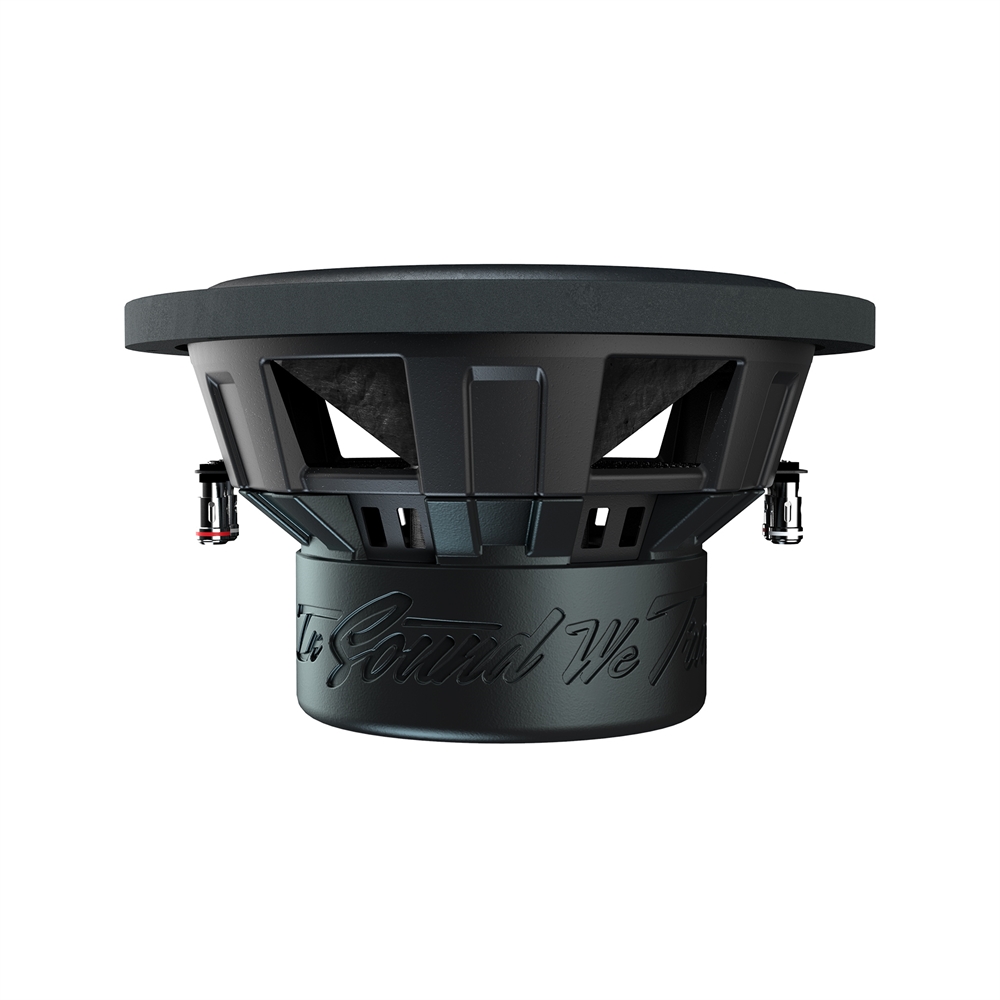

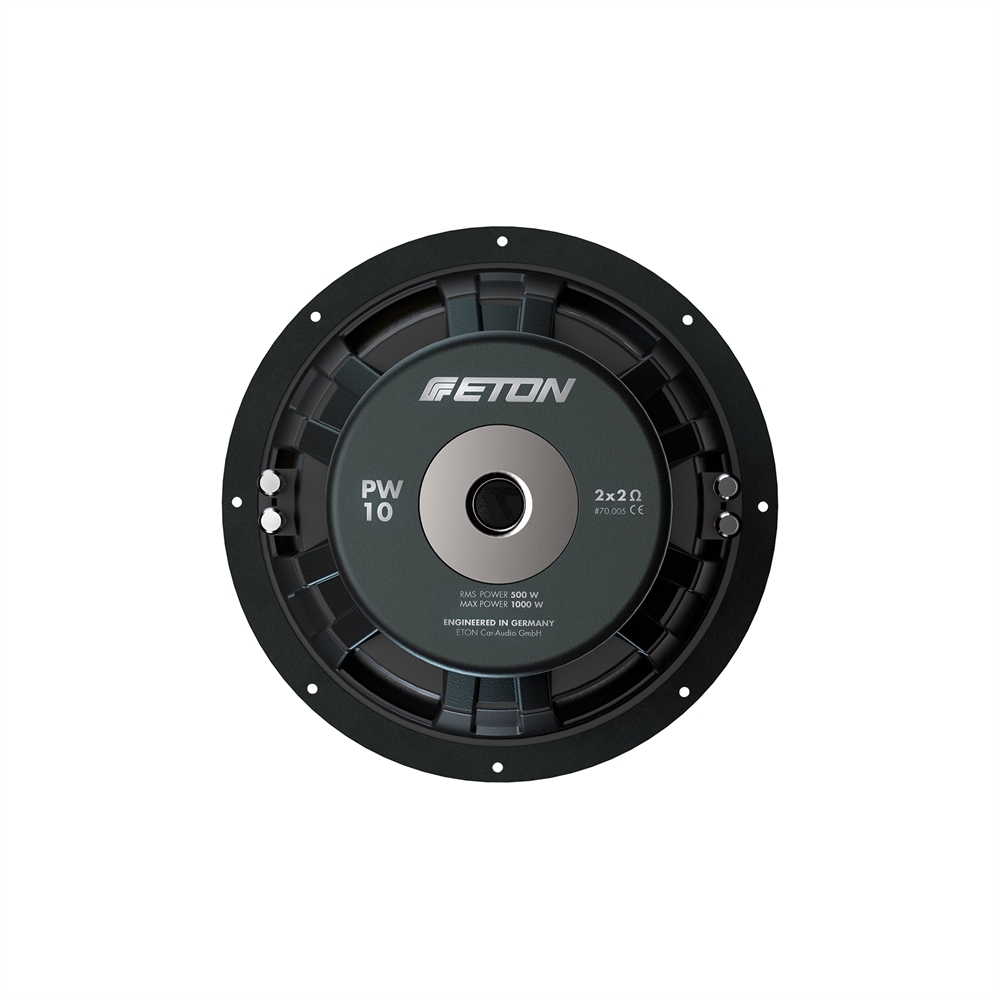

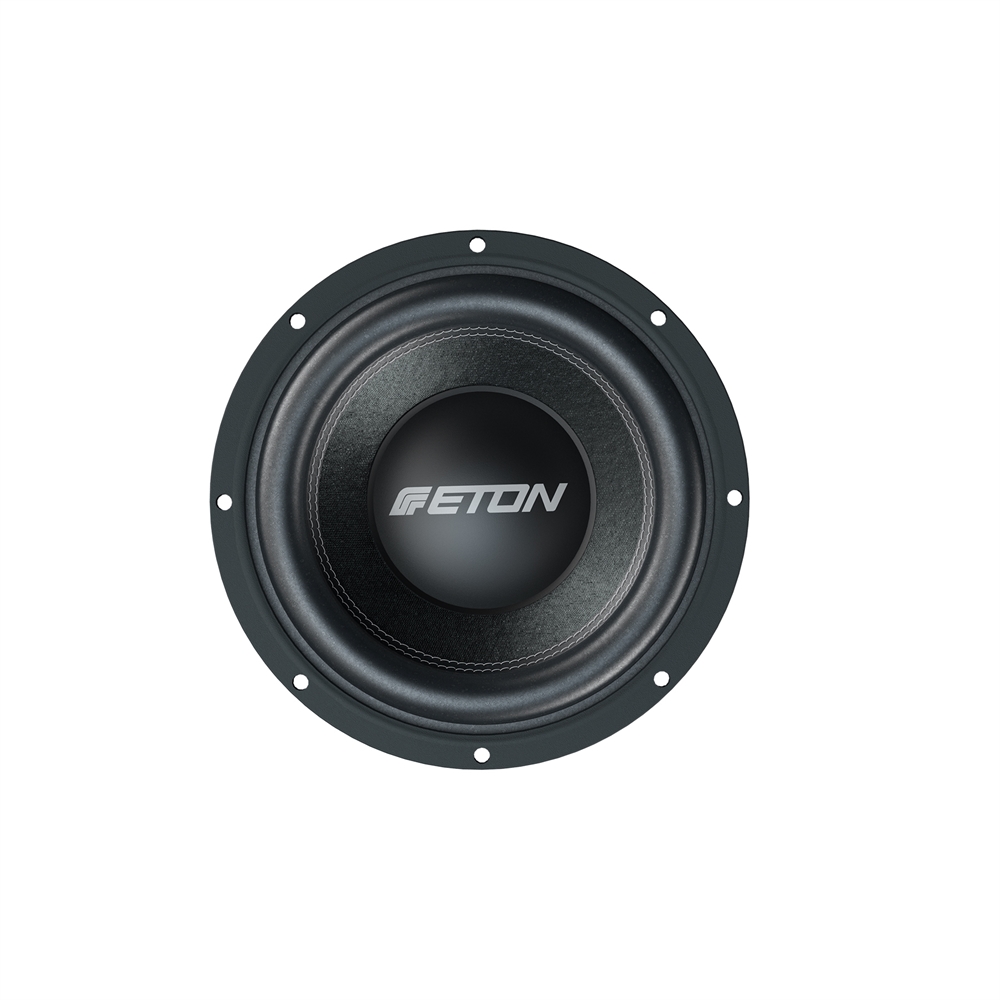

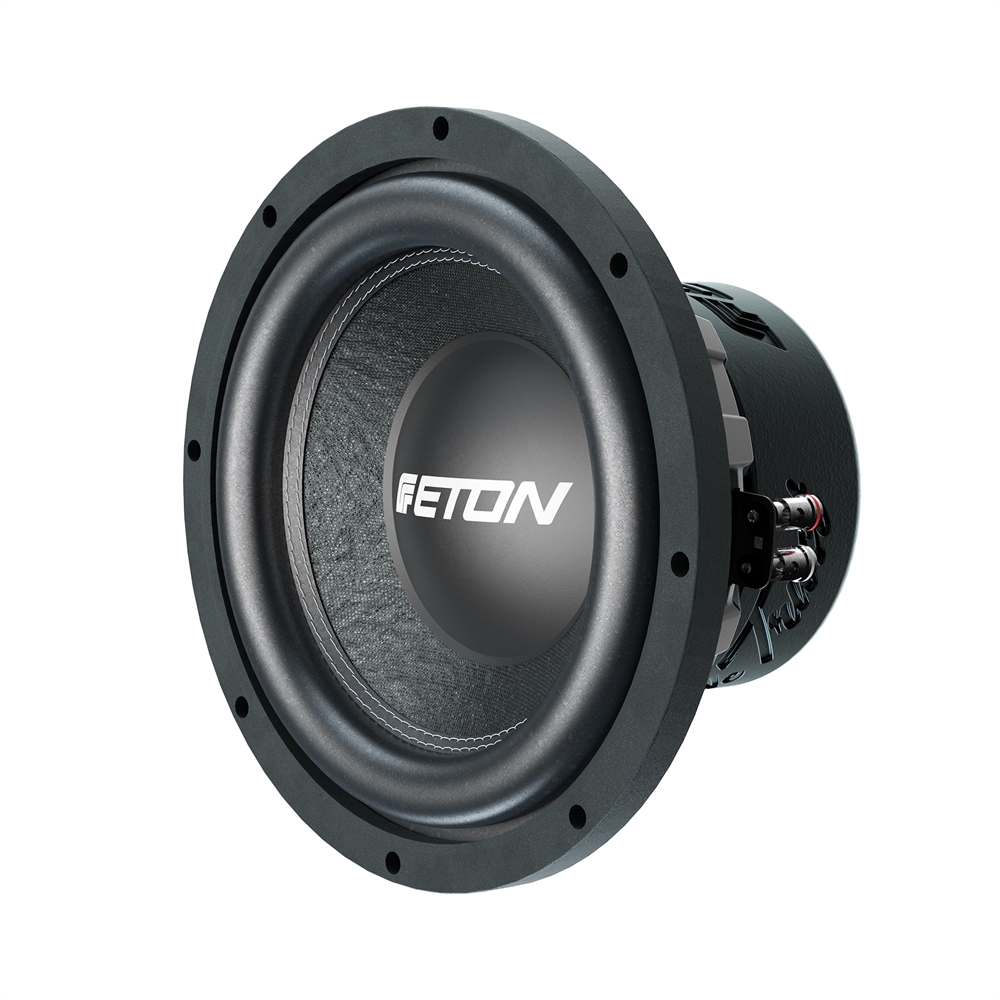

ETON PW10 2x2 OHM

250 mm (10 inch) subwoofer in powder coated metal basket with loadable 64 mm aluminium dual voice coil, pressed and stiffened paper cone with long excursion surround, 2 x 2 ohms impedance, 500 W RMS, 1000 W music power handling, large core hole for optimum ventilation, strong ferrite magnet with silicone coating/protection, 278 x 135 mm (DxH), 84 dB characteristic sound pressure level, 6.0 kg.

TECHNICAL DATA

Nominal impedance Zn (Ohm) 2 x 2 Ohm
DC resistance Re 3.8 Ohm
Resonance frequency fs 1W / TSP (Hz) 33.6
Total Q QTS 0.510
Electrical Q QES 0.560
Mechanical Q QMS 5.753
Equivalent air volume of suspension VAS (dm3) 20.330
Force factor BL x l (Tm) 15.720
Suspension compliance CMS (mm/N) 0.151
Total moving mass MMS (g) 148
Voice coil diameter 60
Voice coil inductance Le (mH) @ 10 kHz 1.844
Effective piston area SD (cm2) 308
SPL (dB) *bei 1 W / 1m 84.5
Rated power / music power (W) 500/1000 W
