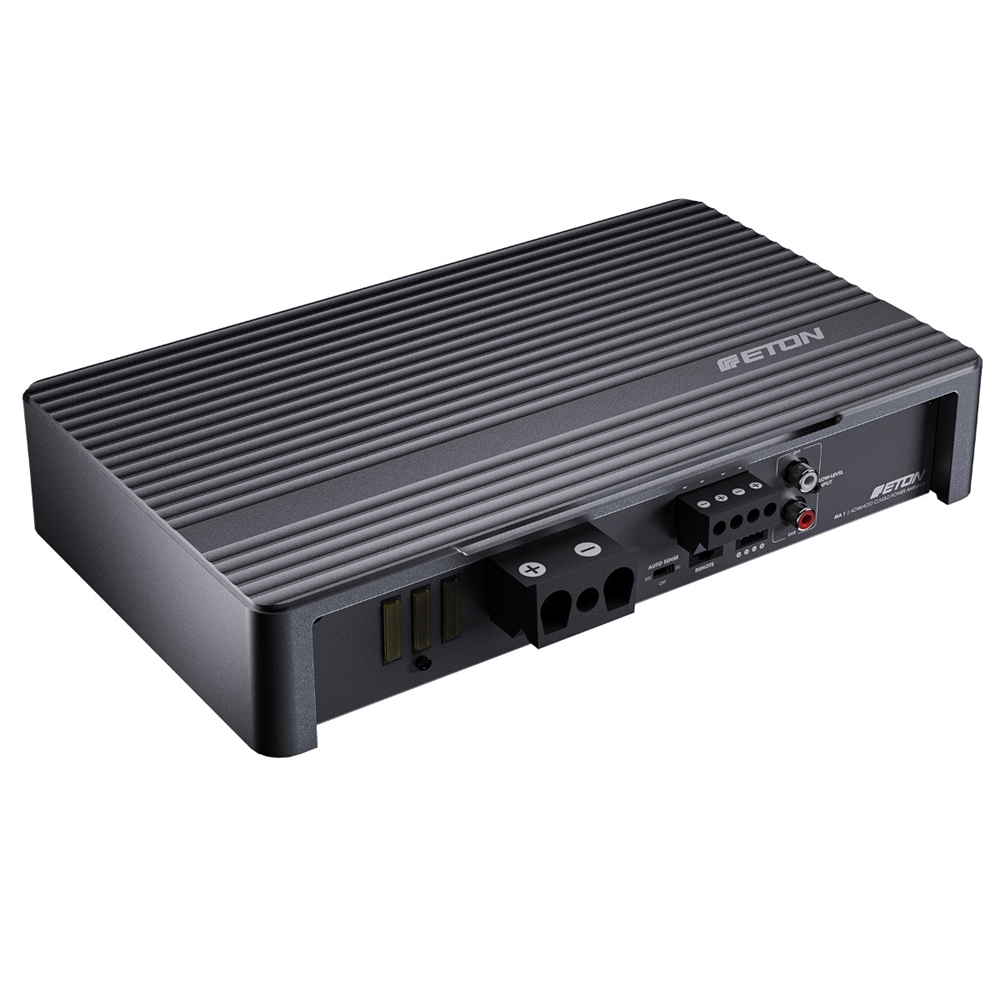

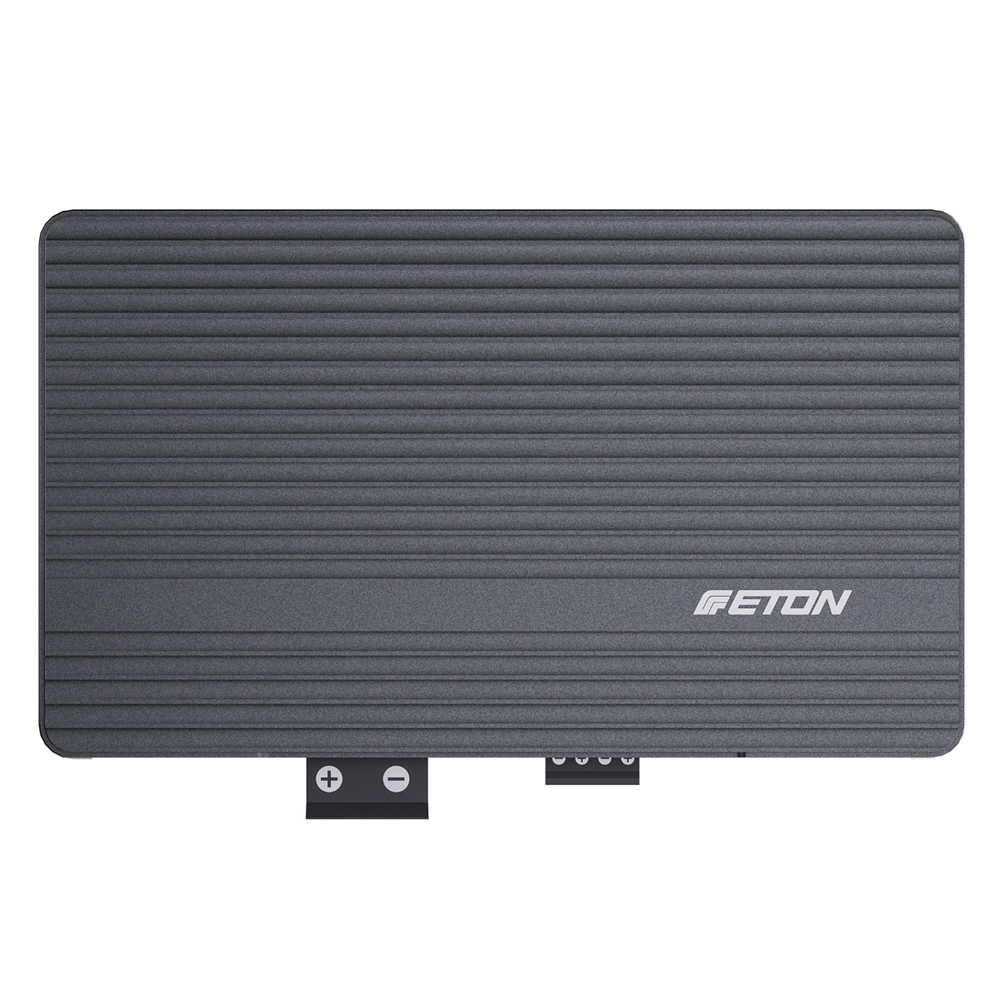

ETON MA 1 MINI MONO FORSTÆRKER

Newly developed 1-channel monoblock Advanced Class-D power amplifier in a modern, timeless die-cast aluminum housing with top features. High performance amplifier with 1 x 690 W RMS at 4 Ω, 1 x 1120 W RMS at 2 Ω and 1 x 1510 W RMS at 1 Ω. Also equipped with the latest features: Active filter (subsonic & low-pass), adjustable high-level signal input voltage and adjustable signal resistance, auto-turn on function (SIG / DC detection), suitable for vehicles with start-stop function, ultra low THD+N distortion behavior, high and low level inputs, LED status lightbar, removable housing cover (logo can be rotated 180°), integrated adjustment tool. Hidden mounting points or variable mounting feet, stacking function of several amps, removable power & audio signal plugs, wired level remote control, incl. mounting accessories. Engineered in Germany.

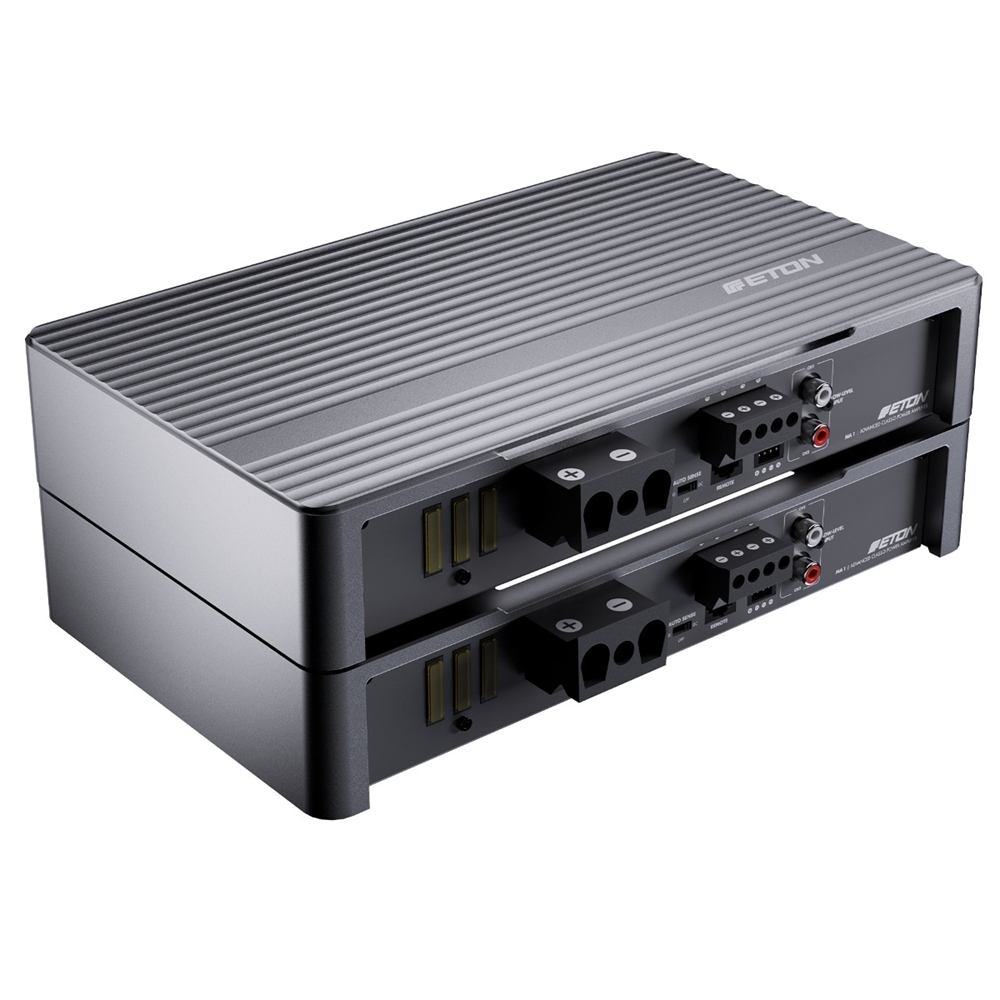

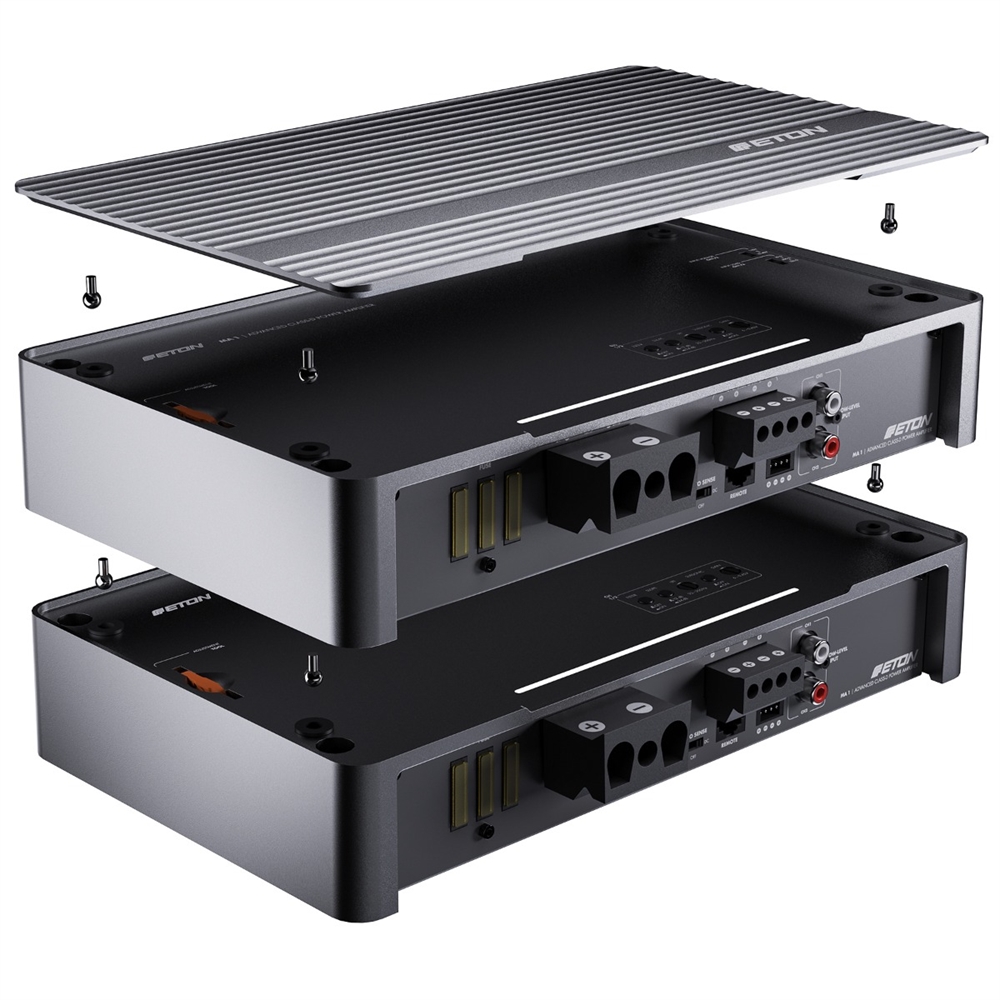

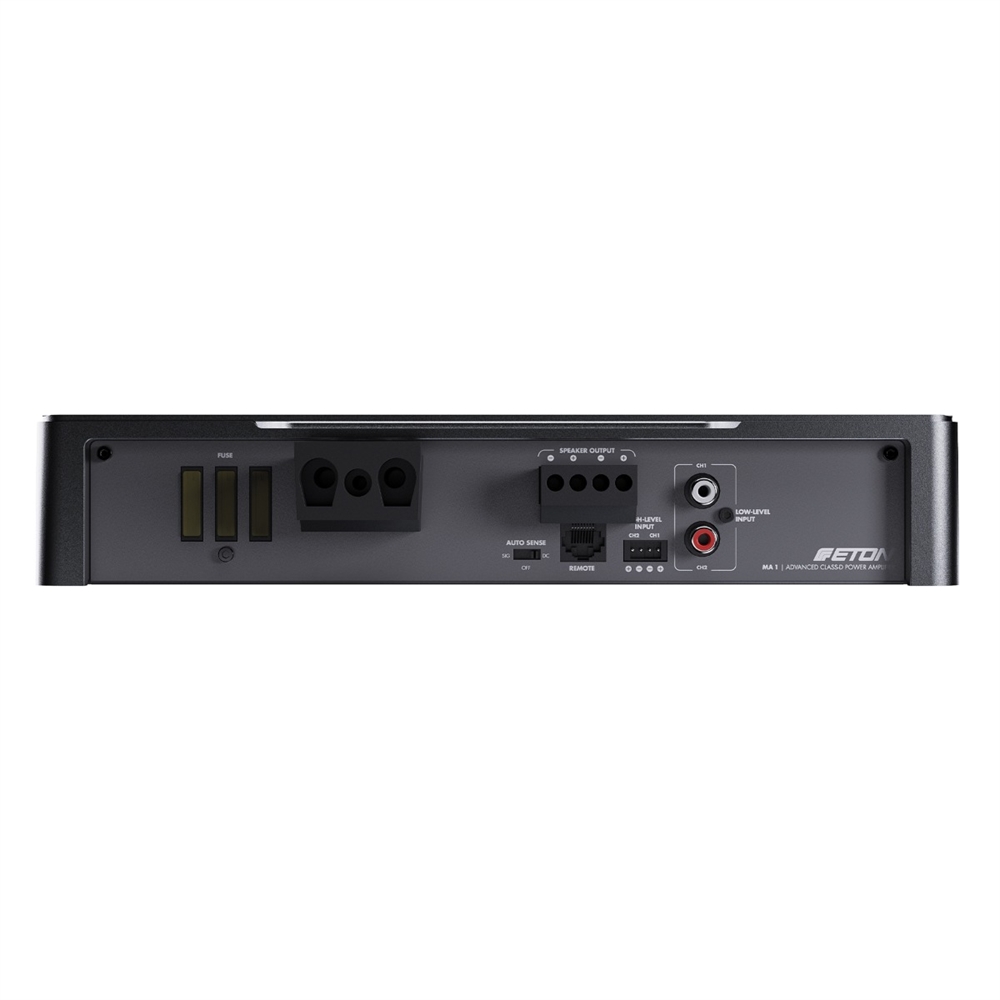

State-of-the-art Advanced Class-D amplifier technology in a smart installation dimension of just 270 x 160 x 51 mm. High-quality die-cast aluminum housing in gunmetal finish. High-performance 1-channel monoblock amplifier with 1 x 690 W RMS at 4 Ω, 1 x 1120 W RMS at 2 Ω and 1 x 1510 W RMS at 1 Ω, signal-to-noise ratio 96.5 dB, damping factor @ 4 Ω >340, Ultra Low-THD+N 0.003 @ 100 W 60 Hz, subsonic filter 30 Hz, active filter low-pass: 25 - 250 Hz with adjustable slope 12 dB / 24 dB Oct, Auto Sense-On function: SIG / DC, 2 x high level inputs, 2 x low level inputs (RCA), High level input signal voltage: 1 - 15 V | 15 - 40 V, High level input resistance: 10 | 150 | 600 Ω, adjustable gain 0.45 V - 6 V, removable connection plugs (power and audio signal), removable aluminum cover (ETON logo rotatable 180° upside down), integrated adjustment tool for active filter and gain settings, LED status lightbar, stacking function of several amplifiers, hidden mounting by means of blind holes or easy mounting by means of removable and adjustable mounting feet, incl. Level remote control, high-level cable adapter, mounting feet and fixing screws. Engineered in Germany.
Kanäle
1
Verstärkertechnologie
Class-D
Amplifier power on 1 | 2 Ohm
1x1510
1x1120
W(RMS)
Verstärkerleistung an 4 Ohm
1x690
W(RMS)
Digitaler Soundprozessor (DSP)
no
Auto-Sense On Funktion
SIG
/
DC
Hi-Lo Eingänge, SPDIF Eingang
2
/
no
Lo-Level Subwoofer Ausgang
no
Pegelfernbedienung
yes
Maße (LxBxH)
270x160x51
mm
