ETON GRAPHIT 10-4 2x4 OHM ULTIMATE SUBWOOFER

Legends cannot be invented, they are born. Our best systems and subwoofer series combine our know-how from over 35 years of loudspeaker construction with the best materials. Designed and manufactured in Germany. This is pure quality that you can see and above all hear! Thus, the new GRAPHIT series embodies all our quality awareness, our demand for sound and performance. This series impresses with its design and performance: 2 x 4 Ohm dual voice coil, extremely termic loadable. Extremely strong ferrite magnet with high quality manufactured iron parts with ventilation holes and large molded core hole for optimal ventilation and avoid compression effects. New carbon fleece sandwich diaphragm, highly torsion resistant. Newly developed connection terminals and new aluminum die-cast basket. A subwoofer in a class of its own for extremely fast, dynamic punches, hard-hitting attacks and deeply impressive bass passages! Manufacturing and development Made in Germany.

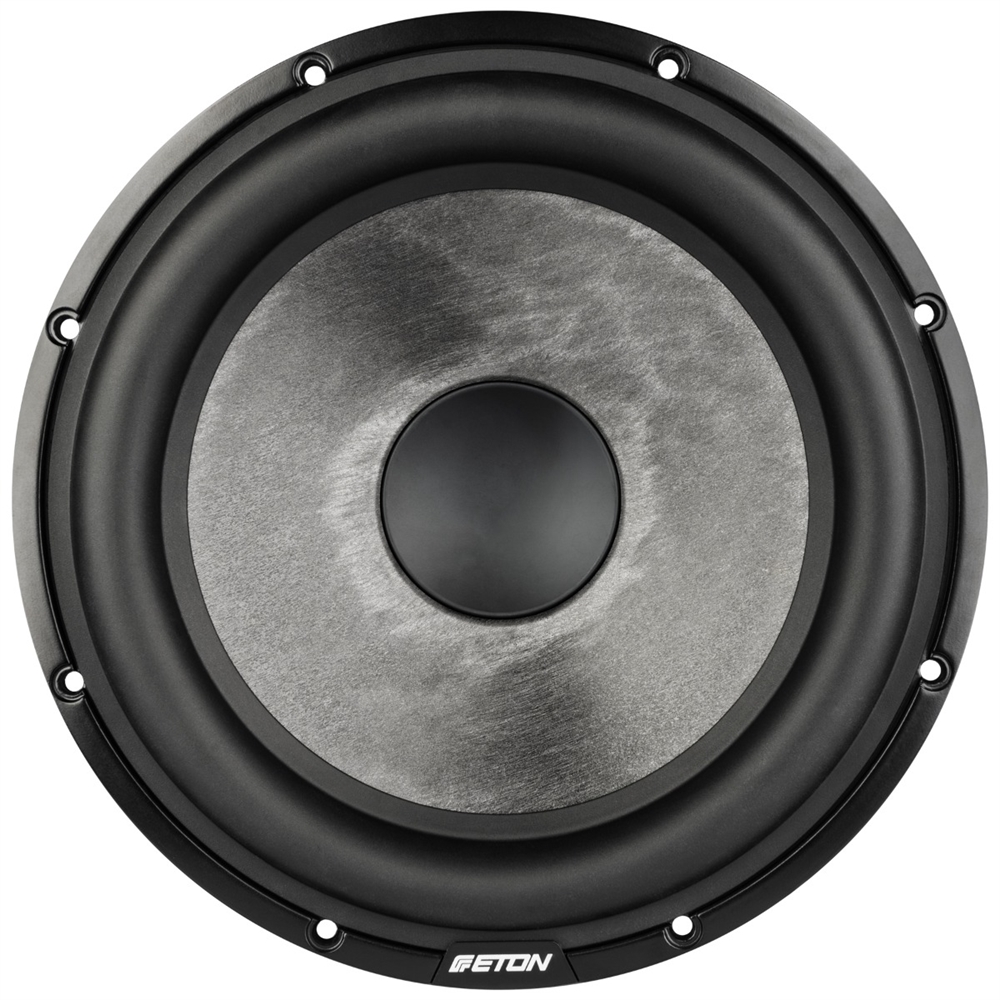

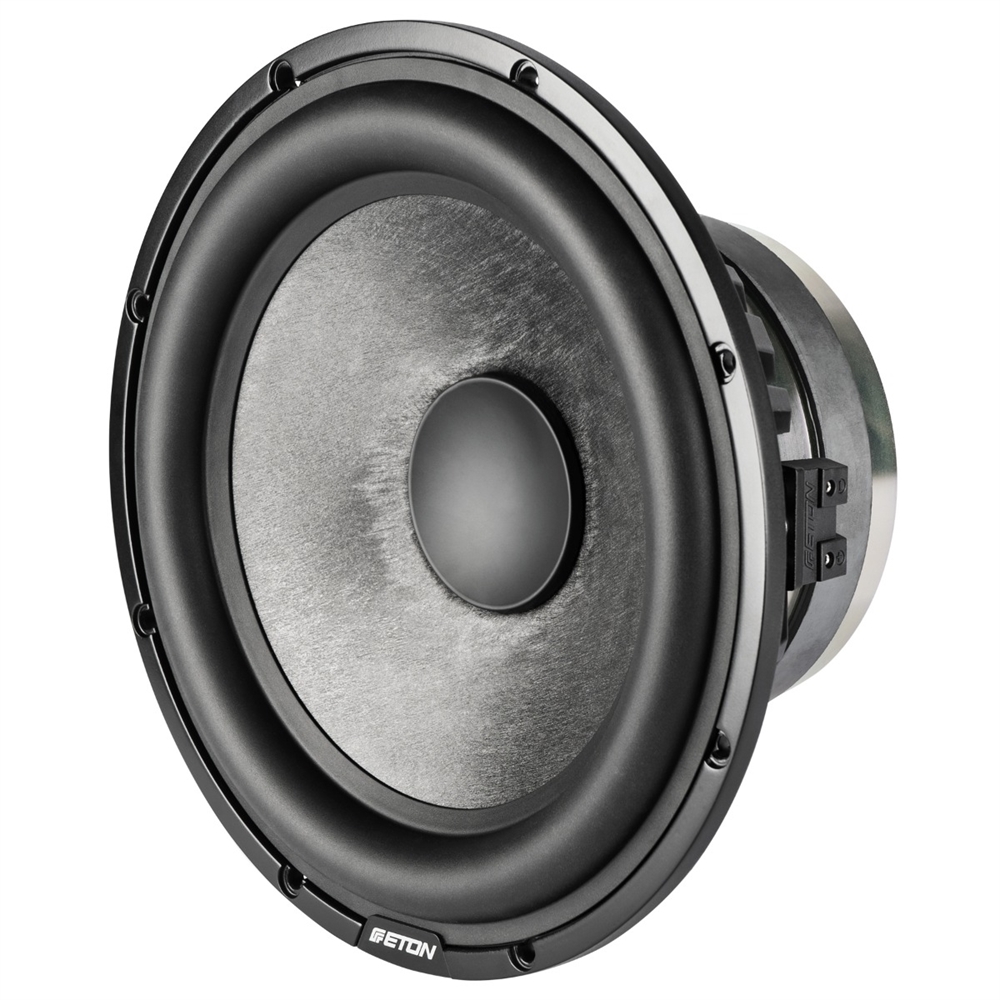

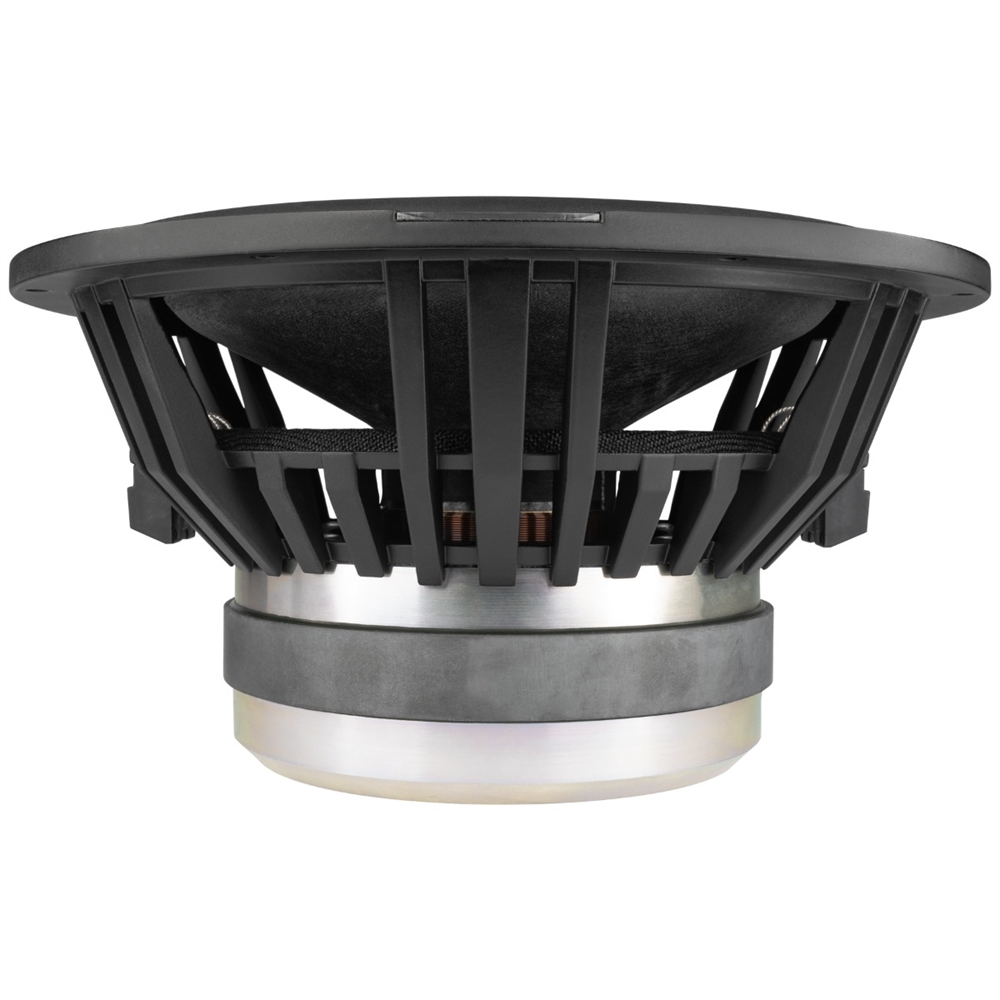

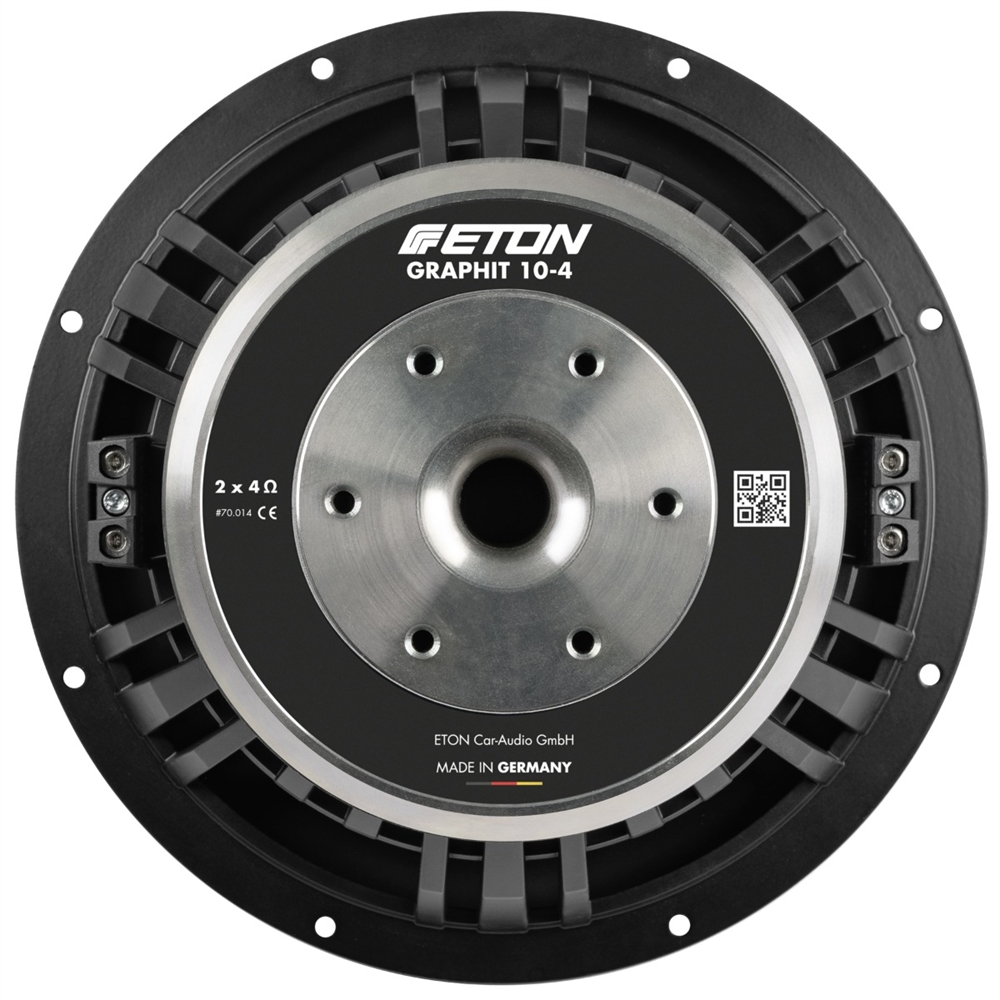

250 mm (10") high-quality dual voice coil subwoofer with heavy-duty 63 mm dual voice coil with 2 x 4 ohm impedance, 600 W (RMS) rated power handling, 1000 W max. music power handling, long excursion surround with specially developed aluminum die-cast basket and new carbon fleece sandwich membrane for extremely impulsive music reproduction. Extremely strong ferrite magnet with specially developed ventilation, newly developed connection terminals. 85 dB characteristic sound pressure, 265 mm outer diameter, 235 mm cut-out diameter, installation depth 124.5 mm.
Subwoofer250 mm (10")
Impedance2x4 Ω
Nominal power (RMS2x300 W
Music power2x500 W
Sound pressure level85 dB
Outer diameter265 mm
Installation depth124,5 mm
