ETON GA 4 HIGH END SQ CLASS-D FORSTÆRKER

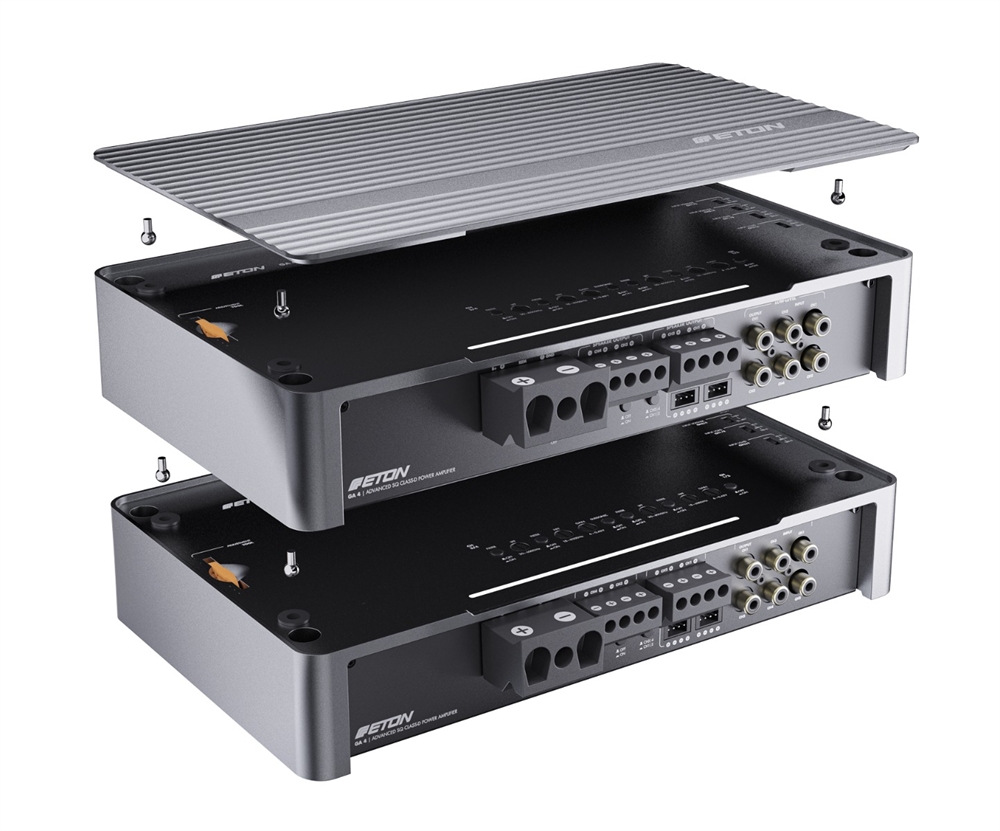

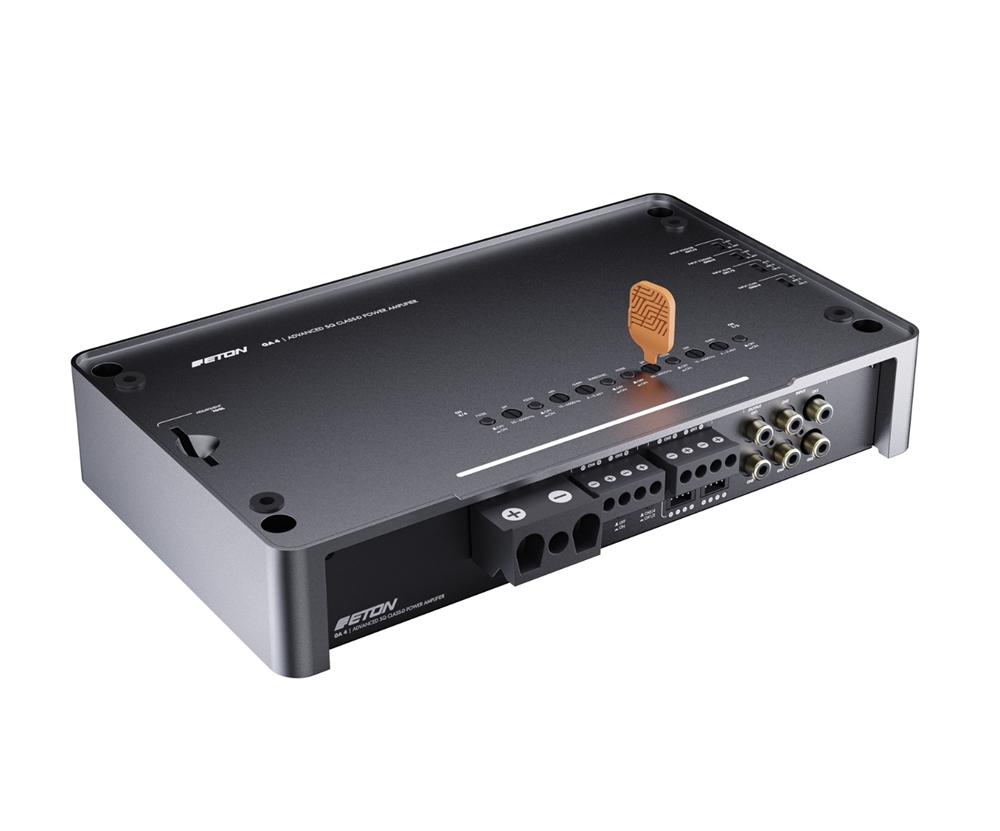

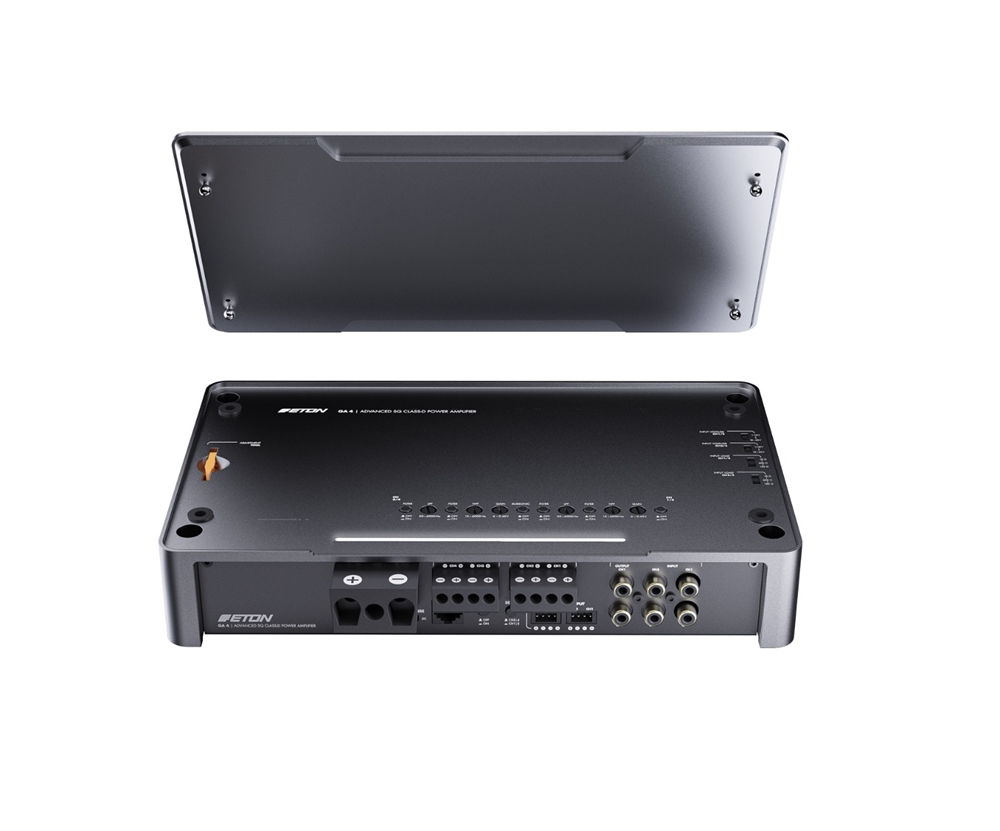

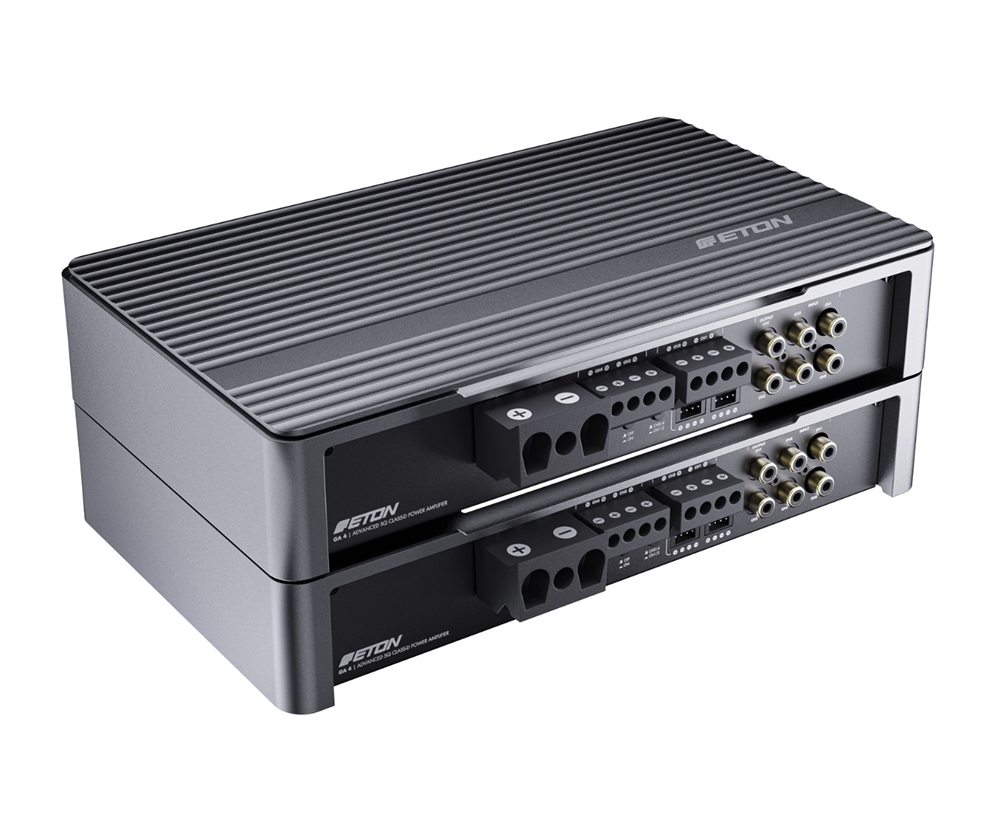

High-quality 4-channel Advanced Class-D sound quality amplifier with 4 x 220 W RMS at 4 ohms, 4 x 310 W RMS at 2 ohms, and 2 x 640 W RMS at 4 ohms bridged. Adjustable high-pass filter 15–6000 Hz / 12 dB, low-pass filter 30–6000 Hz / 12 dB, subsonic filter at 25 Hz / 12 dB with HPF switchable to 24 dB, Auto-Sense On function (DC/SIG), adjustable high-level input signal voltage per channel pair: 1–15 V & 15–40 V, and adjustable input impedance 10/150/600 Ω. Adjustable input sensitivity 0.45 V - 6 V (GAIN), signal-to-noise ratio 102 dB, damping factor @ 4 Ω >100, ultra-low THD+N 0.003% @5W 1kHz, crosstalk -76 dB, start-stop capable, high- and low-level inputs, removable connectors for power and audio signal, variable mounting feet and hidden mounting option, stacking function for multiple identical amplifiers (GA 4, MA 6 & MA 1), high-quality die-cast aluminum housing with removable and rotatable top plate, LED status light bar, 24 K gold-plated RCA/cinch sockets, integrated adjustment tool, compact installation dimensions 270 x 160 x 51 mm (LxWxH). Engineered in Germany.
Kanaler
4
Teknologi
Class-D
Amplifier power on 1 | 2 Ohm
–
4x310
W(RMS)
Output Rms i 4 Ohm
4x220
W(RMS)
Auto-Sense On Funktion
SIG
/
DC
Hi-Lo Indgang
4
Lo-Level Subwoofer Udgang
yes
Bassremote
yes
Str. (LxBxH)

270x160x51
mm
