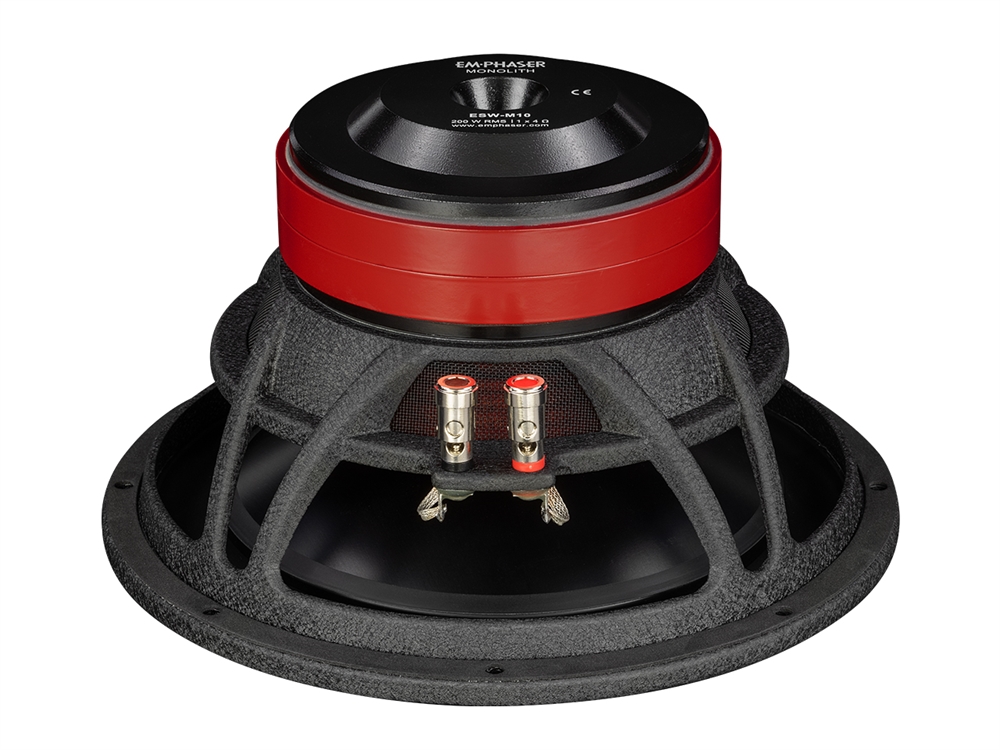

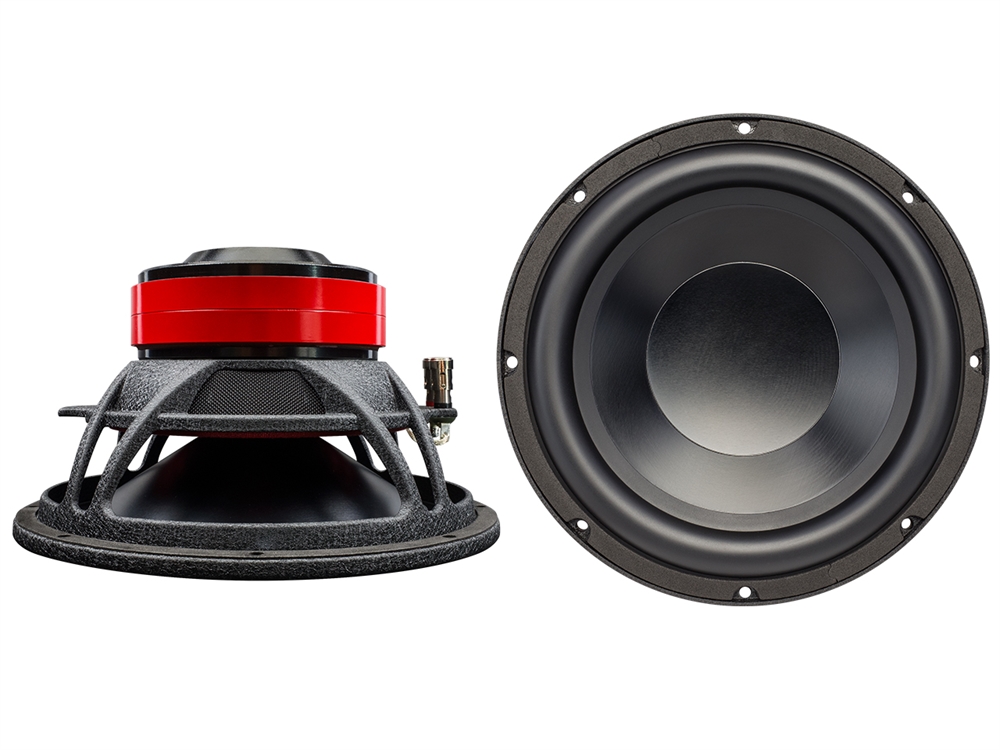

EMPHASER ESW-M10 MONOLITH 10" SUB 1 x 4 OHM

Monolith Subwoofer
All components of this MONOLITH subwoofer have been carefully selected and precisely coordinated.
Due to its hardness and high rigidity combined with its low weight, the Aluminum membrane is ideally suited for detailed and extremely low-distortion reproduction quality in the intended area of application.
25 cm subwoofer
Die cast aluminum basket
Sr-Fe double magnet
Aluminum cone
Butyl rubber surround
Connex spider
Polyimide voice coil former
4-layer copper voice coil
Extended center pole / center pole vent

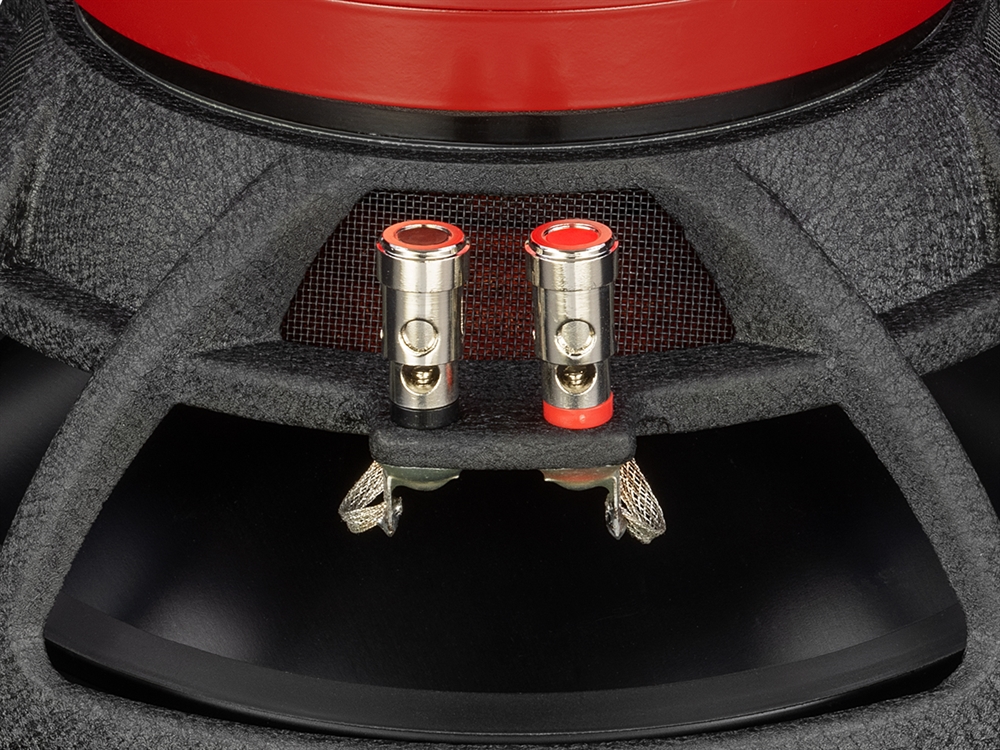

Push terminal
∅ 25 cm Subwoofer
Frequency Response: 25 Hz – 100 Hz*
Nominal Power Handling: 200 W RMS*
Nominal Impedance: 4 ohms
Voice Coil Diameter: 2" / 51 mm
Voice Coil Winding Height: 25.2 mm
Mounting Cutout Diameter: 238 mm
Mounting Depth: 138 mm
*Exact performance data depending upon actual enclosure!
