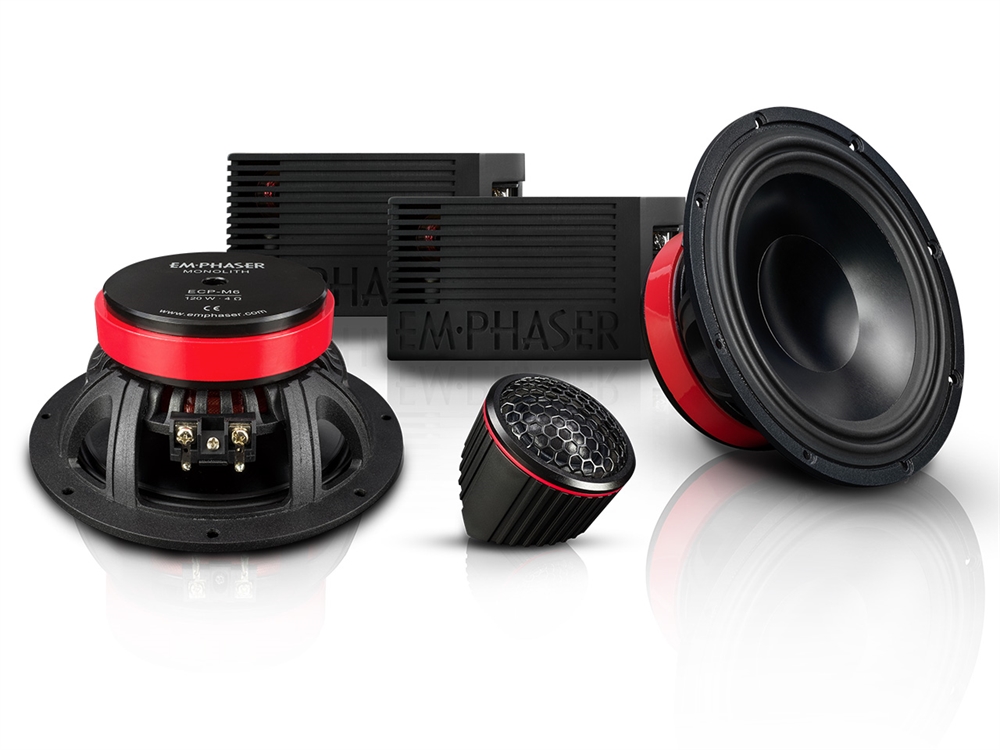

EMPHASER ECP-M6 MONOLITH 6,5" COMPOSÆT

Monolith Compo Series
Outstanding quality, timeless design, unique performance – the Monolith series not only offers demolition power, but also out-standing dynamics and special signal fidelity. Minimal distortion and a warm, clear sound are features that characterize these top component speakers.
KEY FEATURE WOOFER
Aluminum Diecast-basket with optimized temperature management
Strontium-Ferrite magnet motor
Aluminum cone with inverted Aluminum dust cap
Butyl-rubber surround
Two layer copper voice-coil, wound on temperature resistant and electrically neutral Polyimide voice-coil former
Long-living Connex-spider with woven tinsel leads
Gold-plated screw terminal
KEY FEATURE TWEETER
25 mm silk dome
Neodymium magnet motor
CNC-milled Aluminum-housing with low mounting depth
Grill with large hexagon holes for high sound permeability and low reflection
Mounting housing for the installation in two angles
KEY FEATURE CROSSOVERS
Separated crossover housings for tweeter and woofer for convenient installation. Secondly, there is no mutual interference between the two signal paths due to components that are too close together
Two crossover frequencies can be selected for the tweeter in order to be able to acoustically compensate for the spatial distance to the mid-range speaker depending on the installation situation
Use of high quality air coils, MKP capacitors and MOX resistors in the direct signal path
12 / 6 dB filter slope
Three-level tweeter volume attenuation
∅ 16.5 cm 2-way component system
Nominal power handling: 120 W RMS
Nominal impedance: 4 ohms
Frequency response: 60 Hz – 22 kHz
Sensitivity 1W/1m: 91 dB
Mounting diameter: 145 mm
Mounting depth: 64 mm
