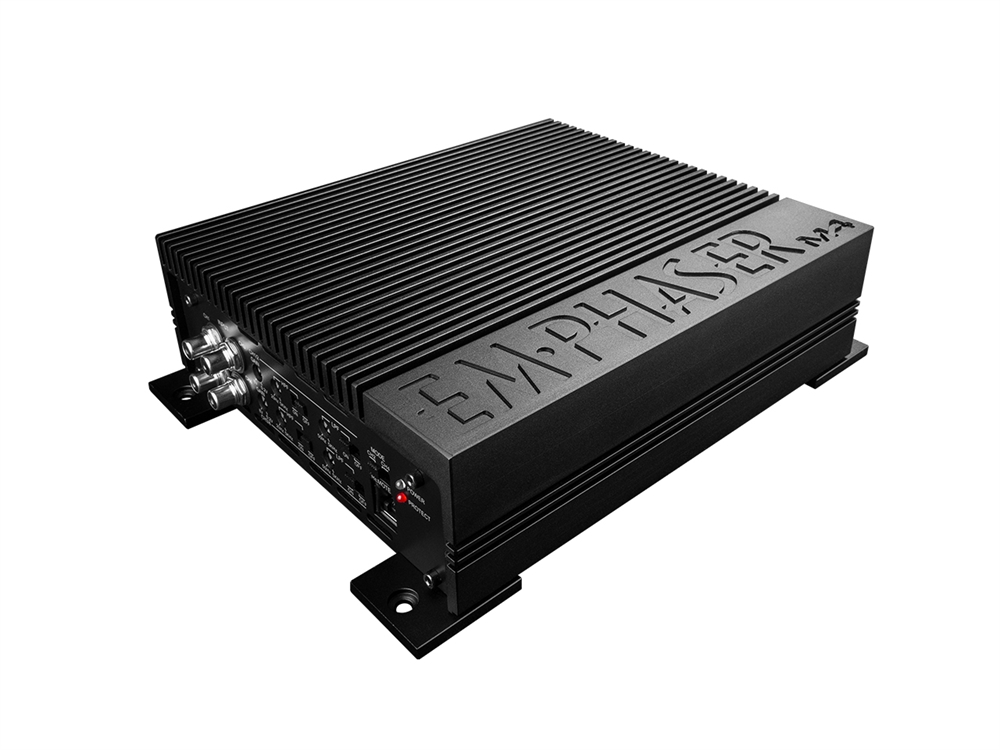

EMPHASER EA-M4 MONOLITH 4 KANAL

Monolith Amplifier Series
Outstanding quality, timeless design, unique performance – the Monolith series not only offers demolition power, but also out-standing dynamics and special signal fidelity. Minimal distortion and a warm, clear sound are features that characterize these digital top amplifiers. For those who need power, only one thing is more important than a lot of power: even more power. That‘s why EMPHASER has developed this class D amplifi er series – amps with exceptional performance.
Sand-blasted Aluminum heat sink with laser engraved logo and model number
High-End Tiffany RCA sockets
Stabile into 2 ohm loads stereo / 4 ohm loads bridged
Variable highpass filter: 20 – 5000 Hz 12 dB/oct.
Variable lowpass filter: 50 – 5000 Hz 12 dB/oct.
Sensitivity 0.2 – 8 V
Moulded High-Power terminal for cable diameter up to 35 mm2
Rated Power Output @ 4 ohms 4 x 105 W RMS
Rated Power Output @ 4 ohms
bridged 2 x 340 W RMS
Rated Power Output @ 2 ohms 4 x 165 W RMS
Frequency Response 10 Hz – 36 kHz
Signal to Noise Ratio > 85 dB
Dimensions (W x H x D) 240 x 65 x 185 mm
