EM PHASER GRAVITY ECX-G5 5" COAX SÆT

GRAVITY ECX-G5 Coax - The new lightness of good sound
GRAVITY stands for accentuated and warm sound - without much installation effort

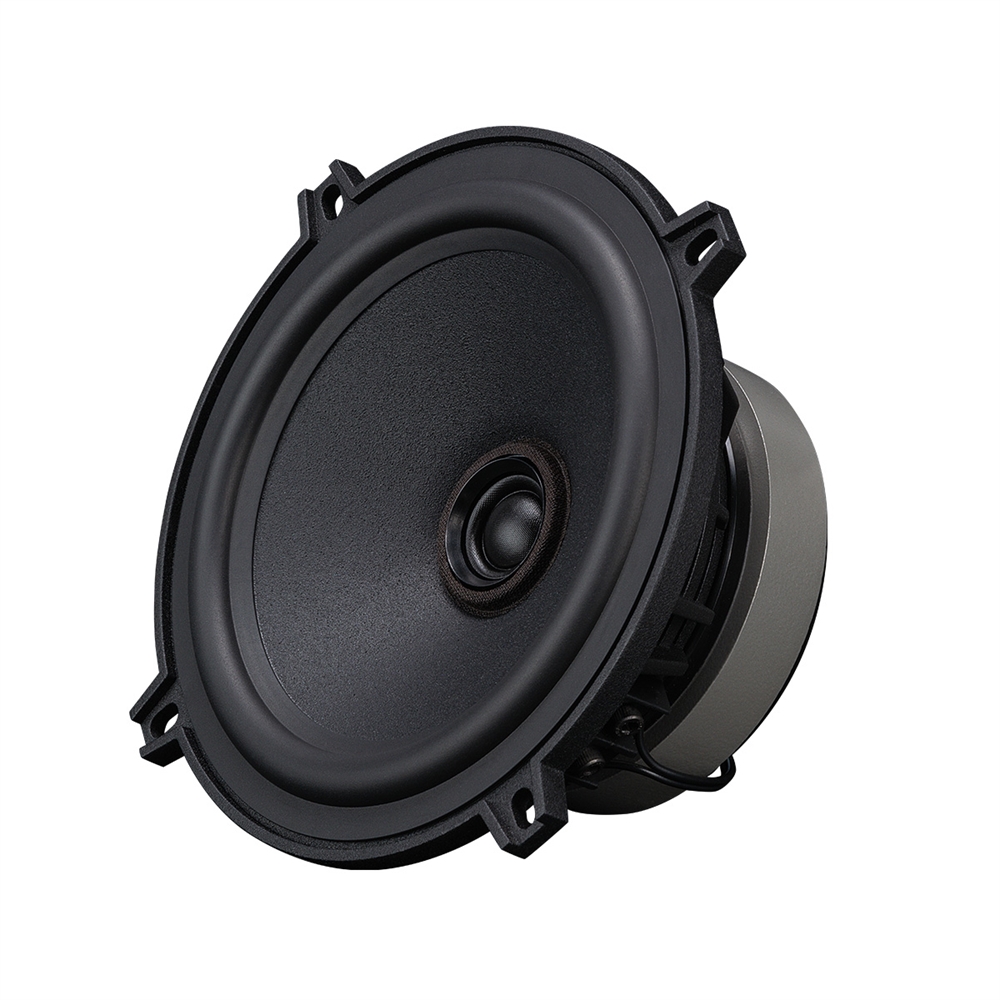

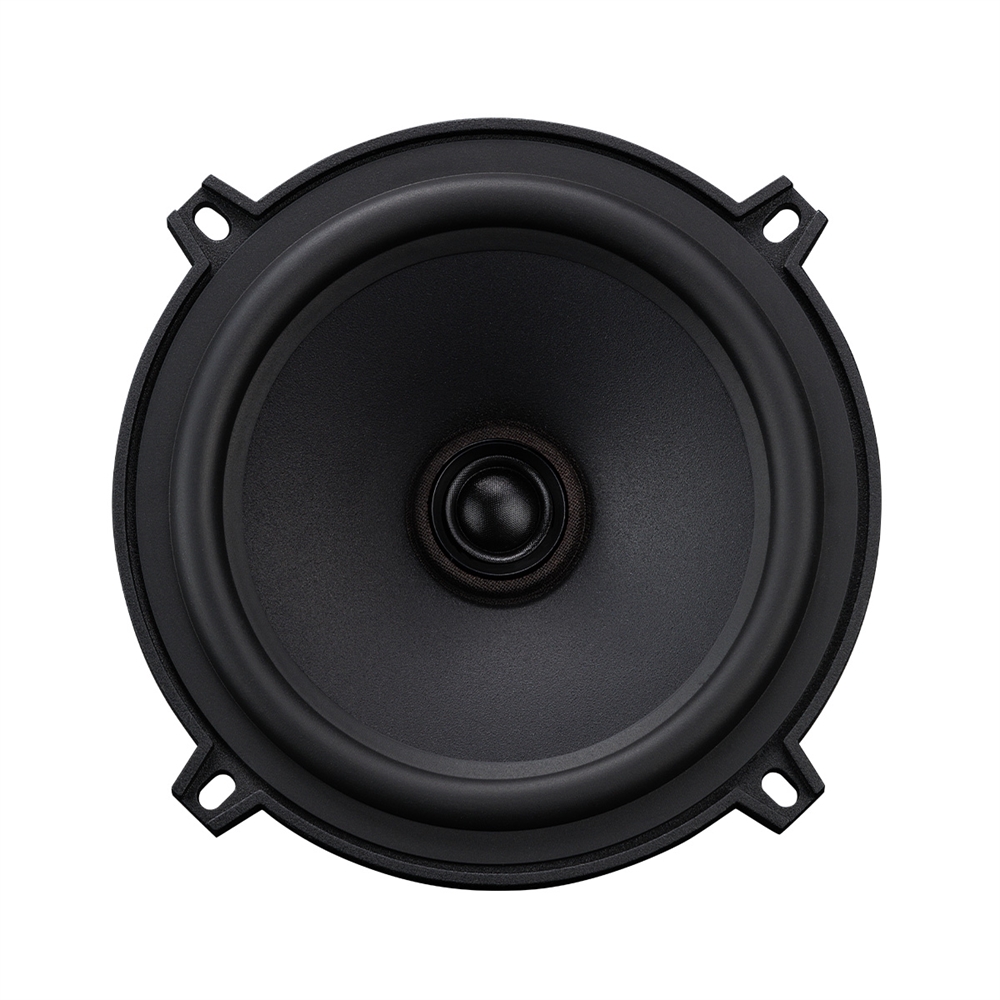

A coaxial speaker system is always the best solution for precise spatial music reproduction. The GRAVITY coaxials go one step further by mounting the tweeter at the same height as the woofer cone. This design principle counteracts the time difference between the two individual cones and improves the phase of the overall music signal.
The new CRYSTALGRAIN compound cone is responsible for the warmth of the GRAVITY sound. It combines the high rigidity and damping effect of paper with the direct step response of the quartz crystals attached to the top. The 13 mm tweeter with its wafer-thin fabric dome tweeter also impresses with its exceptional brilliance.

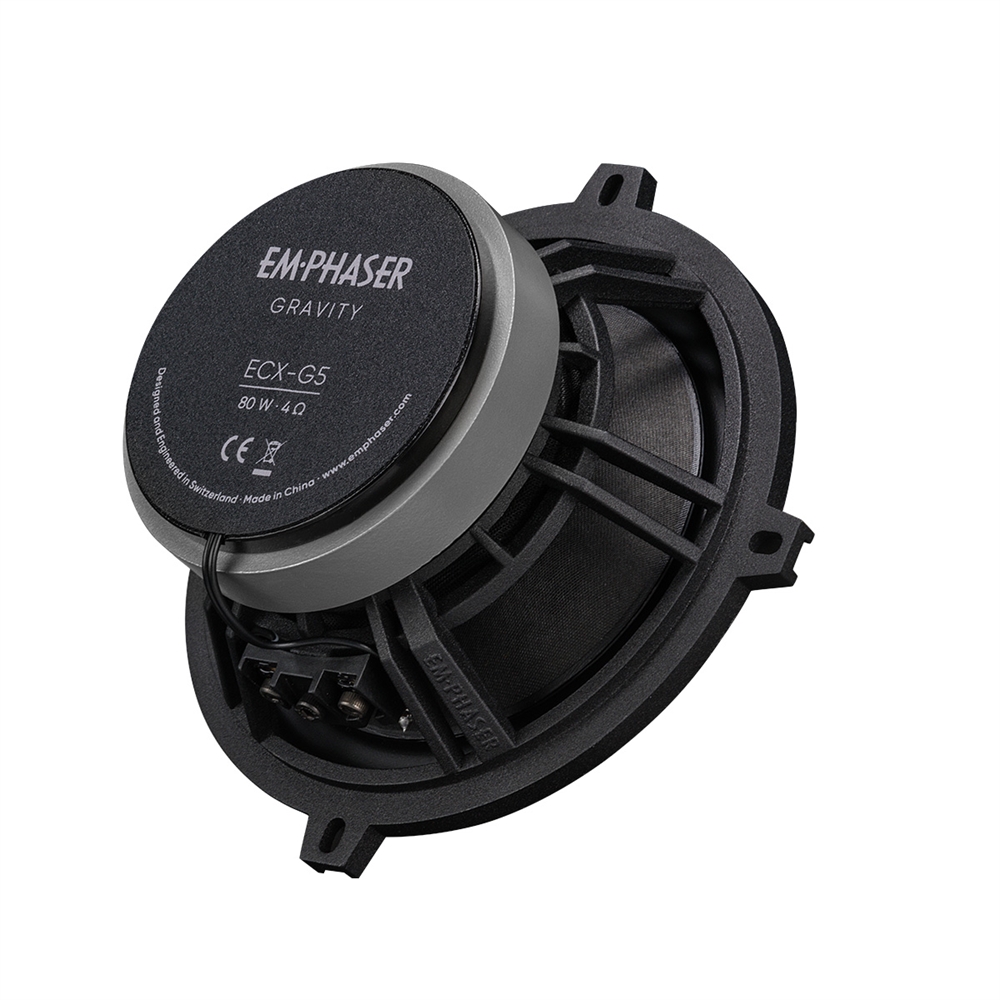

The carefully selected components are supported by the minimalistically designed EMPHASER FlowMax die-cast aluminum basket. The very open construction with its filigree struts gives the sound emitted from the rear maximum freedom and a minimum of unwanted reflective surfaces that affect the sound. And despite its filigree design, the construction offers maximum stability. Another innovation is the new EMPHASER screw terminal: although very solid, it takes up very little space and ensures reliable signal transmission thanks to the force-fit connection using solid hexagon screws and gold-plated contact surfaces.



GRAVITY is the latest embodiment of our quest for perfection - experience a great sound experience with the EMPHASER ECX-G5 2-way coaxial speaker.



Main features

13 cm coaxial speaker
Low-midrange driver with EMPHASER CRYSTALGRAIN compound cone
EMPHASER FlowMax aluminium die-cast basket with optimized temperature management
Strontium Ferrite Magnet
Butyl rubber bead
Two-layer copper wire voice coil wound on a temperature-resistant aluminum voice coil former
Durable Connex centering spider with woven voice coil feed line
13 mm tweeter with fabric dome tweeter
EMPHASER screw terminal with gold-plated contact surfaces
Technical specifications

Rated power:80 W RMS
Nominal impedance: 4 Ohm
Frequency response: 85 Hz - 22 kHz
Sensitivity 1W/1m: 87 dB
Mounting diameter: 116 mm
Installation depth: 60 mm
Scope of delivery:

2 pieces coaxial speakers
Loudspeaker cover optional: ESP-GR5
