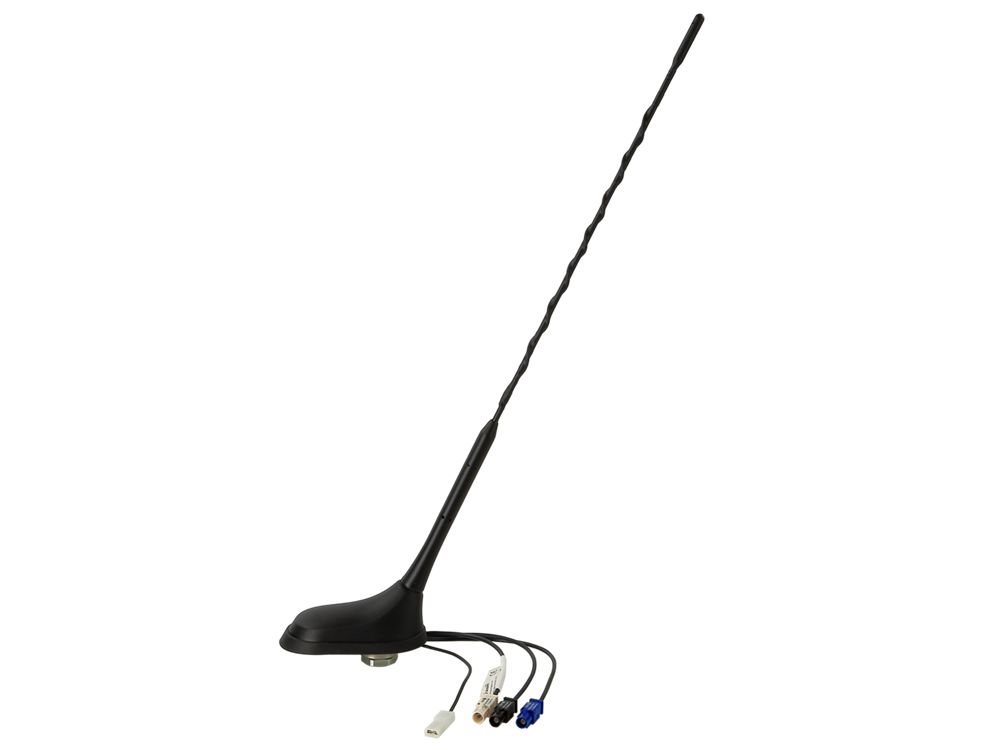

CALEARO TRI-DAB AM/FM-GPS-DAB/DAB+ 60°

Roof antenna AM/FM DAB/DAB+ GNNS (GPS/GLONA SS/Galileo/Navstar)

Style 16V
Reception Mode:
AM/FM
DAB/DAB+
GNSS

Installation:
installation point: roof rear
drill hole round: 19mm
drill hole square: 15 mm x 15 mm
rod length: 41cm
rod inclination: 60°
rod type: antinoise
thread: M6

Dimensions:
total high: 450 mm
antenna socket: L = 98 mm / B = 50 mm

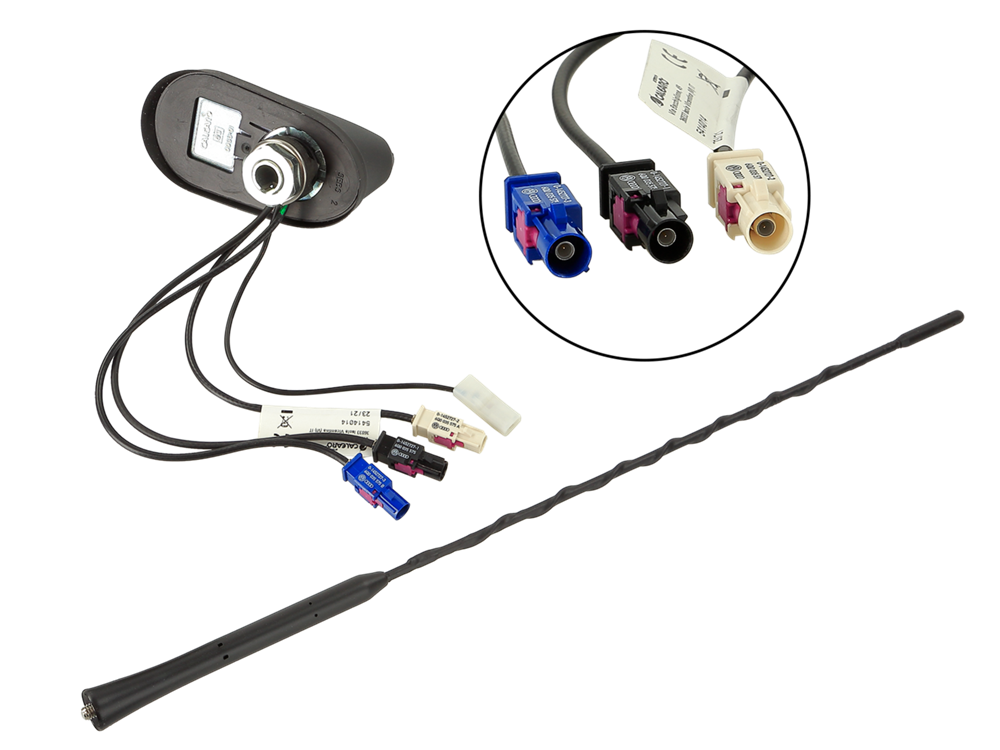

Connections:
AM/FM: Fakra B(m) white RG175 / 180 mm
DAB/DAB+: Fakra A(m) black RG175/ 200 mm
GNSS: Fakra C(m) blue RG175 /220 mm
power supply external: blade terminal 6,3 mm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87,5 MHz - 108 MHz
DAB/DAB+: 174 MHz - 240 MHz
GNSS: 1559 MHz - 1065 MHz

Benefit (dB):
DAB/DAB+: 12dBi
GNSS: 32dBi

Power supply:
AM/FM: 12V external
DAB/DAB+: 12V external
GNSS: 3V - 5V Phantom

Power consumption:
AM/FM: 75 mA max
DAB/DAB+: 75 mA max
GNSS: 45 mA max

VSWR:
AM: <5:1
FM: <8:1
DAB/DAB+: <5:1
GNSS: 2:1
