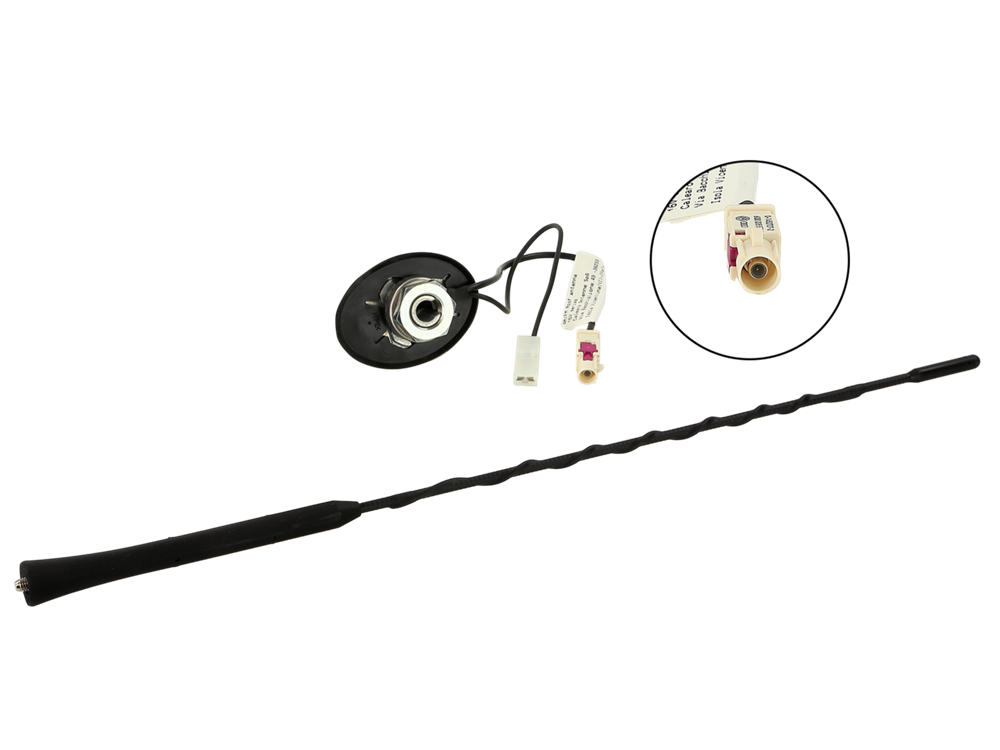

CALEARO TAG ANTENNE 12V UNIVERSAL ECT., 60º

Roof antenna AM/FM

Style 16V

Reception Mode:
AM/FM

Installation:
installation point: roof rear
drill hole round: 19 mm
drill hole square: 15 mm x 15 mm
rod length: 405 mm
rod inclination: 60°
rod type: glatt
thread: M5

Dimensions:
total high: 440 mm
antenna socket: L = 60 mm / B = 43 mm

Connections:
AM/FM: Fakra B(m) white RG174 / 180 mm
power supply external: blade terminal 6,3 mm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87,5 MHz - 108 MHz

Power supply:
AM/FM: +12V external

Power consumption:
AM/FM: 60 mA max
