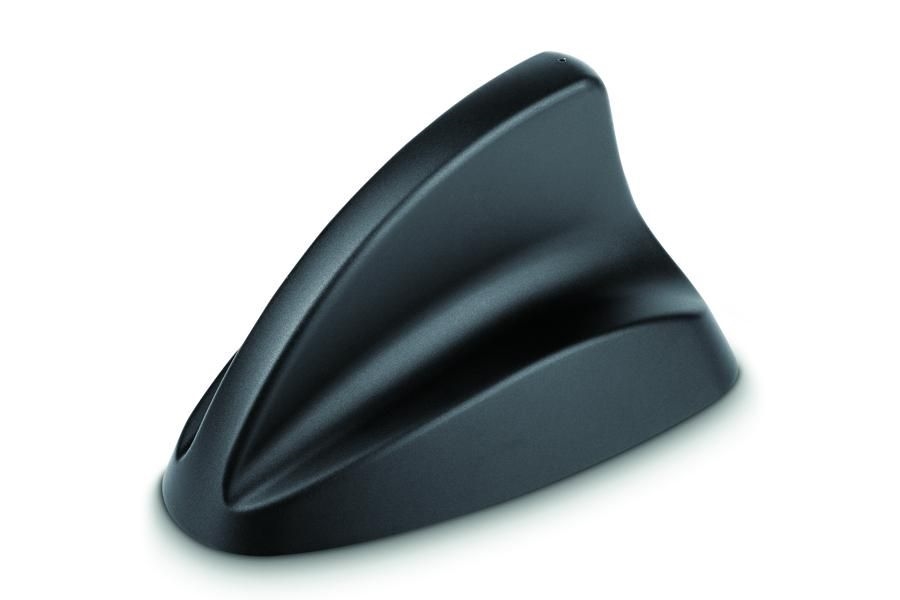

Roof antenna AM/FM TV/DVB-T
Calearo
Style: Shark II
Note:
Reception mode:
AM/FM
TV/DVB-T/DVB-T2
Installation:
installation point: roof rear
drill hole round: 19 mm
drill hole square: 15 mm x 15 mm
tightning torque: 6,5 nm +/- 20%
Dimensions:
antenna socket: L = 117 mm / W = 76 mm / H = 62 mm

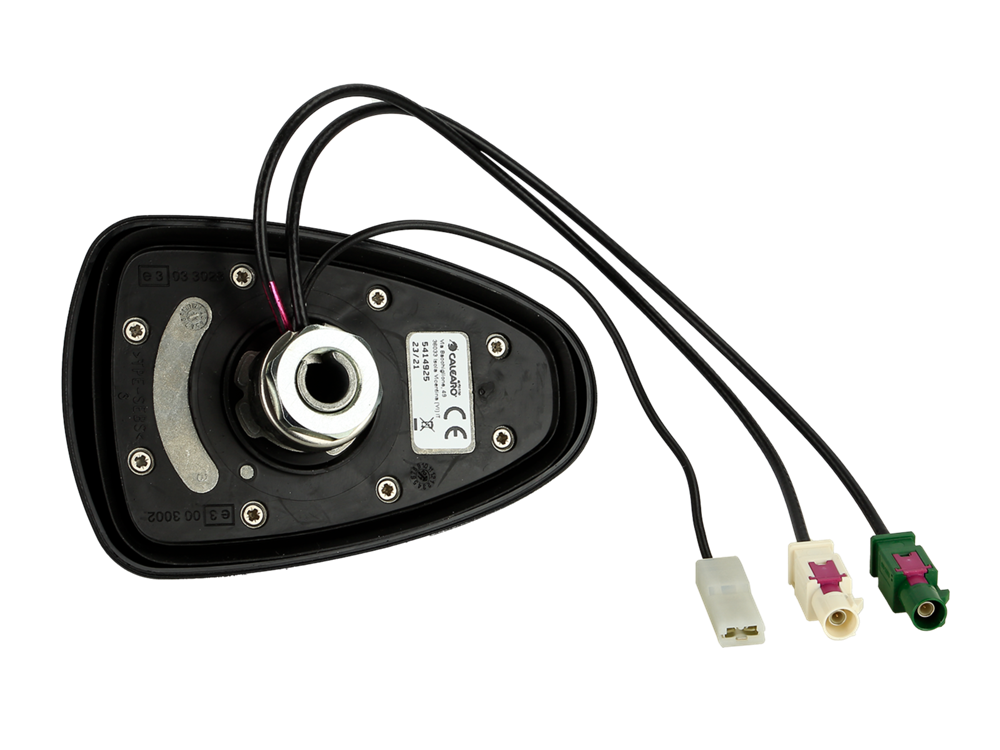

Connections:
AM/FM: Fakra B(m) white RG174 / L=250 mm
TV/DVB-T/DVB-T2: Fakra E(m) green RG174 / L=250 mm
power supply external: blade terminal 6,3 mm
Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87,5 MHz - 108 MHz
TV/DVB-T/DVB-T2:
Band III 174 - 230 MHz
Band IV/V 470 - 790 MHz
Benefit (dB):
TV/DVB-T/DVB-T2: 4dBi
Power supply:
AM/FM 12V external / 12V phantom power
TV/DVB-T/DVB-T2: 12V external / 12V phantom power
Power consumption:
AM/FM: 50 mA
TV/DVB-T/DVB-T2: 40 mA max
Impedance:
AM/FM: 50 Ohm
TV/DVB-T/DVB-T2: 50 Ohm
VSWR:
TV/DVB-T/DVB-T2: <4
