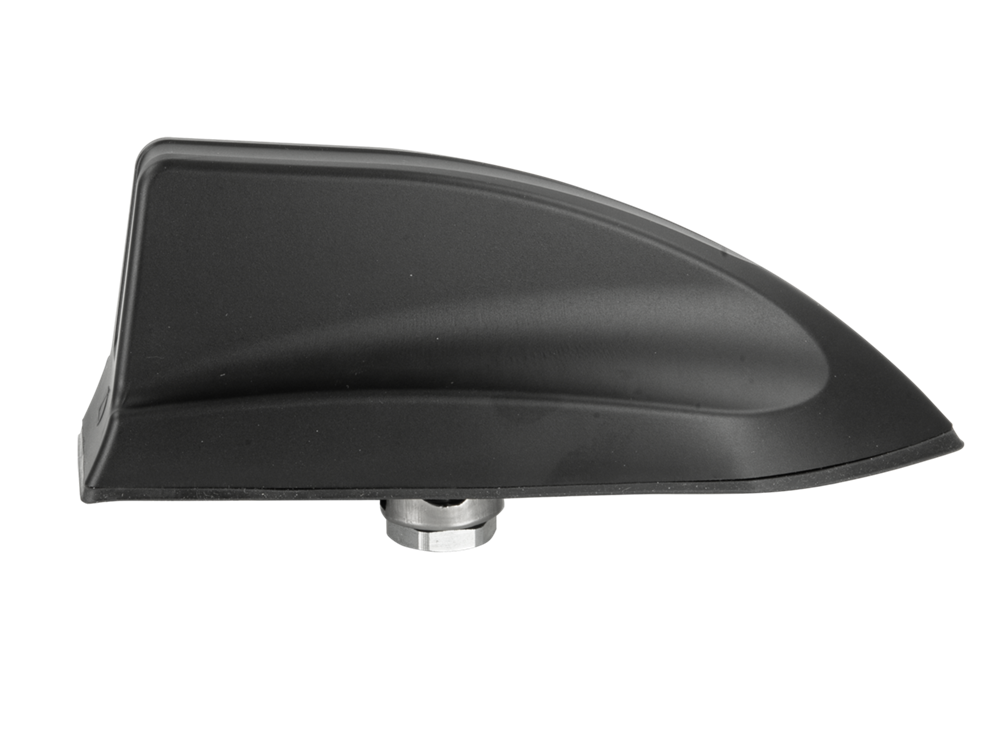

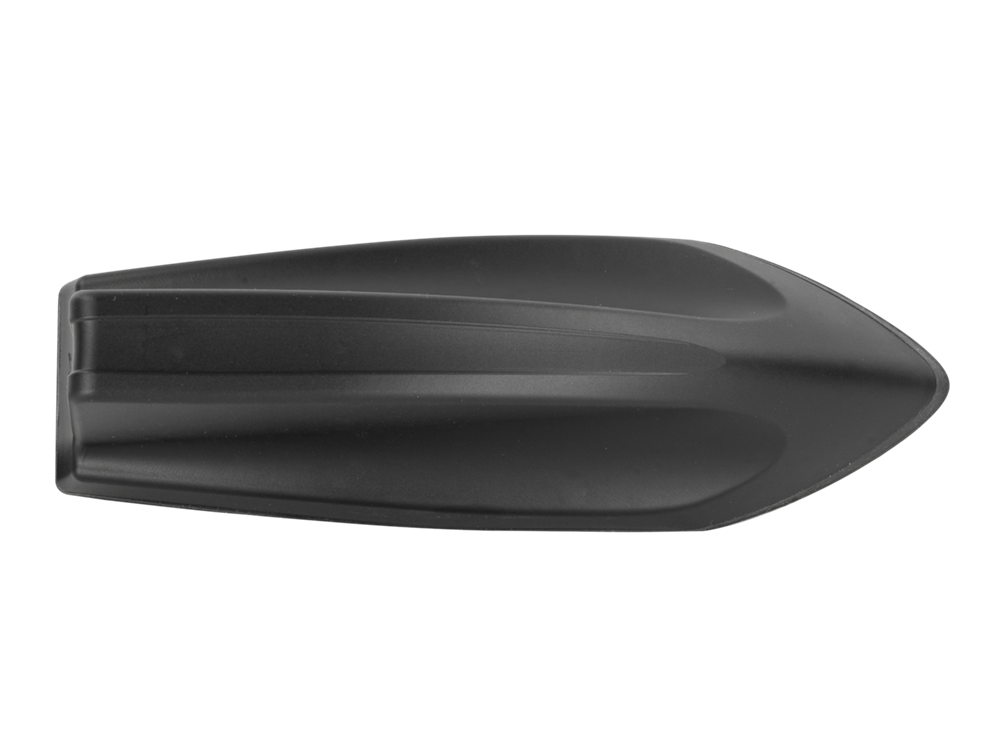

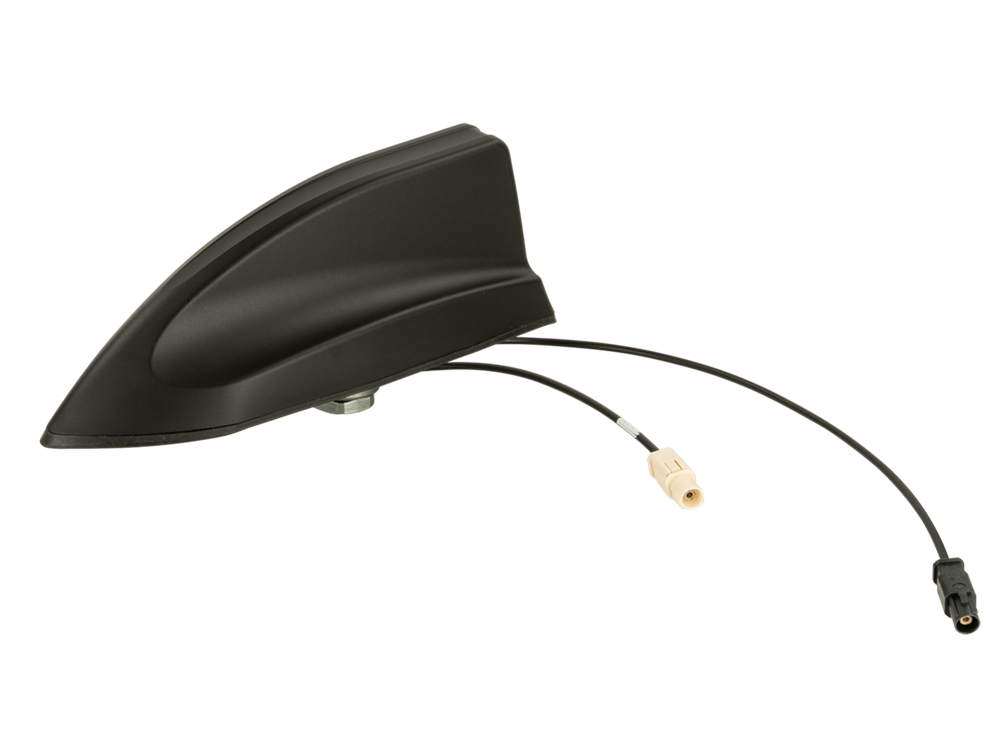

CALEARO SHARK 3 COMBI-DAB AM-FM/DAB-DAB+

Roof antenna AM/FM DAB+

Calearo

Style: Shark III

Reception mode:
AM/FM
DAB+

Installation:
installation point: roof rear
drill hole round: 17 mm - 23 mm max.
tightning torque: 7 nm +/- 10%

Dimensions:
antenna socket: L = 192 mm / B = 63 mm / H = 67 mm

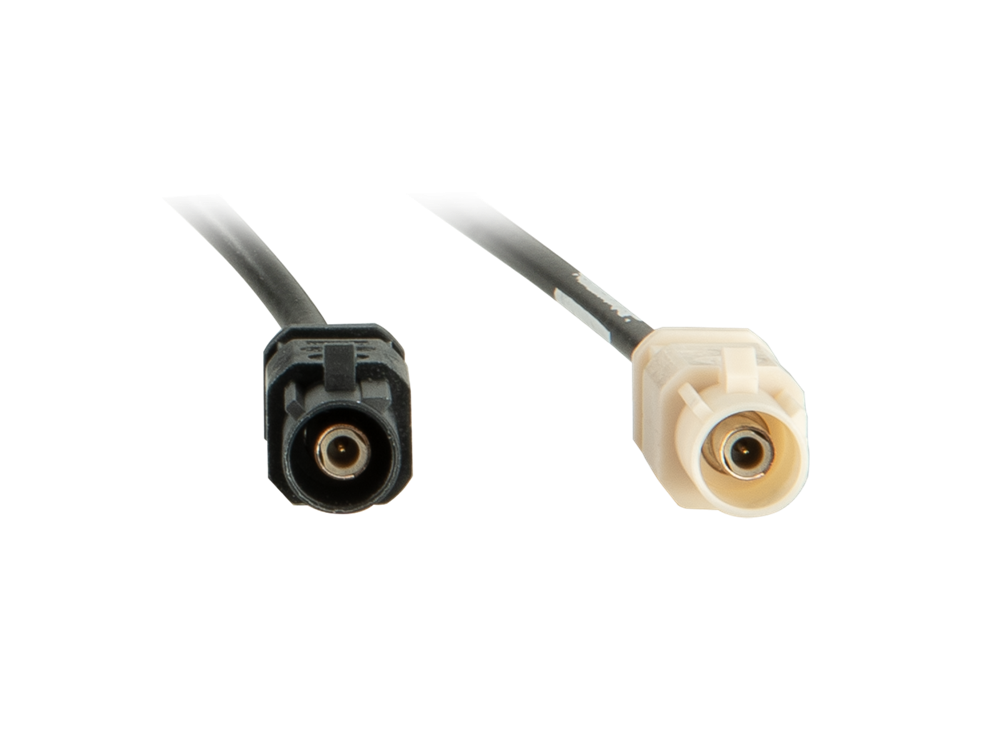

Connections:
AM/FM: Fakra B(m) white RG174 / L=210 mm
DAB+: Fakra A(m) black RG174 / L=310 mm

Frequency range:
AM: 525 kHz - 1710 kHz
FM: 87,5 MHz - 108 MHz
DAB+: 174 MHz - 240 MHz

Benefit(dB):
AM(FM: 0dbi
DAB+: 2dBi

Power supply:
AM/FM: +12V phantom power
DAB+: +12V phantom power

Power consumption:
AM/FM: 63 mA max
DAB+: 40 mA max

Impedance:
AM/FM: 50 Ohm
DAB+: 50 Ohm

VSWR:
AM/FM: <2:1
DAB+: <3:1

Noise figure:
FM: 2,8 db
DAB+: 2,4 db

Polarization:
FM: Linear-Vertikal
DAB+: Linear-Vertikal
