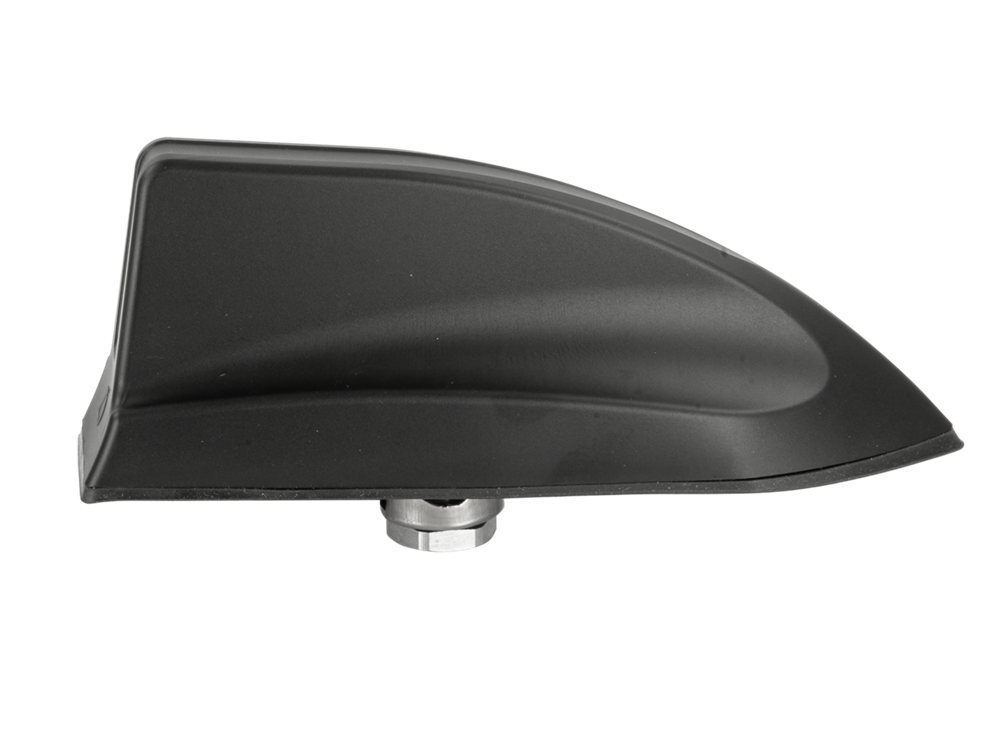

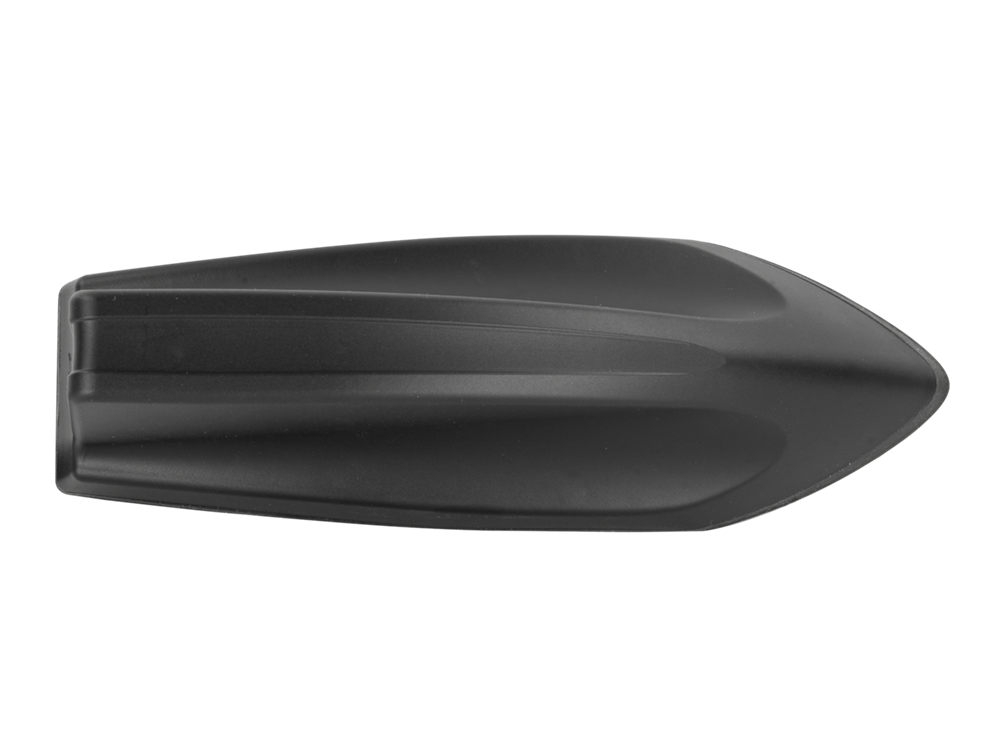

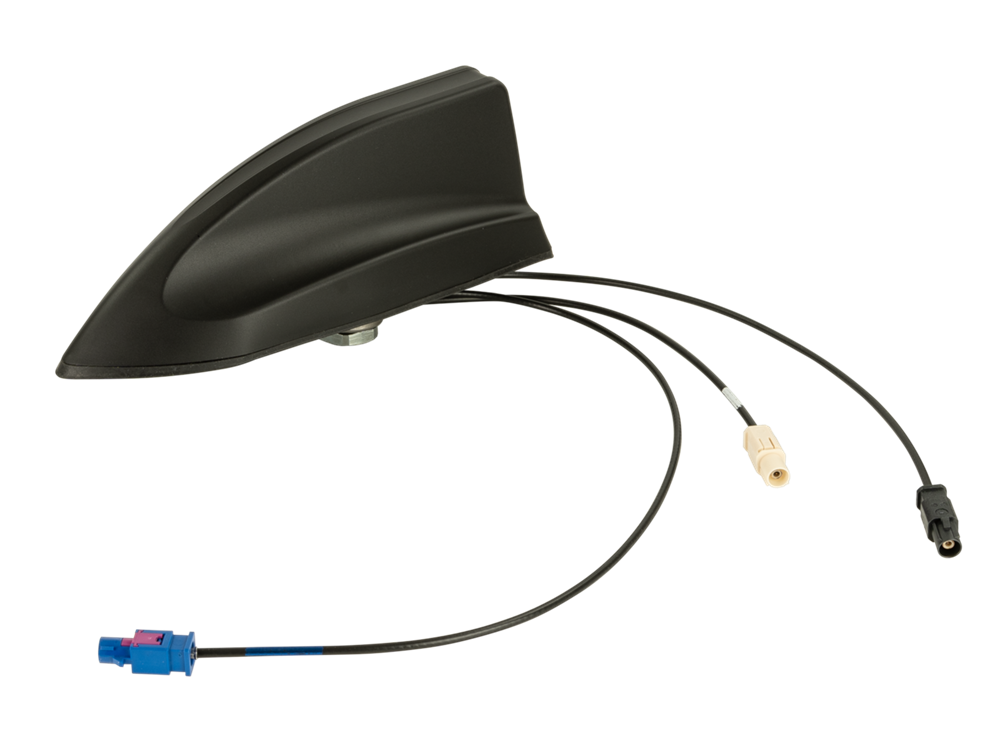

CALEARO SHARK 3 TRI-DAB AM/FM-GPS-DAB/DAB+ (3xFAKRA HAN)

Roof antenna AM/FM DAB+ GNNS (GPS/GLONA SS/Galileo/Navstar)

Calearo

Style: Shark III

Reception Mode:
AM/FM
DAB+
GNSS

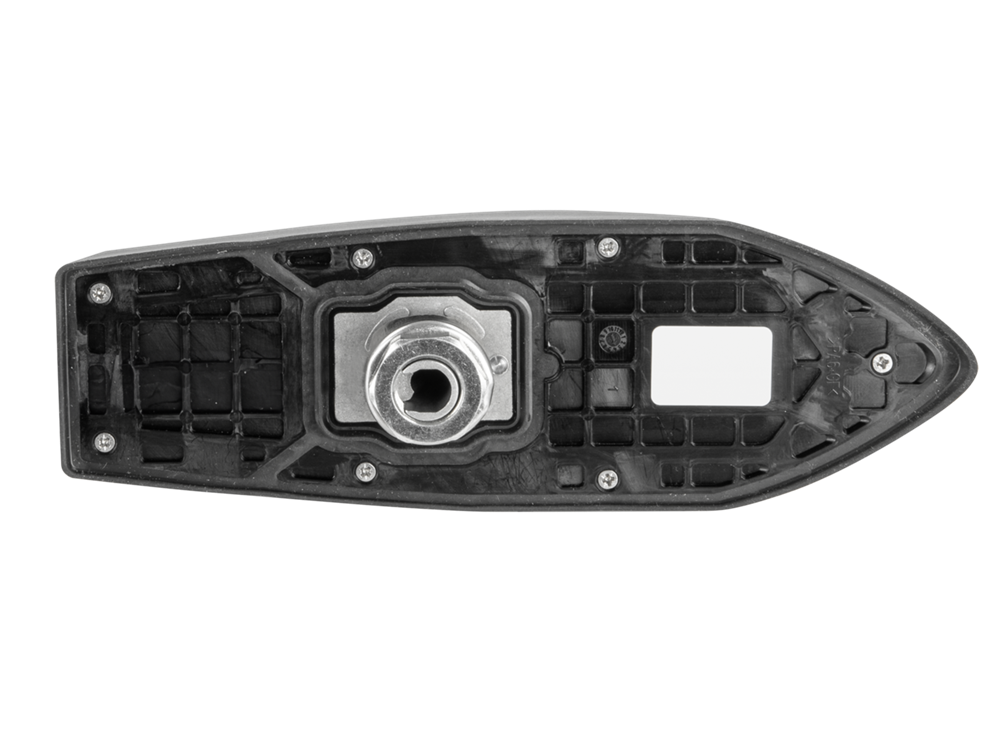

Installation:
installation point: roof rear
drill hole round: 17mm

Dimensions:
antenna socket: L = 192 mm / W = 62 mm / H = 67 mm

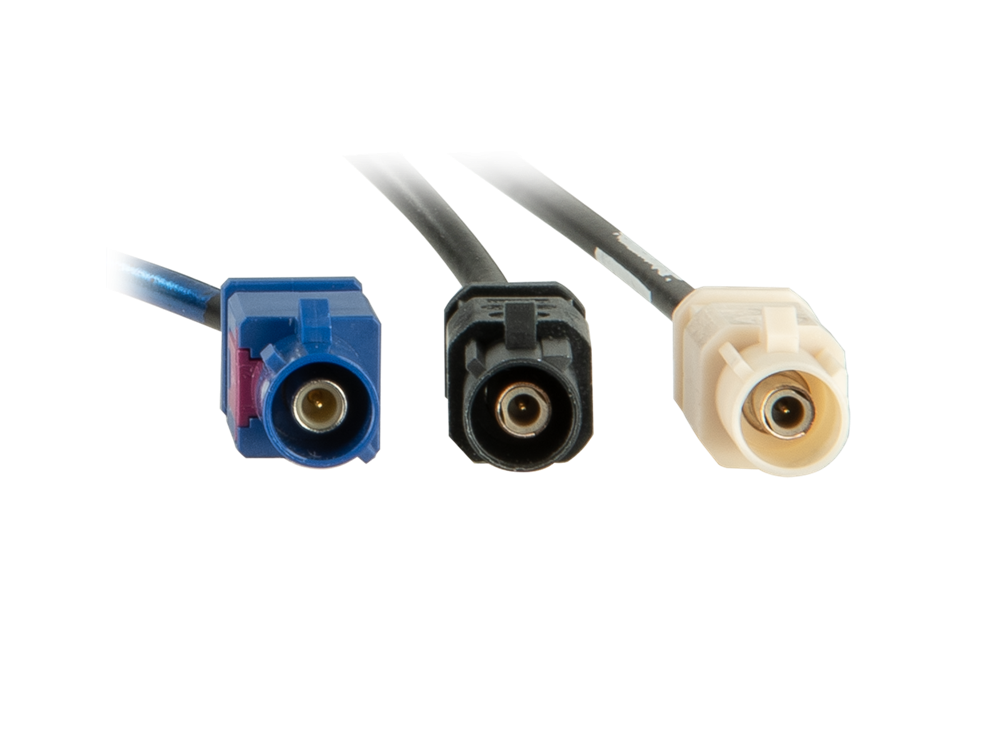

Connections:
AM/FM: Fakra B(m) white RG174 / L=210 mm
DAB+: Fakra A(m) black RG174 / L=310 mm
GNSS: Fakra C(m) blue RG174 / L=410 mm

Frequency range:
AM: 525 kHz - 1710 kHz
FM: 87,5 MHz - 108 MHz
DAB+: 174 MHz - 240 MHz
GNSS: 1559 MHz - 1065 MHz

Benefit (dB):
AM/FM: 0 dbi
DAB+: 6dBi
GNSS: 28dBi

Power supply:
AM/FM: +12V phantom power
DAB+: +12V phantom power
GNSS: +3V - +5V phantom power

Power consumption:
AM/FM: 63 mA max
DAB+: 40 mA max
GNSS: 31 mA max

Impedance:
AM/FM: 50 Ohm
DAB+: 50 Ohm
GNSS: 50 Ohm
LTE: 50 Ohm

VSWR:
FM: <2:1
DAB+: <3:1
GNSS: 1,7:1

Noise figure:
FM: 2,8 db
DAB/DAB+: 2,4 db
GNSS: 1,45 db

Polarization:
FM: Linear-Vertikal
DAB+: Linear-Vertikal
GNSS: Circular (RHCP)
