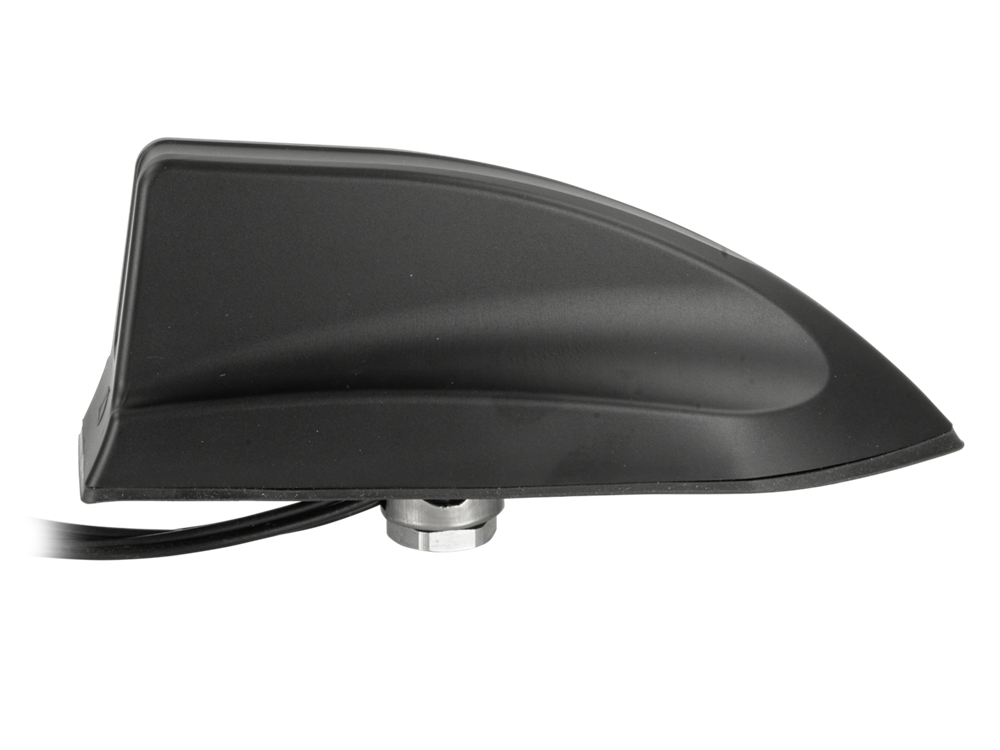

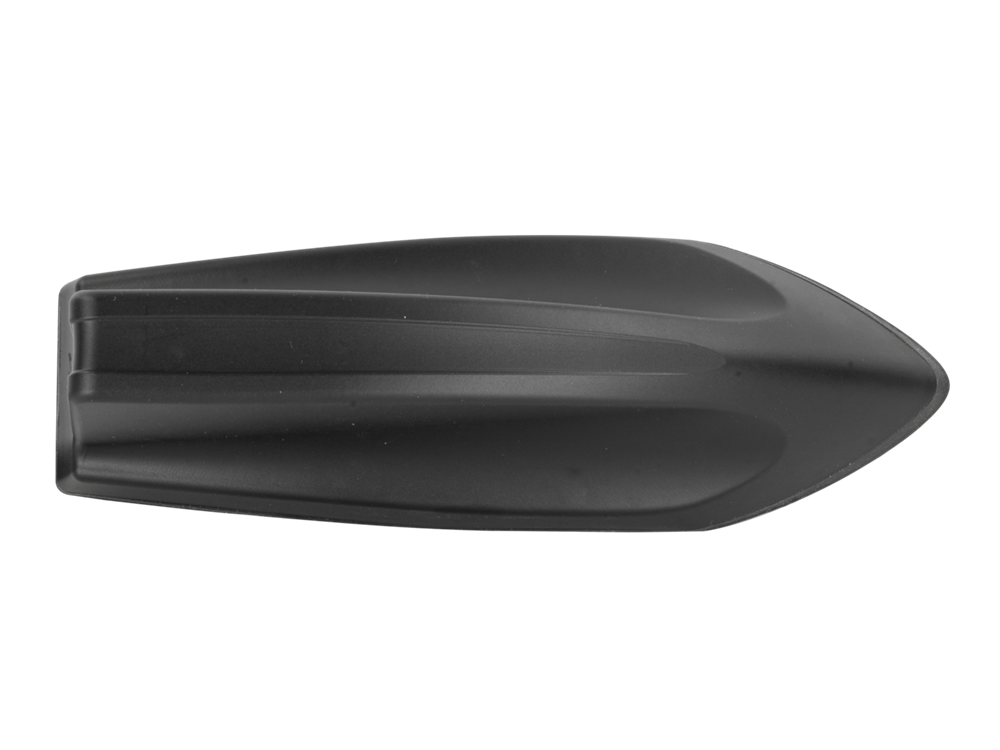

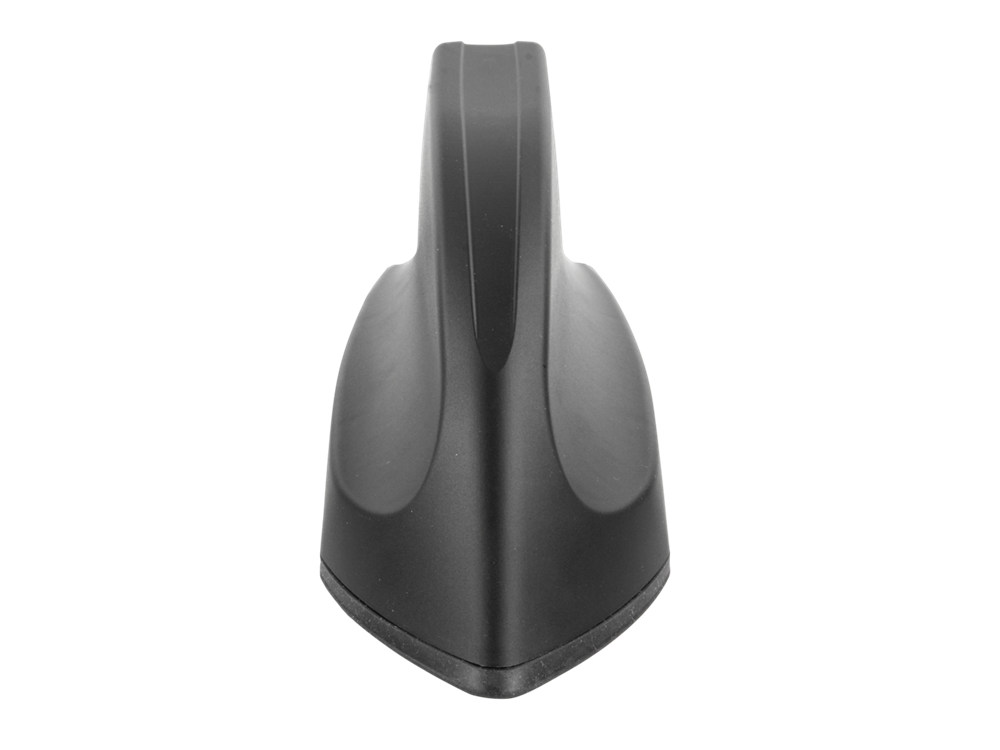

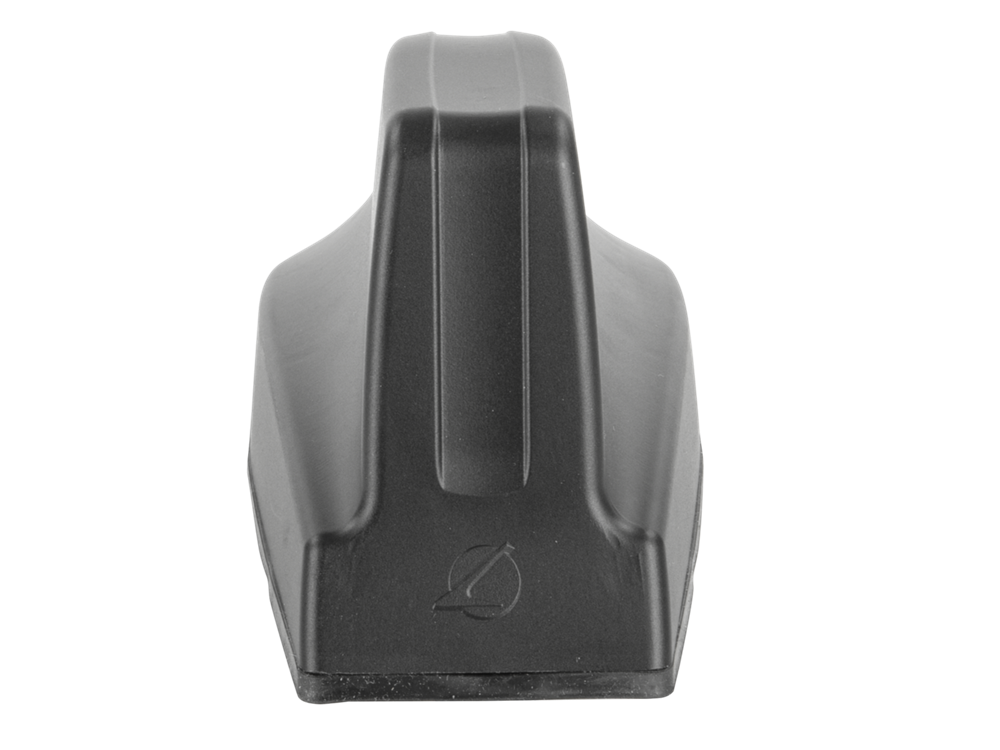

CALEARO SHARK 3 QUAD-DAB AM/FM-GPS-DAB/DAB+/LTE (4xFAKRA HAN)

Technical specification
AM/FM connector: FAKRA HAN HVID
GPS connector: FAKRA HAN BLÅ
DAB connector: FAKRA HAN GRÅ
Calearo

Style: Shark III

Reception Mode:
AM/FM
DAB/DAB+
GNSS
LTE

Installation:
installation point: roof rear
drill hole round: 17mm

Dimensions:
antenna socket: L = 192 mm / W = 62 mm / H = 67 mm

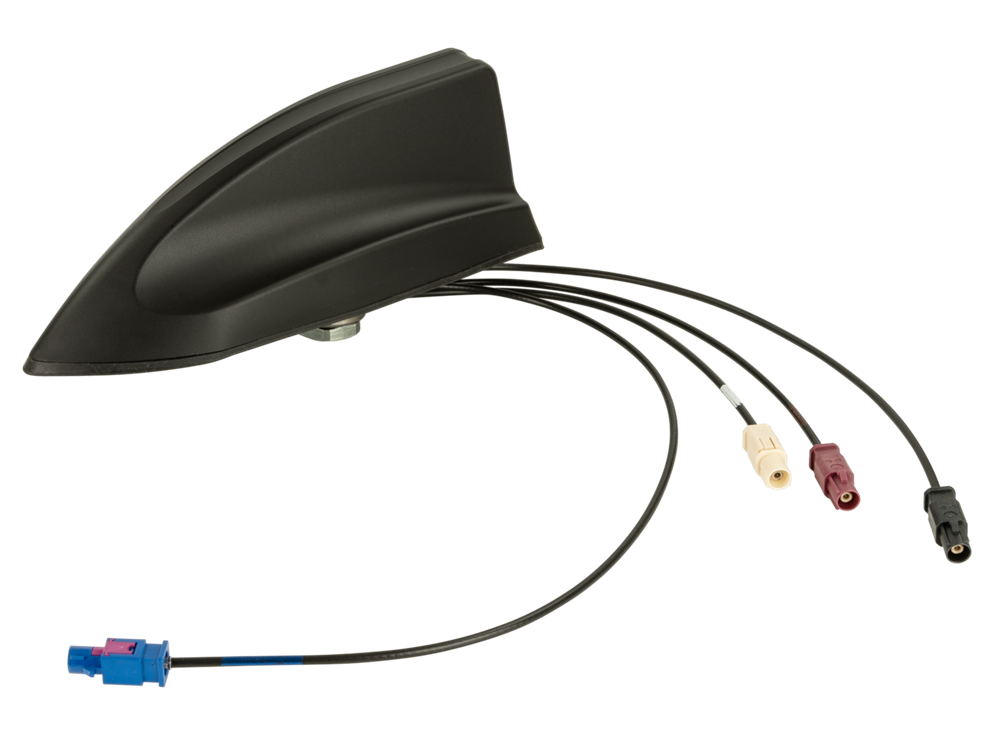

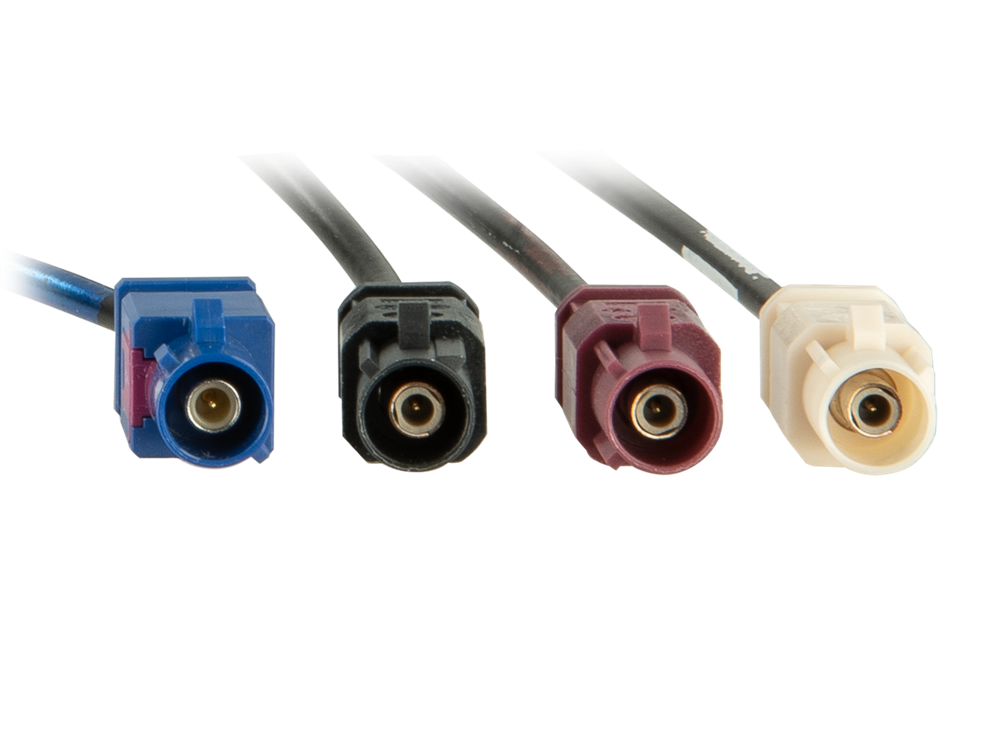

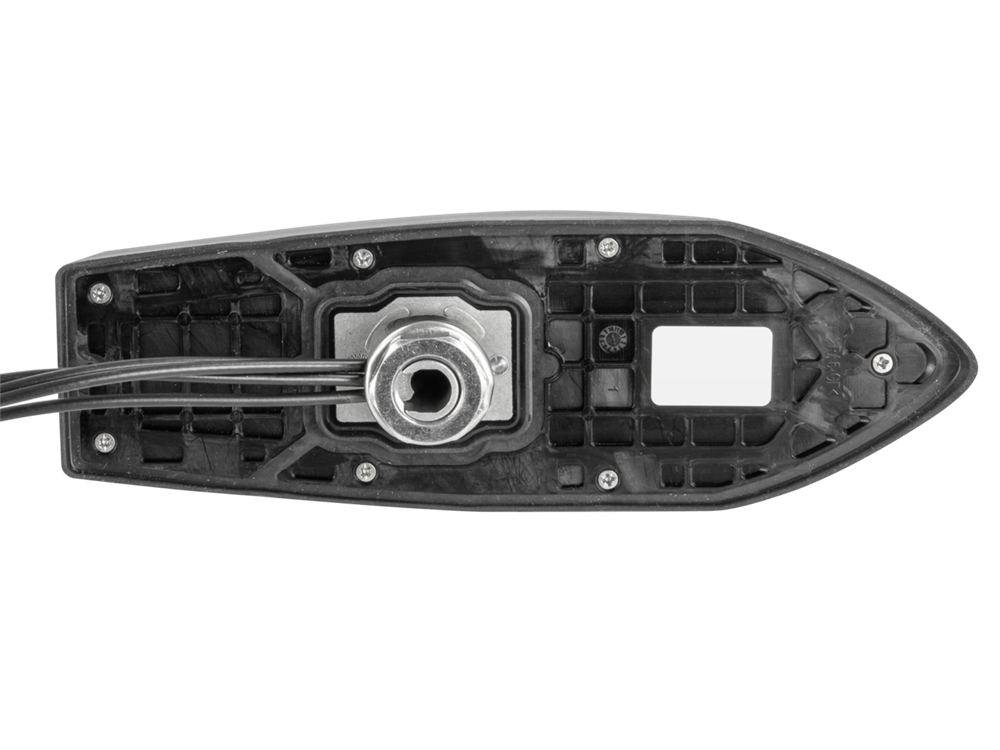

Connections:
AM/FM: Fakra B(m) white RG174 / L=200 mm
DAB/DAB+: Fakra A(m) black RG174 / L=300 mm
GNSS: Fakra C(m) blue RG174 / L=400 mm
LTE: Fakra D(m) bordeaux RG174 / L=250 mm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87,5 MHz - 108 MHz
DAB/DAB+: 174 MHz - 240 MHz
GNSS: 1559 MHz - 1065 MHz
LTE: 698 MHz - 960 MHz / 1710 MHz - 2160 MHz / 2490 MHz - 2690 MHz

Benefit (dB):
DAB/DAB+: 6dBi
GNSS: 28dBi
LTE: 4dBi peak / -4dBi average

Power supply:
AM/FM: 12V phantom power
DAB/DAB+: 12V phantom power
GNSS: 3V - 5V phantom power

Power consumption:
AM/FM: 63 mA max
DAB/DAB+: 40 mA max
GNSS: 31 mA max

Impedance:
AM/FM: 50 Ohm
DAB/DAB+: 50 Ohm
GNSS: 50 Ohm
LTE: 50 Ohm

VSWR:
FM: <2:1
DAB/DAB+: <3:1
GNSS: 1,7:1
LTE: 3:1
