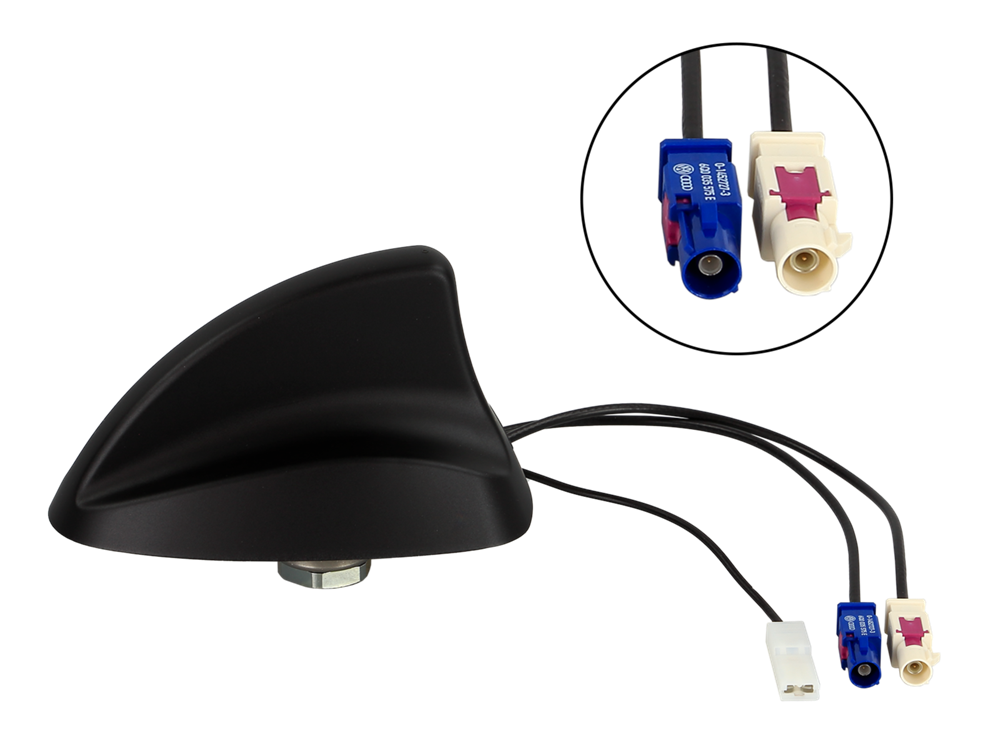

CALEARO SHARK 2 AM/FM-GPS

Roof antenna AM/FM GNSS (GPS/GLONASS/Galileo/Navstar)

Style Shark II
Reception mode:
AM/FM
GNNS

Installation:
installation point: roof rear
drill hole round: 19 mm
drill hole square: 15 mm x 15 mm
tightning torque: 6,5 nm +/- 20%

Dimensions:
antenna socket: L = 117 mm / W = 76 mm / H = 62 mm

Connections:
AM/FM: Fakra B(f) white RG174 / 250 mm
GNSS: Fakra C(f) blue RG174 / 300 mm
power supply external: blade terminal 6,3 mm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87,5 MHz - 108 MHz
GNSS: 1559 MHz - 1065 MHz

Benefit (dB):
GNSS: 28dBi

Power supply:
AM/FM 12V external / 12V phantom power
GNNS 3V - 5V Phantom

Power consumption:
AM/FM 50 mA
DAB/DAB+ 30 mA max
GNSS 30 mA max

Impedance:
AM/FM: 50Ohm
GNSS: 50 Ohm

VSWR:
GNSS: 1,7:1

Noise figure:
FM: 3,5 db
GNSS: 1,4 db

Polarization:
FM: Linear-Vertikal
GNSS: RHCP
